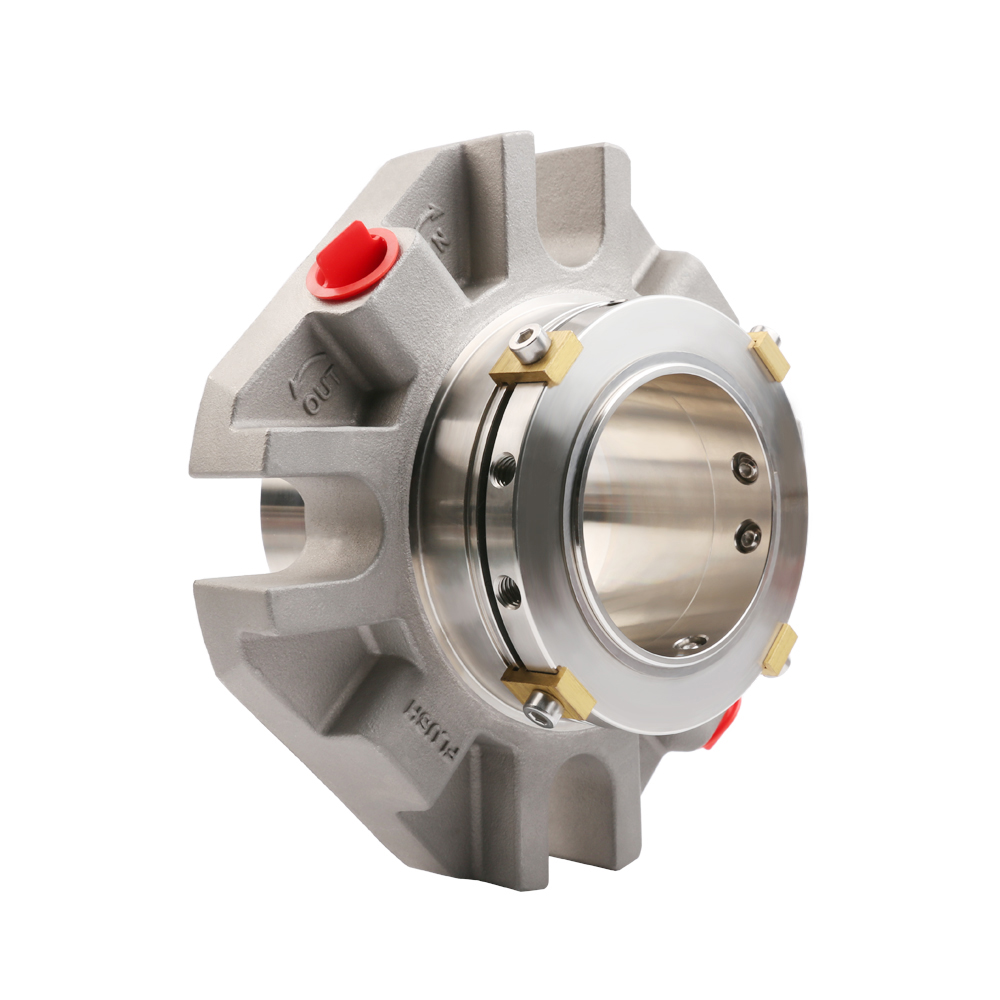

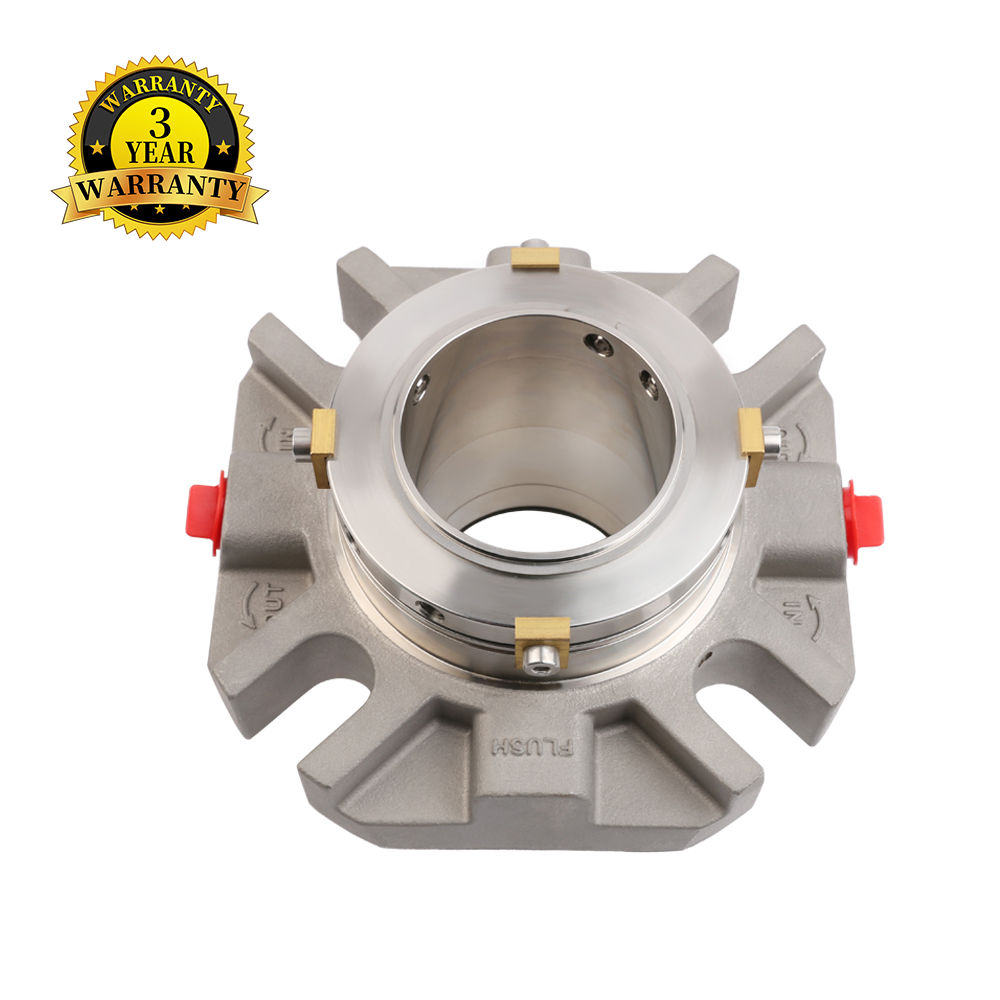

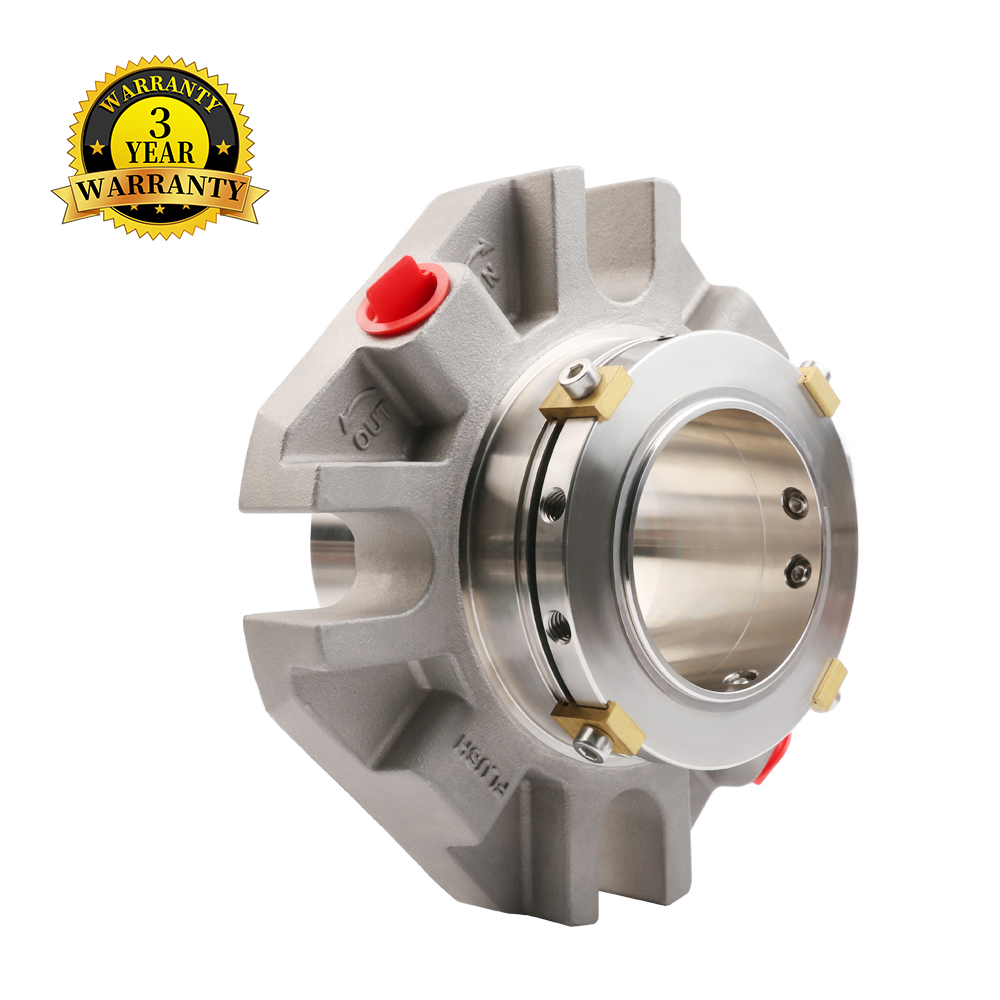

Product Description
TECHNICAL FEATURES
• Stationary face compensation technology.
• Solid seal structure reduces deformation at high temperature and low temperature conditions.
• Intergrated and Bi-directional diversion, sleeve with pump ring.
• High Speed limits, up to 220 degree. No seal face drop or displacement.
• Higher pressure limits, up to 25 bar.
• Wet Part in Duplex steel,904L ,Alloy 276 avaiable.
APPLICABLE CHAMBERS TYPE
•Applicable to ISO2858 standard chambers and other compact chambers
•Can be used as a containerized mechanical seal to replace packing
•Modular containerized design,suitable forgeneral working conditions
•Sizes range from 1.000 "to 4.000" (24mm~100mm)
TYPICAL INDUSTRIAL APPLICATIONS
•Chemical and Petrochemical Industry
•Oil, Gas and Energy Sector
•Water Treatment and Environmental Protection Engineering
•Pharmaceutical and Food & Beverage Industries
•Hazardous Chemicals and Specialized Industries
•Marine and Offshore Engineering
Table Description
RECOMMENDED PIPING PLANS
| Between seals | 52, 53A, 53B, 53C, 54 | |
PERFORMANCE CAPABILITIES
| Shaft diameter | 1.000 "to 4.000" (24mm~100mm) | |
| Pressure | ≤ 20 bar | |
| Temperature | -20 ° C ~ + 150 °C | |
| Sliding velocity | ≤ 20 m/s | |

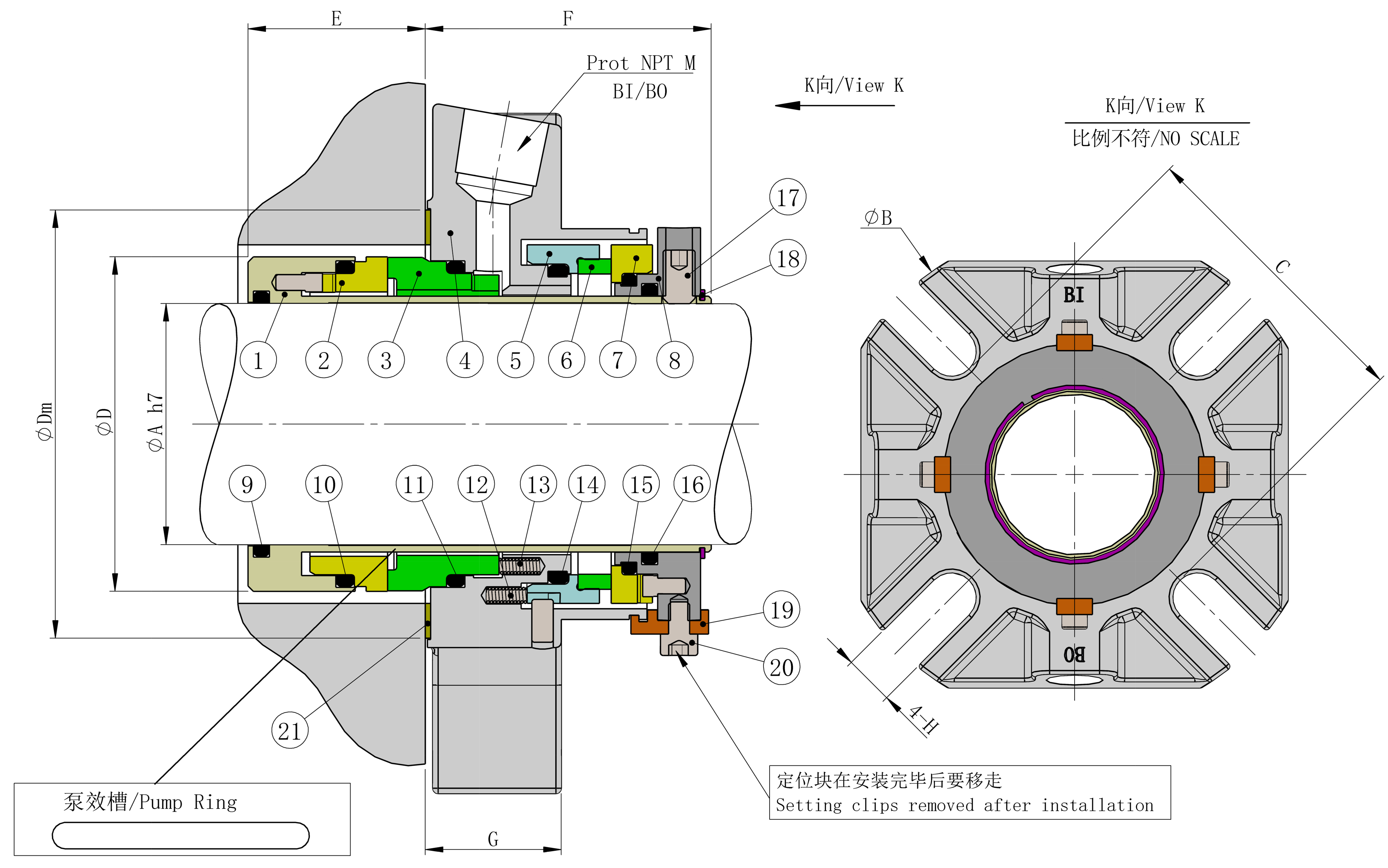

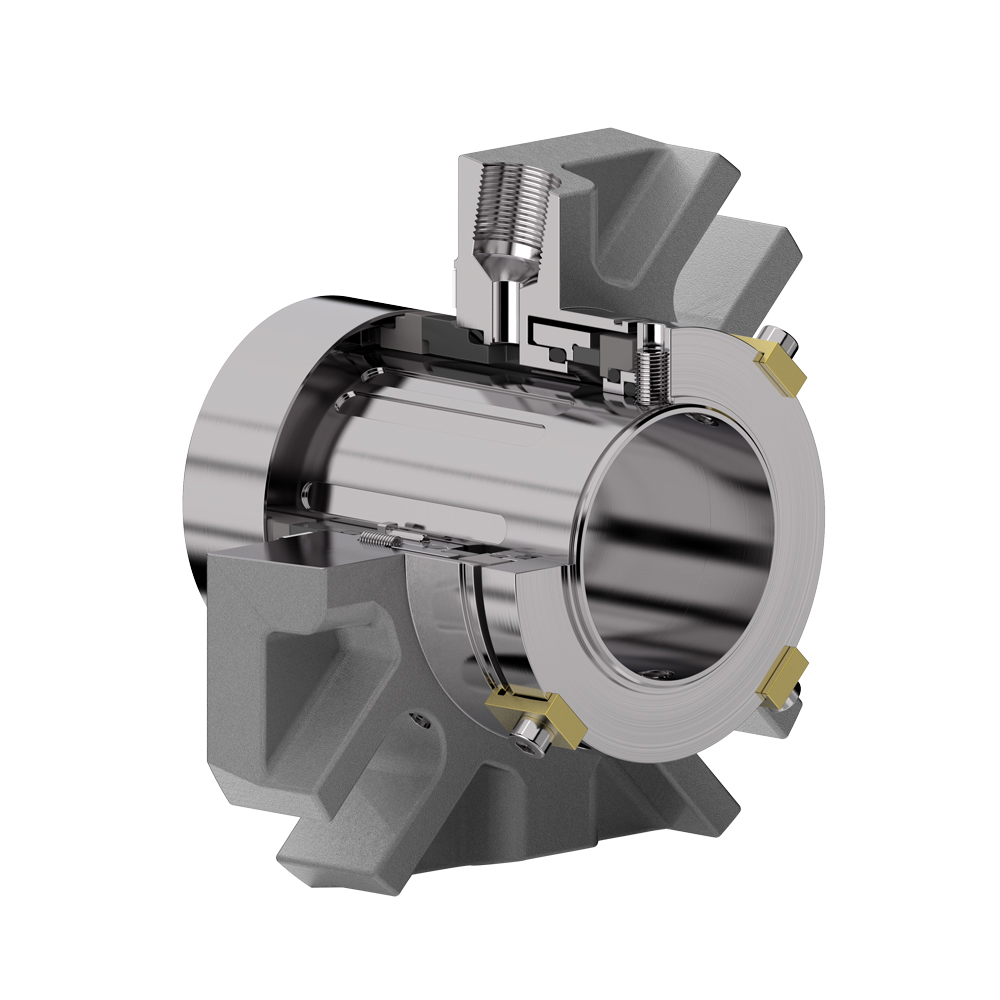

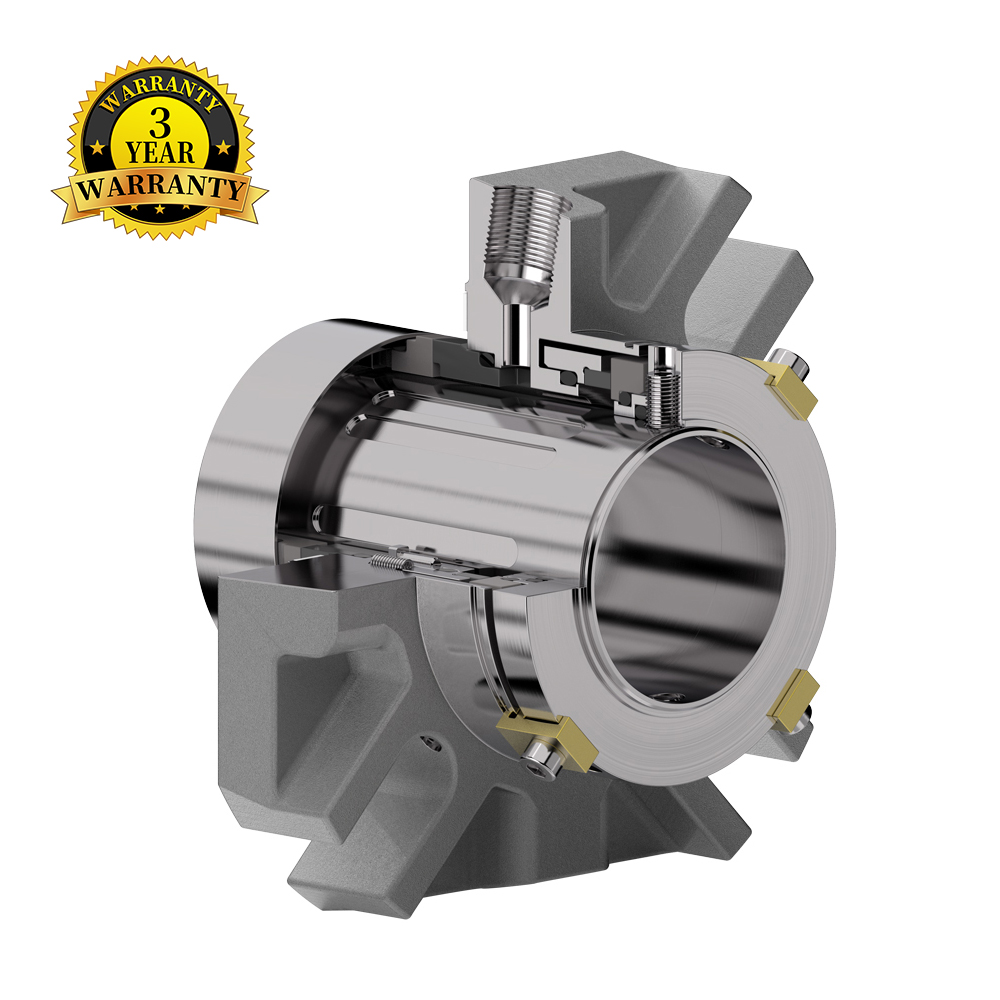

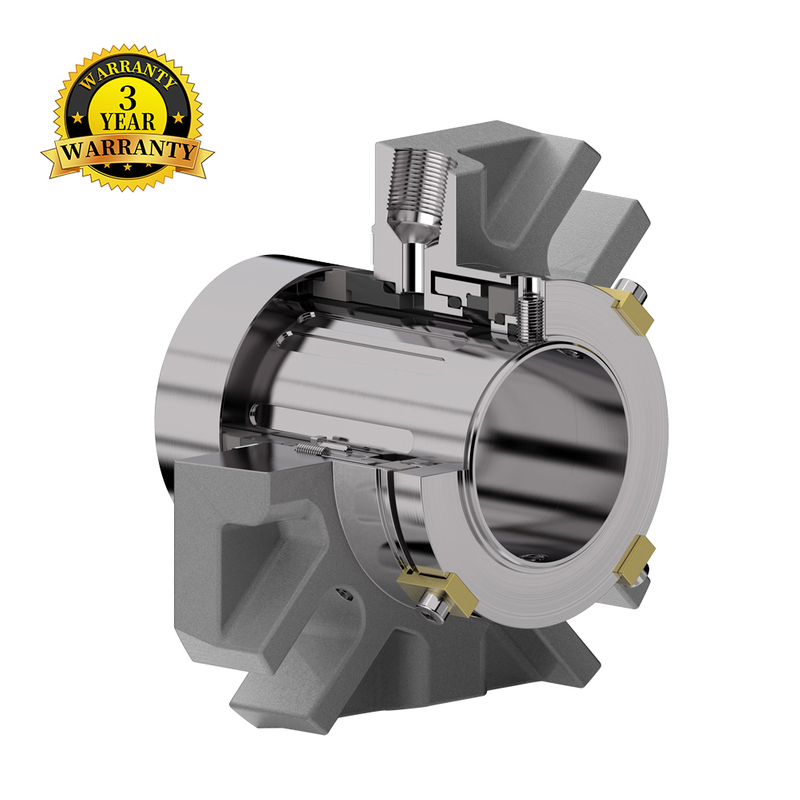

Product Structure Diagram & The comparison chart of standard material
| NO. | Name | Material |
| 1 | Shaft Sleeve | 316SS |
| 2 | Internal Rotary Face | SSIC/TC |
| 3 | Internal Stationary race | Carbon/SSIC/TC |
| 4 | Gland | 316SS |
| 5 | External Stationary Seat | 316SS |
| 6 | External Stationary Face | Carbon |
| 7 | External Rotary Face | TC |
| 8 | Clamp Ring | 316SS |
| 9,10,11 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 12,13 | SprIng | Alloy 276 |
| 14,15,16 | O-Ring | EPR/ Viton/Aflas/Kalrez |
| 17 | Drive Screw | 316SS |
| 18 | Circlip | 316SS |
| 19 | Setting Clip | Brass |
| 20 | Clip Screw | 316SS |
| 21 | Gasket | AF1 |
