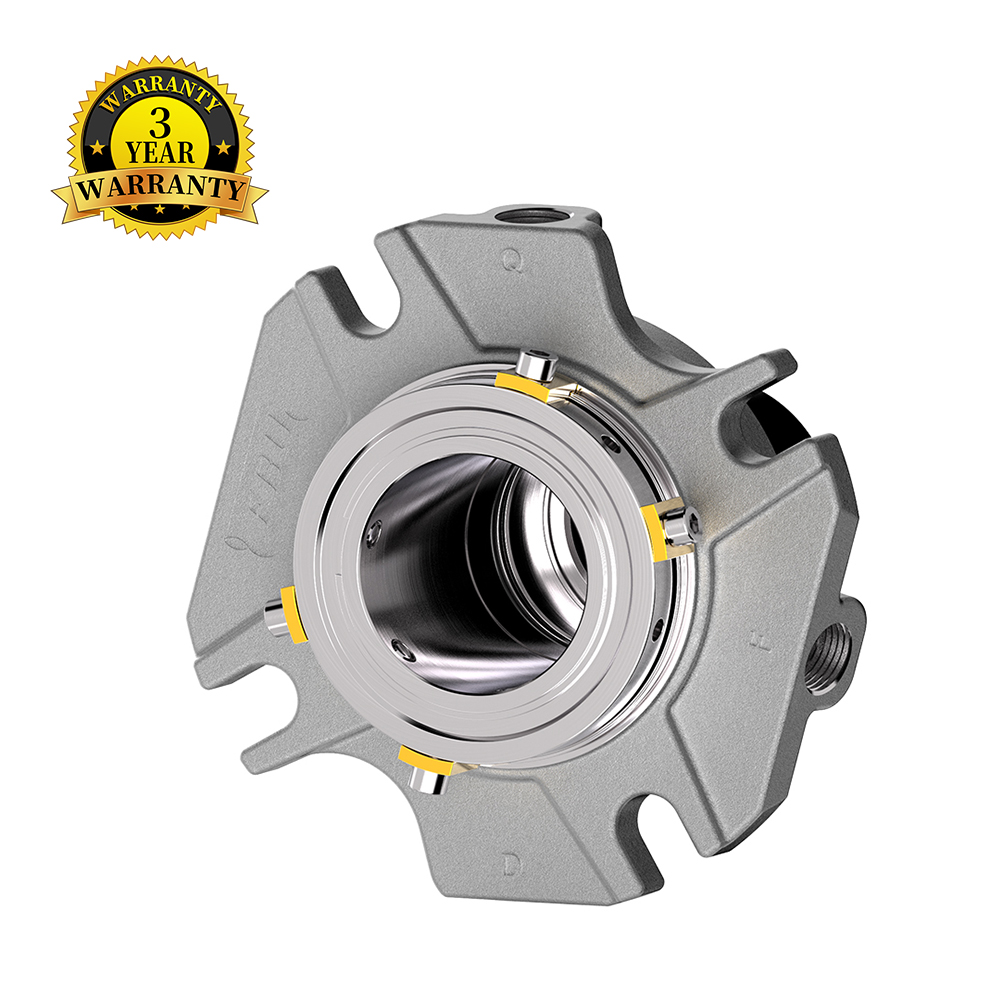

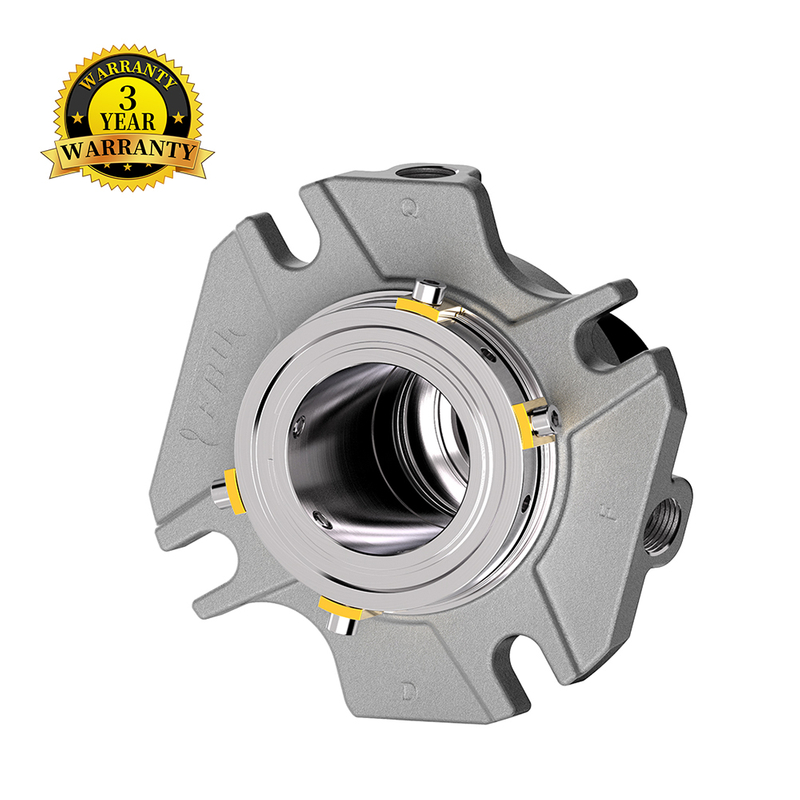

Product Description
TECHNICAL FEATURES
•Stationary Pusher Cartridge Seal.
•The integral structural design of the sealing ring improves stability in high temperature and high pressure conditions.
•The sealing ring drive has a large contact area to prevent damage to the sealing ring caused by equipment startup and shutdown in viscous liquids.
•Higher pressure limit ,Higher temperature limit, maximum temperature resistance of 160 ℃, no issues such as ring shedding and end face displacement caused by inlay process.
•Equipped with a large diameter 3/8 "interface for shaft diameters above 35mm to maximize cooling effectiveness.
APPLICABLE CHAMBERS TYPE
•Suitable for Sulzer® APP pump.
•Modular cartridge design, provide sealing solutions for general applications.
•Impeller spacer ring is provided.
•Sizes available: 30, 40, 50, 60, 80, 90.
TYPICAL INDUSTRIAL APPLICATIONS
•Chemical and Petrochemical Industry.
•Oil, Gas and Energy Sector.
•Water Treatment and Environmental Protection Engineering.
•Pharmaceutical and Food & Beverage Industries.
•Hazardous Chemicals and Specialized Industries.
•Marine and Offshore Engineering.
Table Description
RECOMMENDED PIPING PLANS
| Process side | 01, 02, 03, 11, 12, 13, 14, 21, 22, 31, 32, 41 |
| Atmospheric side | 51, 61, 62, 65A, 65B |
PERFORMANCE CAPABILITIES
| Shaft diameter | 30, 40, 50, 60, 80, 90 |
| Pressure | ≤ 25 bar |
| Temperature | -20 ° C ~ +160 °C |
| Sliding velocity | ≤ 20 m/s |

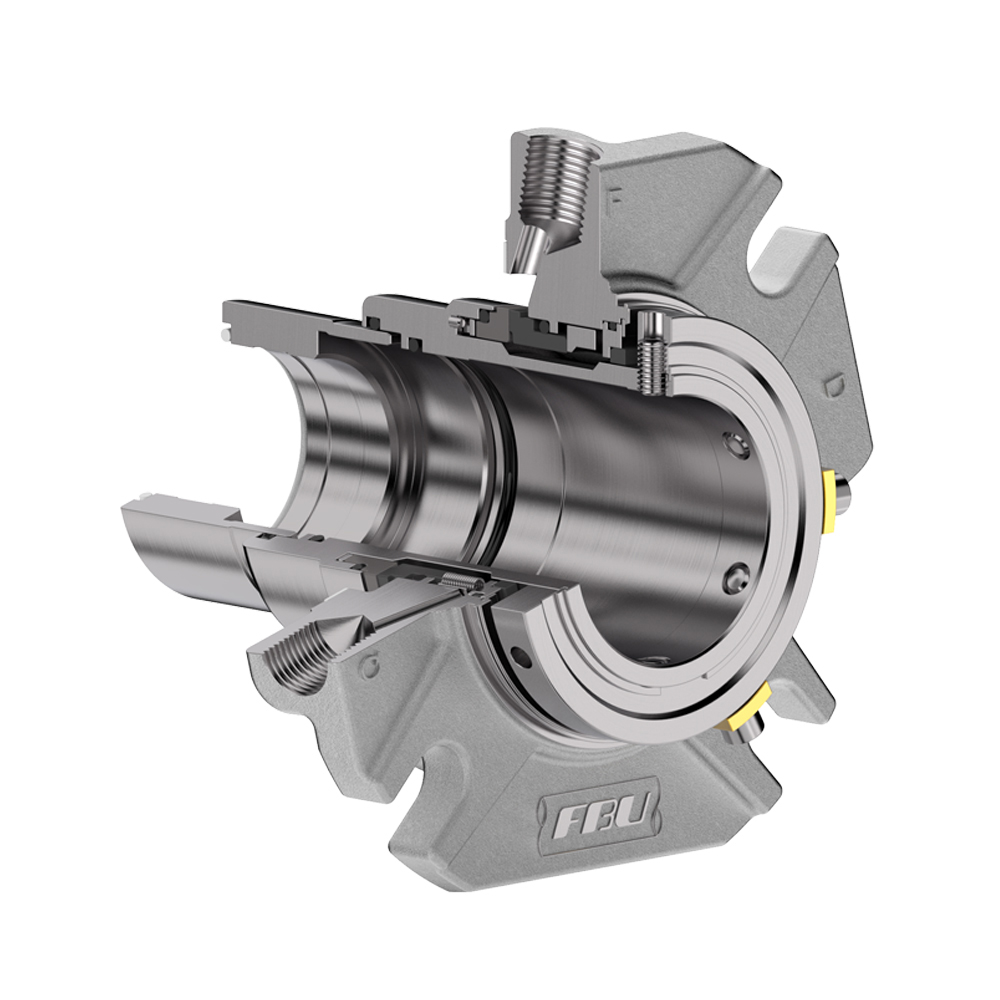

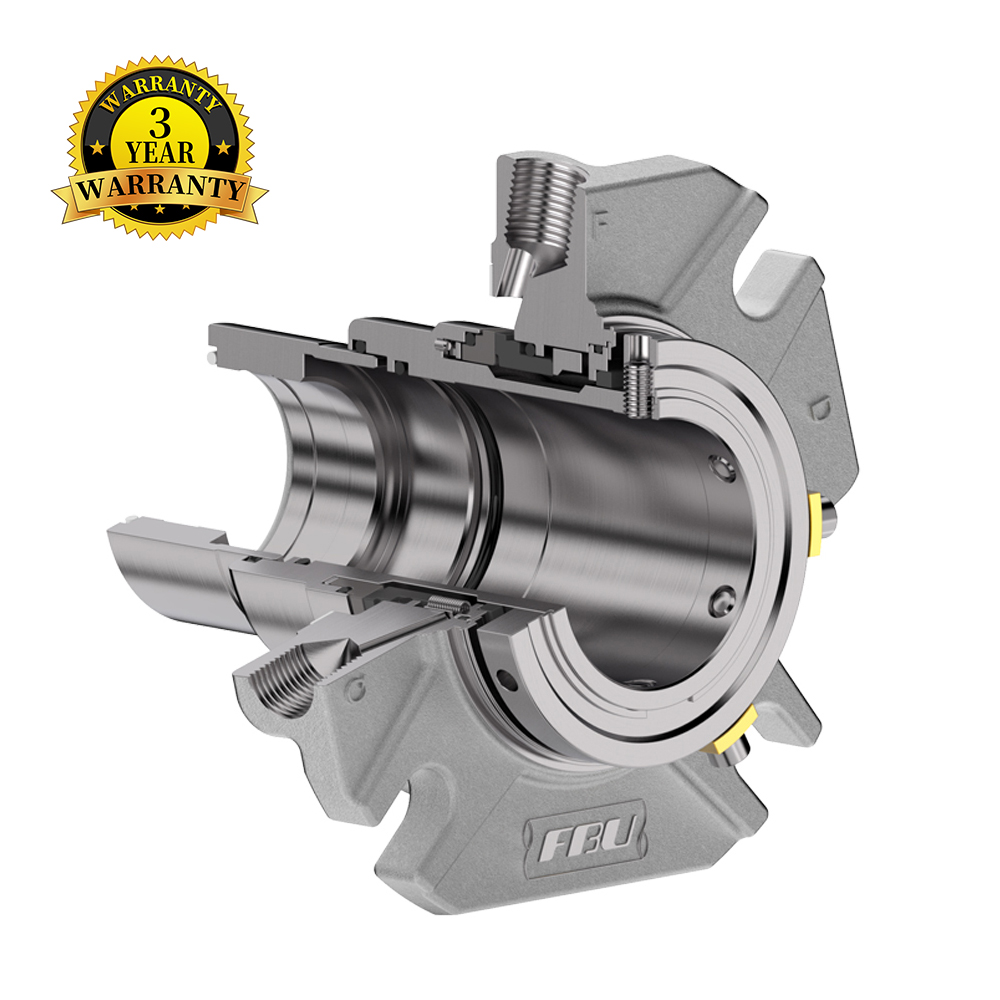

Product Structure Diagram & The comparison chart
| NO. | Name | Material |
| 11 | Sleeve | 316SS |
| 21 | Rotary Face | SSIC/TC |
| 22 | Stationary Face | Carbon/SSIC/TC |
| 12 | Gland | 316SS |
| 19 | Thrust Ring | 316SS |
| 25 | Spring Plate | 316SS |
| 24 | Bush Ring | M106K |
| 13 | Clamp Ring | 316SS |
| 30.1,30.2 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 33.1 | Drive Ring | 316SS |
| 10 | Springs | Hast.C276 |
| 30.3 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 14,17.5 | Circlip | 304SS |
| 28.1 | Drive Screws | 304SS |
| 14 | Setting Clips | Cu/Brass |
| 27.2 | Clip Screws | 304SS |
| 51 | Gasket | AF1 |
| 44.1 | Limit Sleeve | 316SS |
| 30.6 | O-Ring | PTFE |
