- Product origin: CHINA
 |
Product Description
TECHNICAL FEATURES

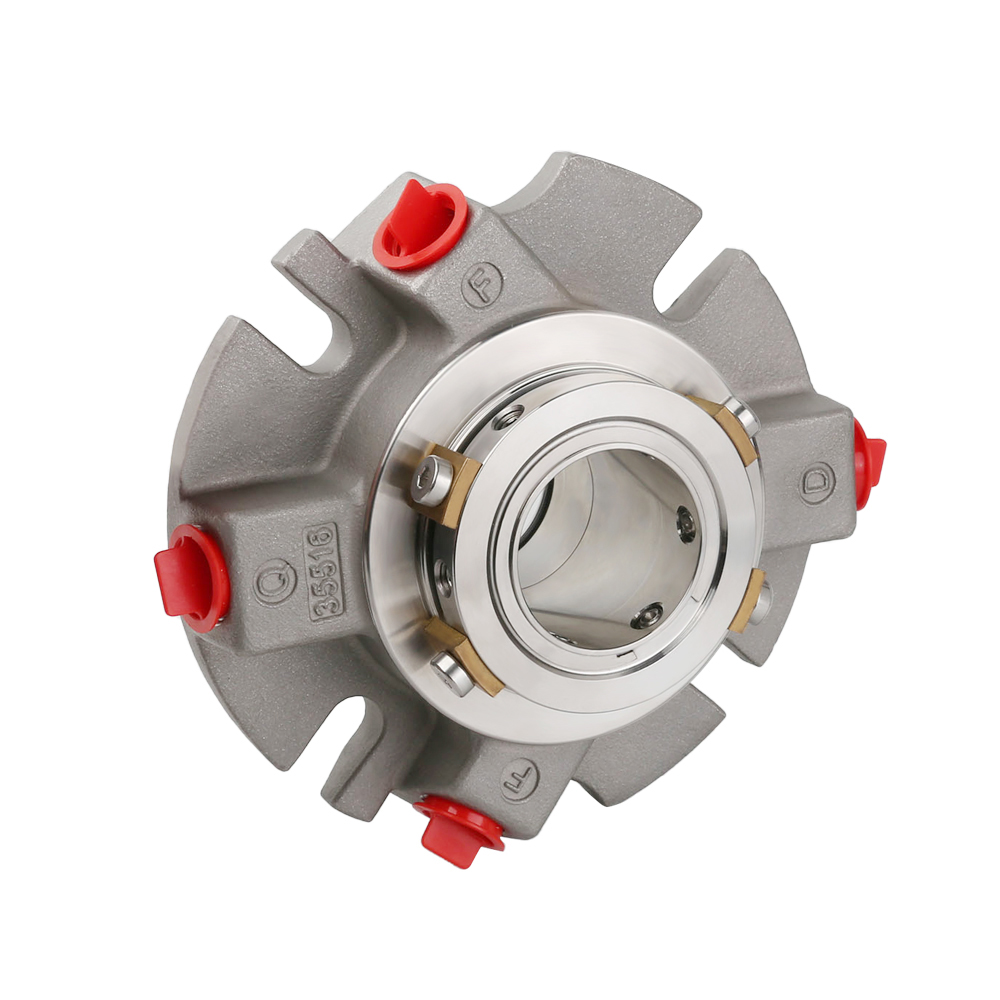

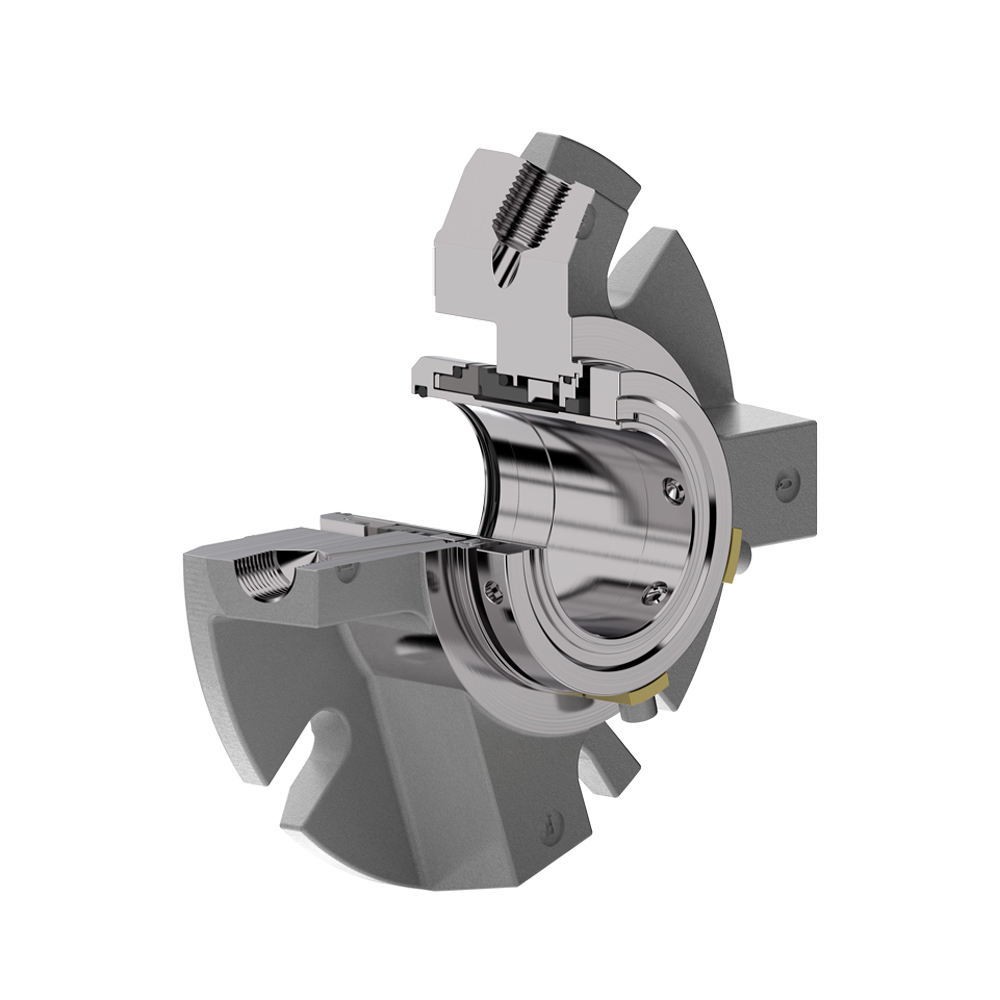

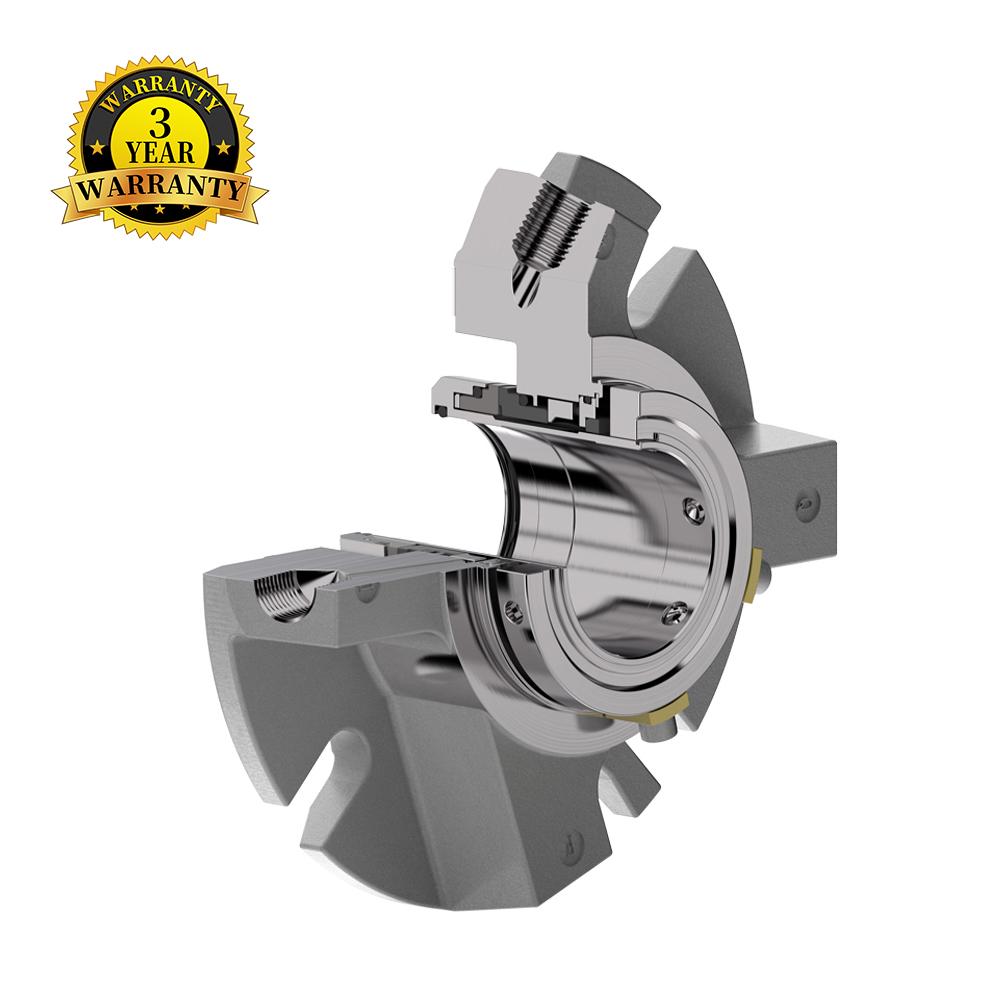

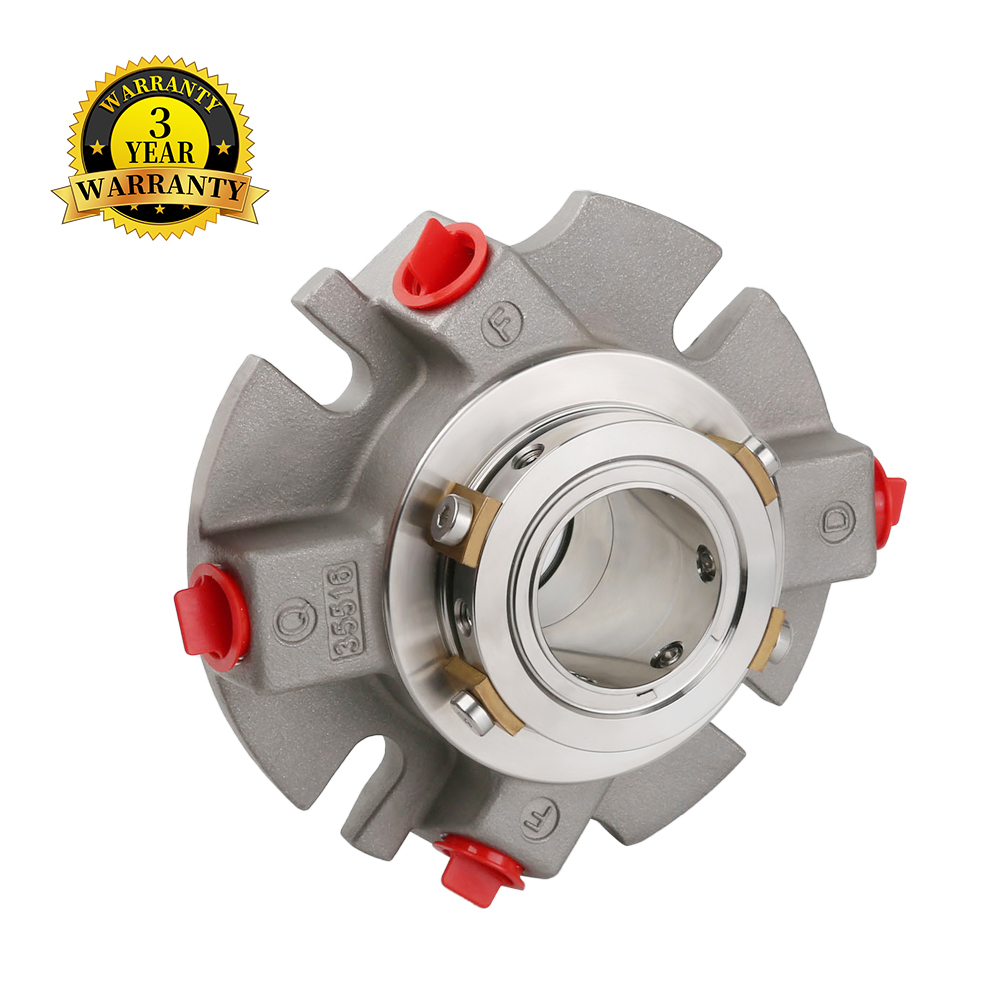

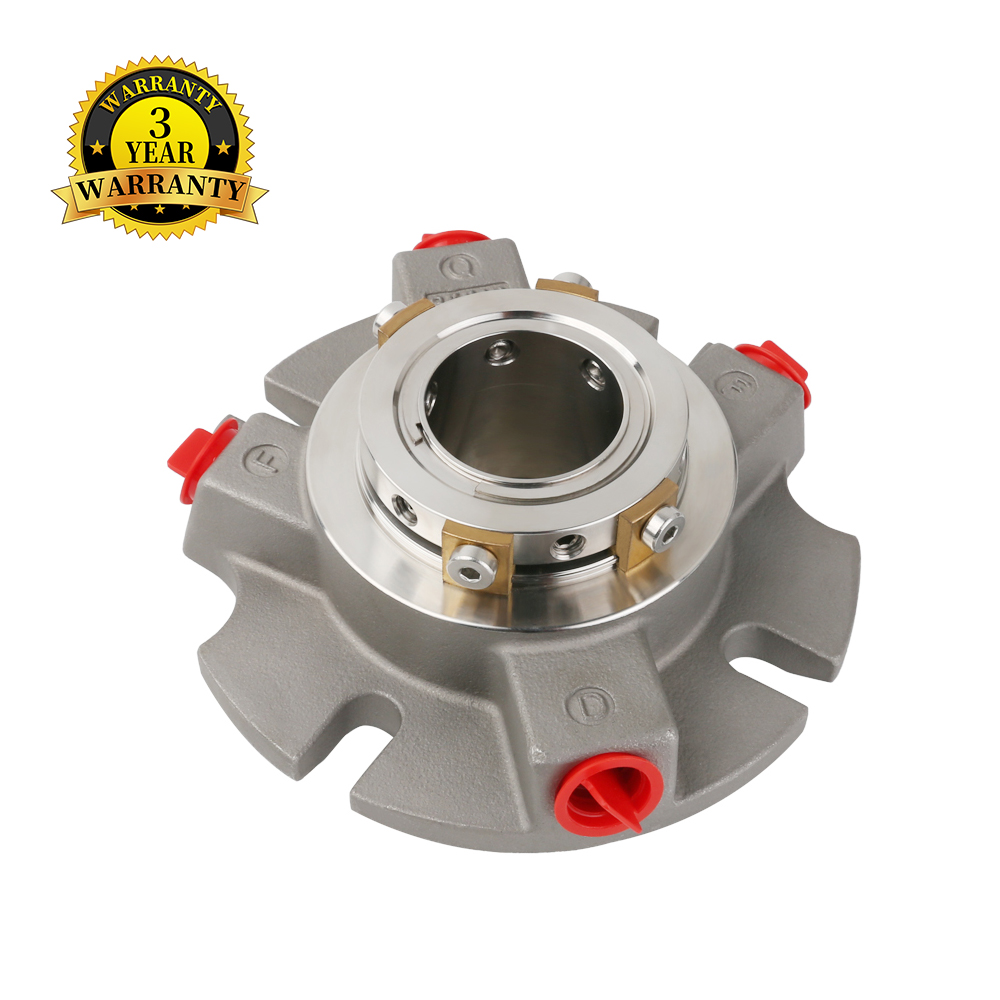

•Stationary Pusher Cartridge Seal.
•The integral structural design of the sealing ring improves stability in high temperature and high pressure conditions.
•The sealing ring drive has a large contact area to prevent damage to the sealing ring caused by equipment startup and shutdown in viscous liquids.
•Higher pressure limit ,Higher temperature limit, maximum temperature resistance of 160 ℃, no issues such as ring shedding and end face displacement caused by inlay process.
•Equipped with a large diameter 3/8 "interface for shaft diameters above 35mm to maximize cooling effectiveness.
APPLICABLE CHAMBERS TYPE
•Suitable for ANSI standard chambers.
•Complies with ASME B73.1 and B73.2 standard pump chamber dimensions.
•Modular cartridge design. Equipped with Flush,Quench & Drain environmental ports.
•Dimensions range from 1.375 "to 3.625" (34.9mm to 66.67mm).
TYPICAL INDUSTRIAL APPLICATIONS
•Chemical and Petrochemical Industry
•Oil, Gas and Energy Sector
•Water Treatment and Environmental Protection Engineering
•Pharmaceutical and Food & Beverage Industries
•Hazardous Chemicals and Specialized Industries
•Marine and Offshore Engineering
Table Description
RECOMMENDED PIPING PLANS
| Process side | 01, 02, 03, 11, 12, 13, 14, 21, 22, 31, 32, 41 |
| Atmospheric side | 51, 61, 62, 65A, 65B |
PERFORMANCE CAPABILITIES
| Shaft diameter | 1.375 "to 3.625" (34.9mm to 66.67mm) |
| Pressure | ≤ 25 bar |
| Temperature | -20 ° C ~ +160 °C |
| Sliding velocity | ≤ 20 m/s |

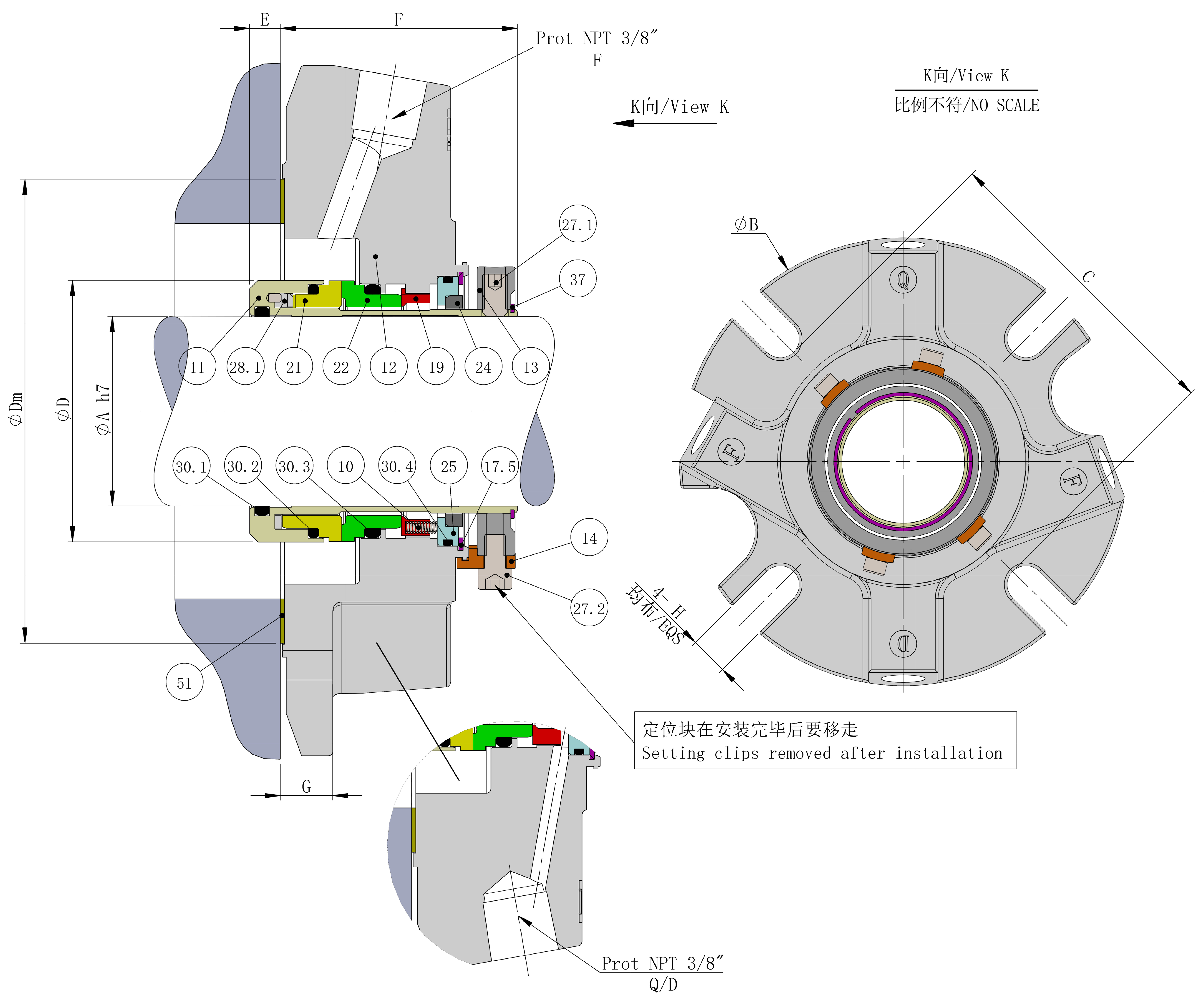

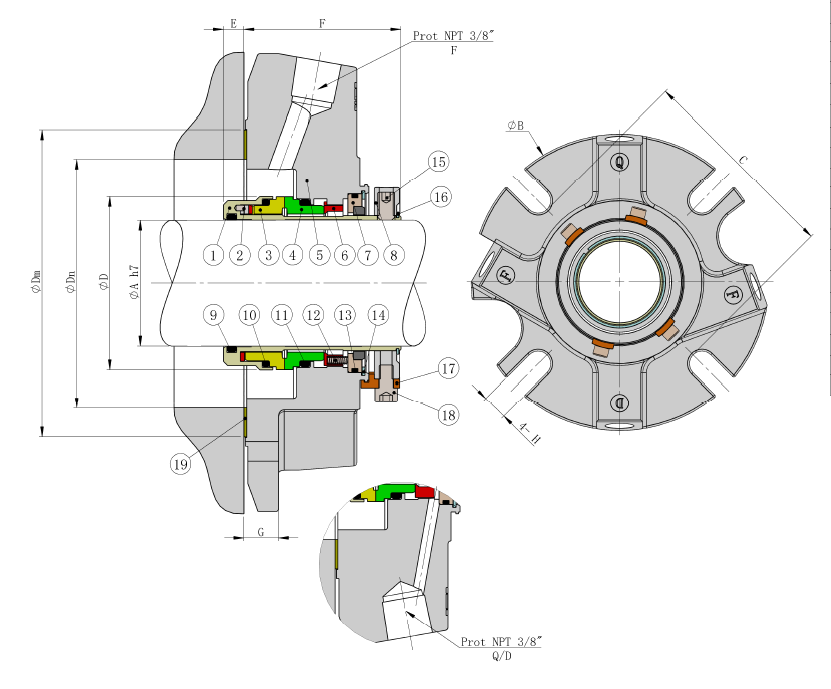

Product Structure Diagram & The comparison chart
| NO. | Name | Material |
| 11 | Shaft Sleeve | 316SS |
| 33.1 | Driver Ring | 316SS |
| 21 | Rotary Face | SSIC/TC |
| 22 | Stationary Face | Carbon/SSIC/TC |
| 12 | Gland | 316SS |
| 25 | Spring Plate | 316SS |
| 24 | Bush Ring | M106K |
| 14 | Clamp Ring | 316SS |
| 30.1,30.2 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 30.3,30.4 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 10 | Spring | Alloy 276 |
| 17.5,37 | Circlip | 316SS |
| 27.1 | Drive Screw | 316SS |
| 14 | Setting Clip | Brass |
| 27.2 | Clip Screw | 316SS |
| 51 | Gasket | PTFE |
| 19 | Thrust Ring | 316SS |
