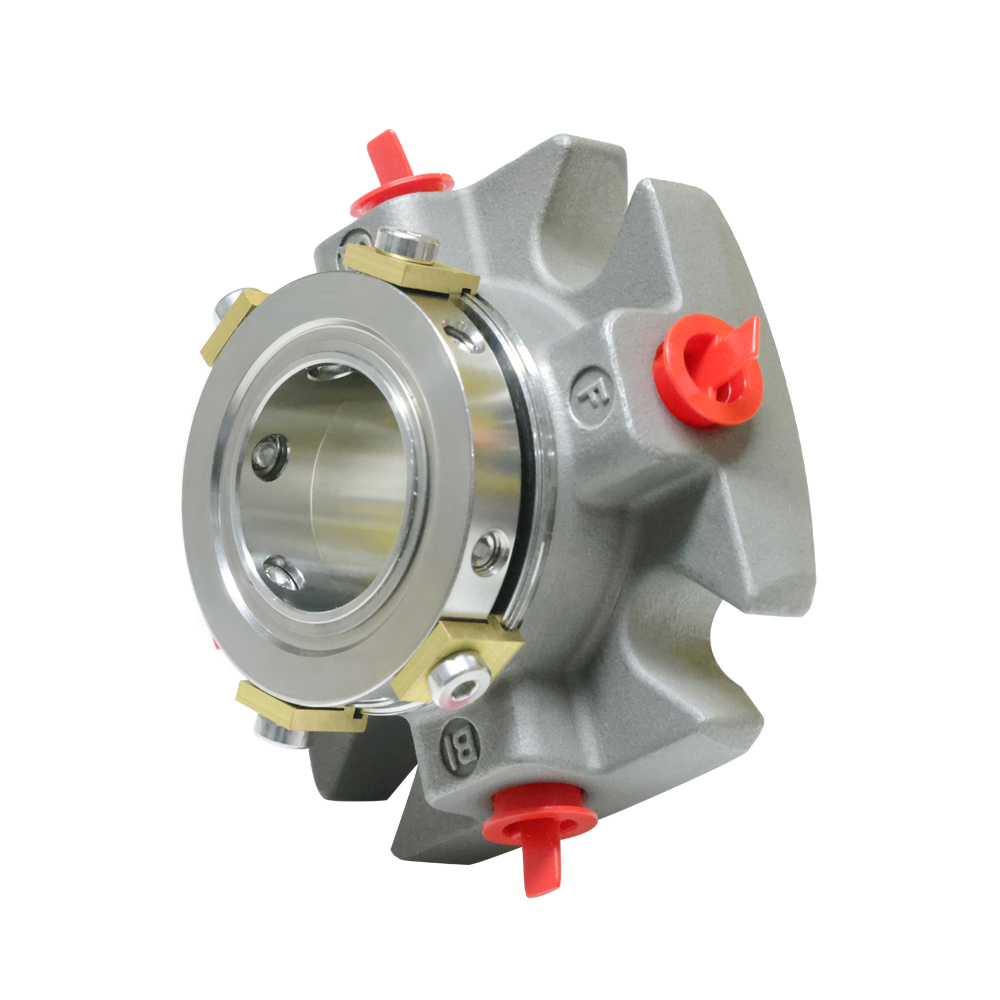

GSM Single Cartridge Mechanical Seal for Chemical Pumps

TECHNICAL FEATURES

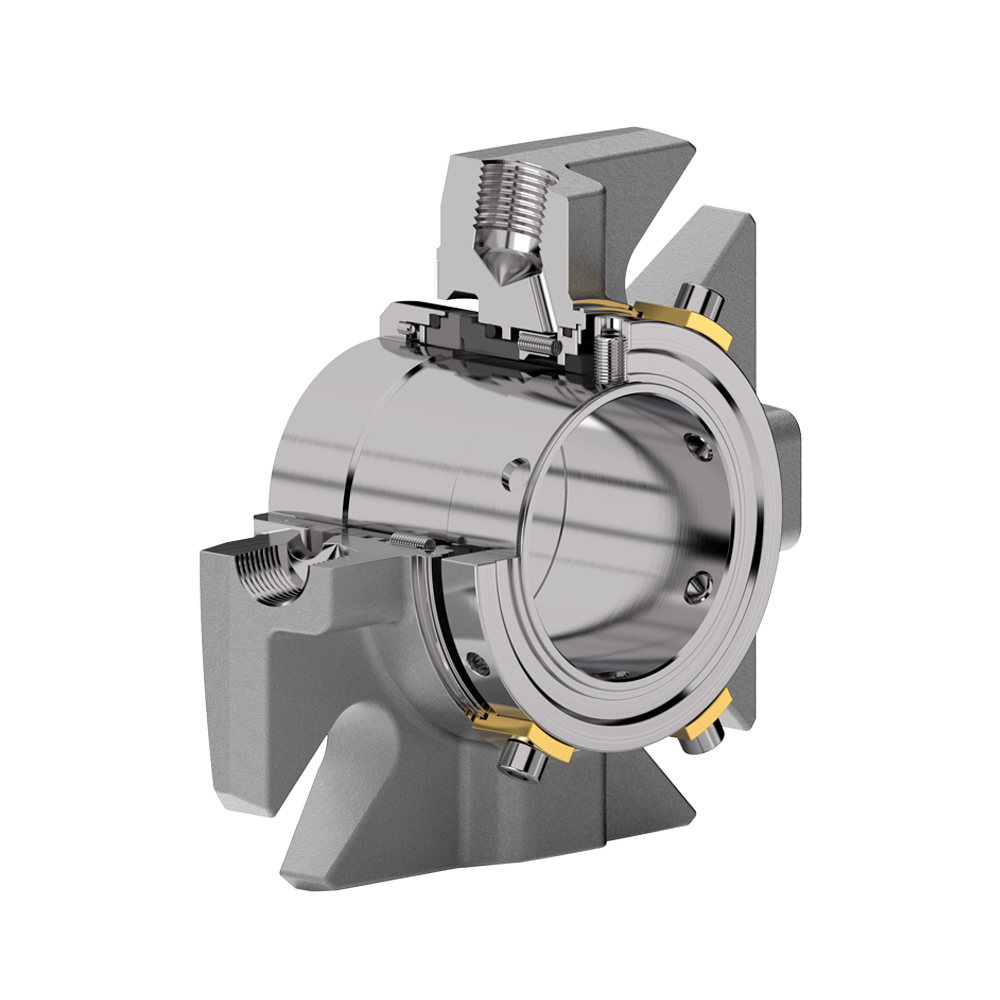

•Stationary Pusher Cartridge Seal.

•The integral structural design of the sealing ring improves stability in high temperature and high pressure conditions.

•The sealing ring drive has a large contact area to prevent damage to the sealing ring caused by equipment startup and shutdown in viscous liquids.

•Higher pressure limit ,Higher temperature limit, maximum temperature resistance of 160 ℃, no issues such as ring shedding and end face displacement caused by inlay process.

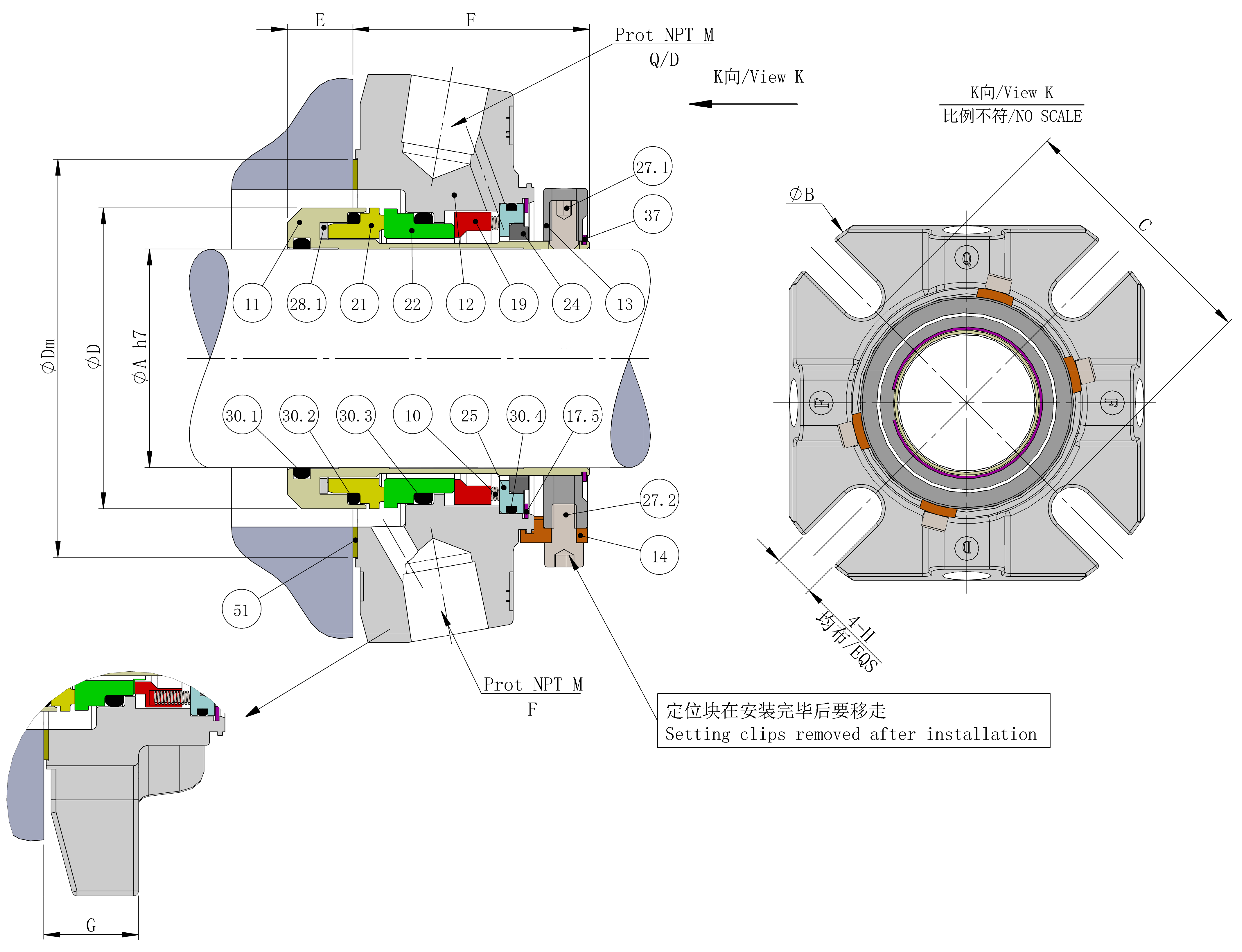

•Equipped with a large diameter 3/8 "interface for shaft diameters above 35mm to maximize cooling effectiveness.

APPLICABLE CHAMBERS TYPE

•Applicable to ISO2858 standard chambers and other compact chambers.

•Modular cartridge design, provide high performance sealing solutions for chemical applications.

•Equipped with Flush, Quench & Drain environmental ports.

•Sizes range from 1.000 "to 4.000" (24mm~100mm).

TYPICAL INDUSTRIAL APPLICATIONS

•Chemical and Petrochemical Industry.

•Oil, Gas and Energy Sector.

•Water Treatment and Environmental Protection Engineering.

•Pharmaceutical and Food & Beverage Industries.

•Hazardous Chemicals and Specialized Industries.

•Marine and Offshore Engineering.

RECOMMENDED PIPING PLANS

PERFORMANCE CAPABILITIES
