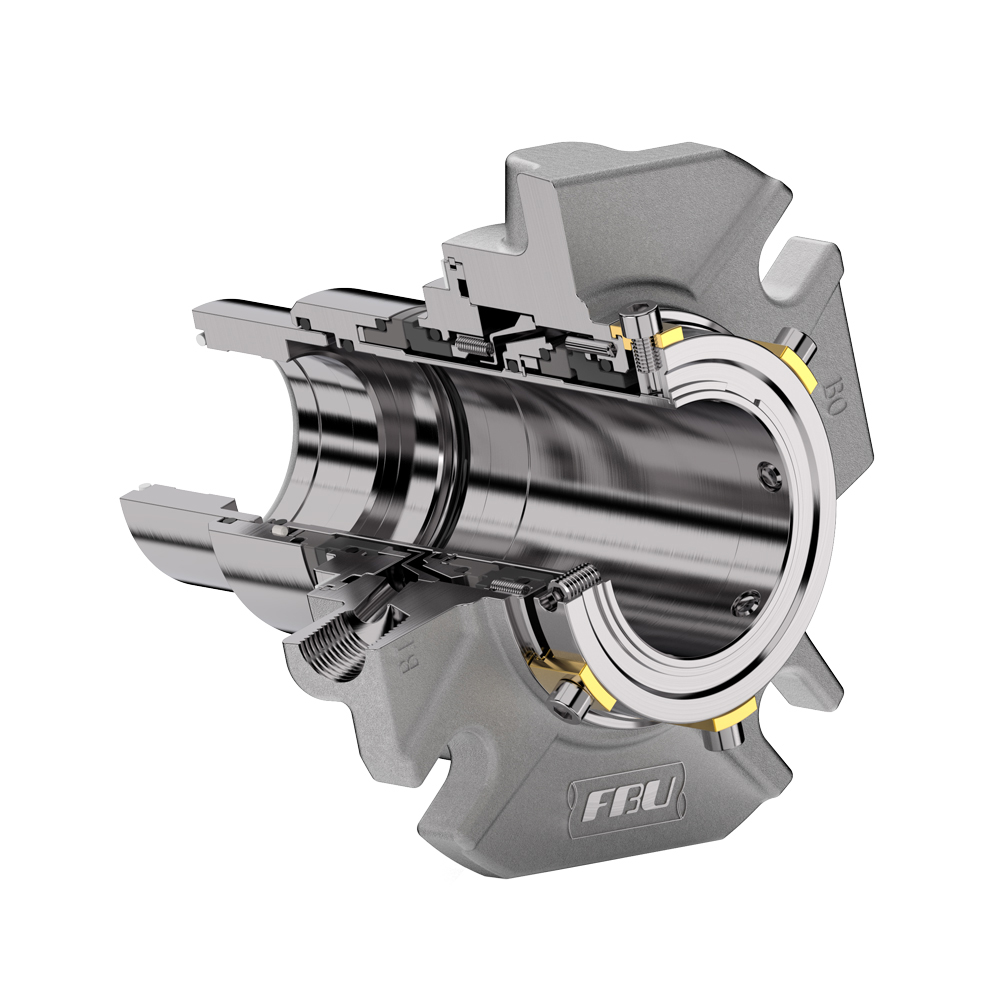

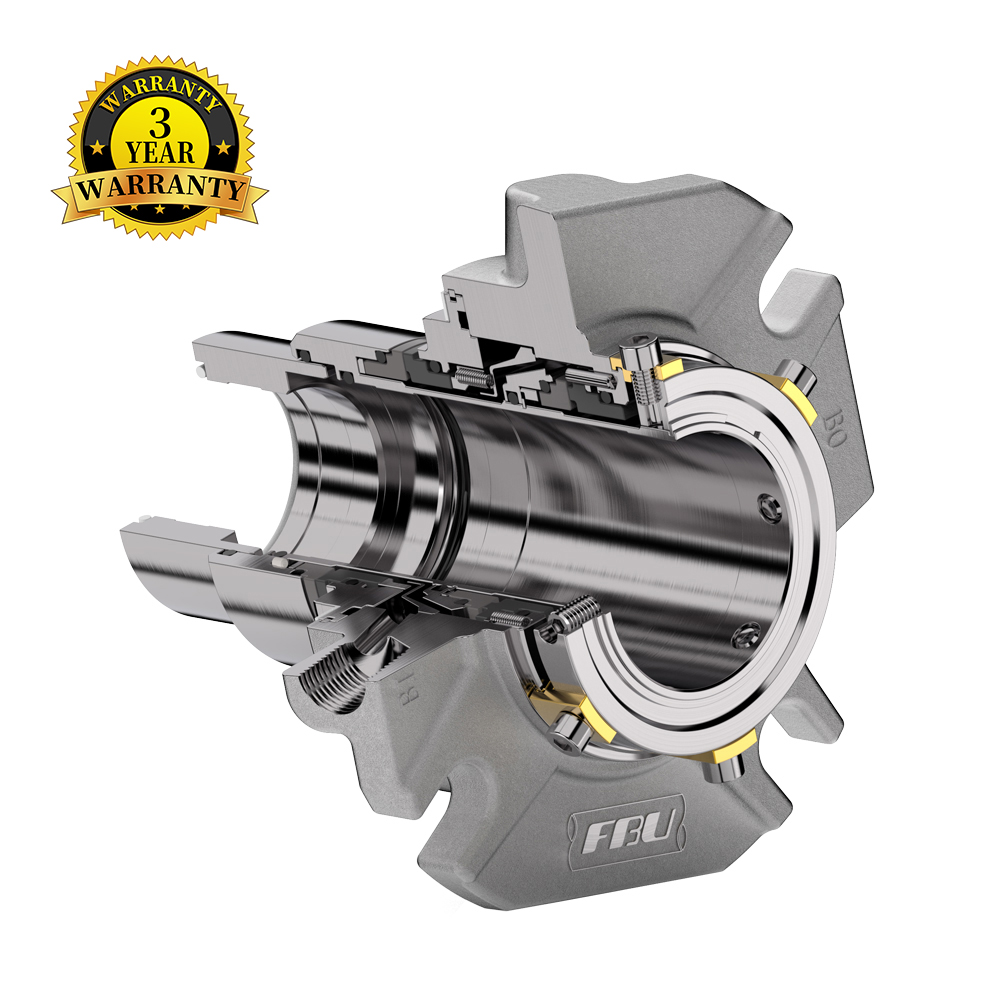

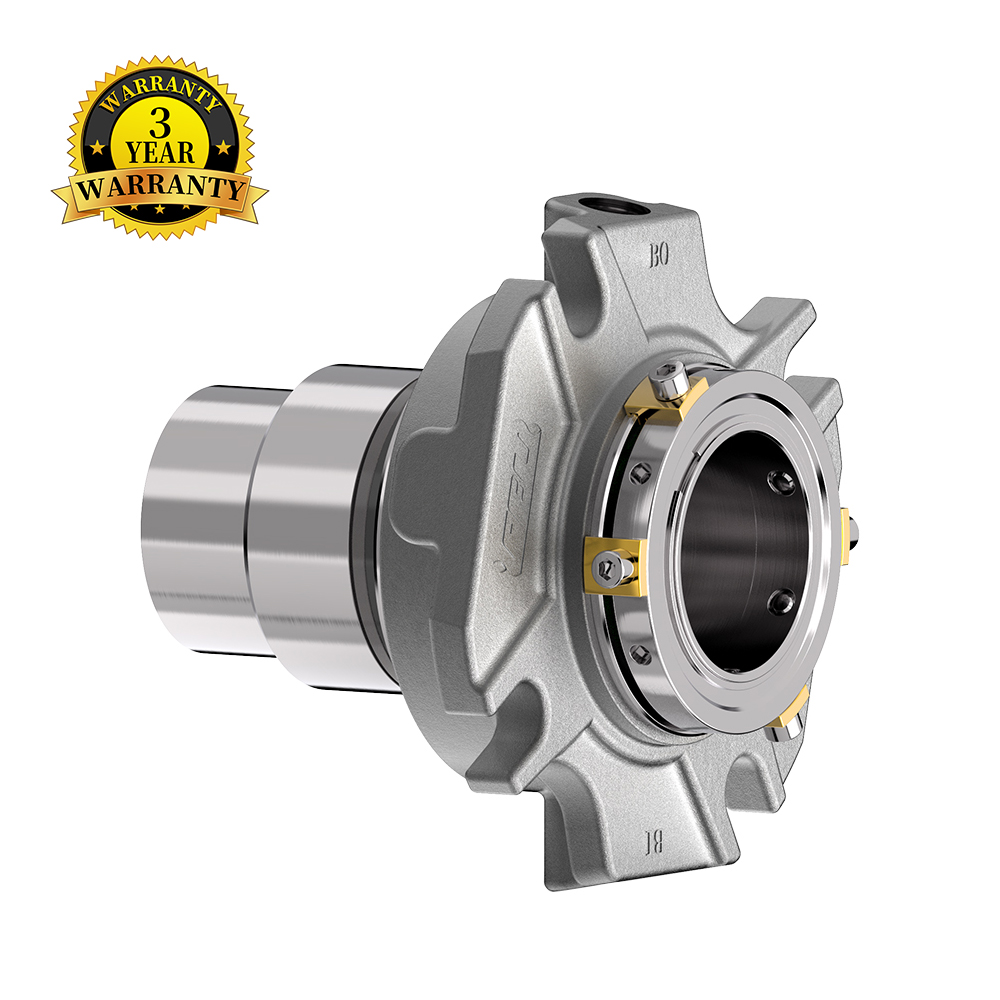

Product Description
TECHNICAL FEATURES
•Stationary Pusher Cartridge Seal with Face-to-back configuration.
•Double balanced integral ring design can better resist pressure fluctuations in the sealing chamber.
•Integrated bidirectional flow design, unique pump efficiency ring design, and significant barrier liquid circulation effect.
•Higher pressure limit ,Higher temperature limit, maximum temperature resistance of 160 ℃, no issues such as ring shedding and end face displacement caused by inlay process.
APPLICABLE CHAMBERS TYPE
•Suitable for Sulzer® APP pump
•Modular cartridge design, provide sealing solutions for general applications
•Impeller spacer ring is provided
•Sizes available: 30, 40, 50, 60, 80, 90
TYPICAL INDUSTRIAL APPLICATIONS
•Chemical and Petrochemical Industry
•Oil, Gas and Energy Sector
•Water Treatment and Environmental Protection Engineering
•Pharmaceutical and Food & Beverage Industries
•Hazardous Chemicals and Specialized Industries
•Marine and Offshore Engineering
Table Description
RECOMMENDED PIPING PLANS
| Between seals | 52, 53A, 53B, 53C, 54 | |
PERFORMANCE CAPABILITIES
| Shaft diameter | 30, 40, 50, 60, 80, 90 | |
| Pressure | ≤ 25 bar | |
| Temperature | -20 ° C ~ +160 °C | |
| Sliding velocity | ≤ 20 m/s | |

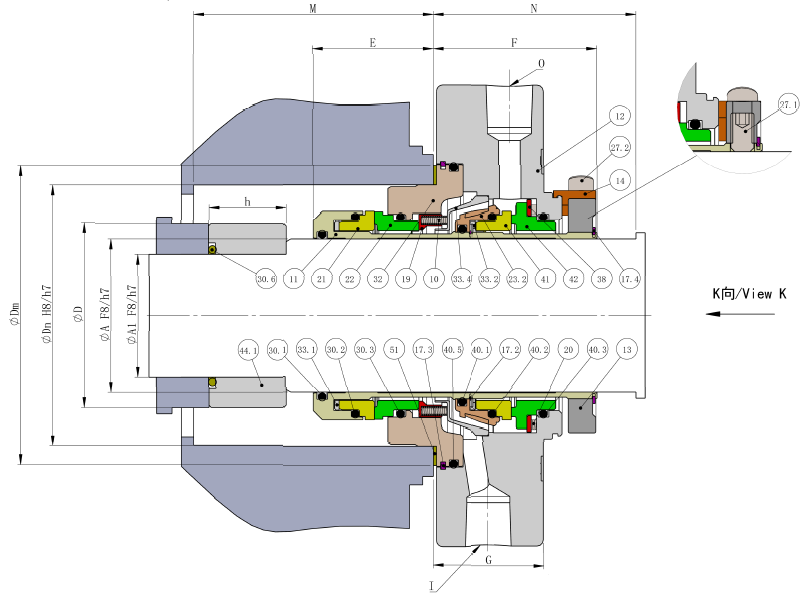

Product Structure Diagram & The comparison chart of standard material
| NO. | Name | Material |
| 11 | Sleeve | 316SS |
| 10,20 | Springs | Hast.C276 |
| 33.1 | Drive Ring | 316SS |
| 21 | Rotary Face | SSIC/TC |
| 22 | Stat.Face | Carbon/SSIC/TC |
| 32 | Gland Insert | 316SS |
| 19 | Thrust Ring | 316SS |
| 33.4 | Deflector | 316SS |
| 23.2 | Rotary Holder | 316SS |
| 12 | Gland | 316SS |
| 41 | Stat.Face | SSIC/TC |
| 42 | Rotary Face | Carbon/SSIC/TC |
| 13 | Clamp Ring | 316SS |
| 27.1 | Drive Screws | 304SS |
| 30.1,30.2 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 40.3,40.5 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 17.2 | Circlip | 304SS |
| 33.2,38 | Drive Ring | 316SS |
| 17.3,17.4 | Circlip | 304SS |
| 51 | Gasket | AF1 |
| 27.2 | Clip Screws | 304SS |
| 14 | Setting Clips | Cu/Brass |
| 44.1 | Limit Sleeve | 316SS |
| 30.6 | O-Ring | PTFE |
| 40.1,40.2 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 30.3 | O-Ring | EPR/Viton/Aflas/Kalrez |
