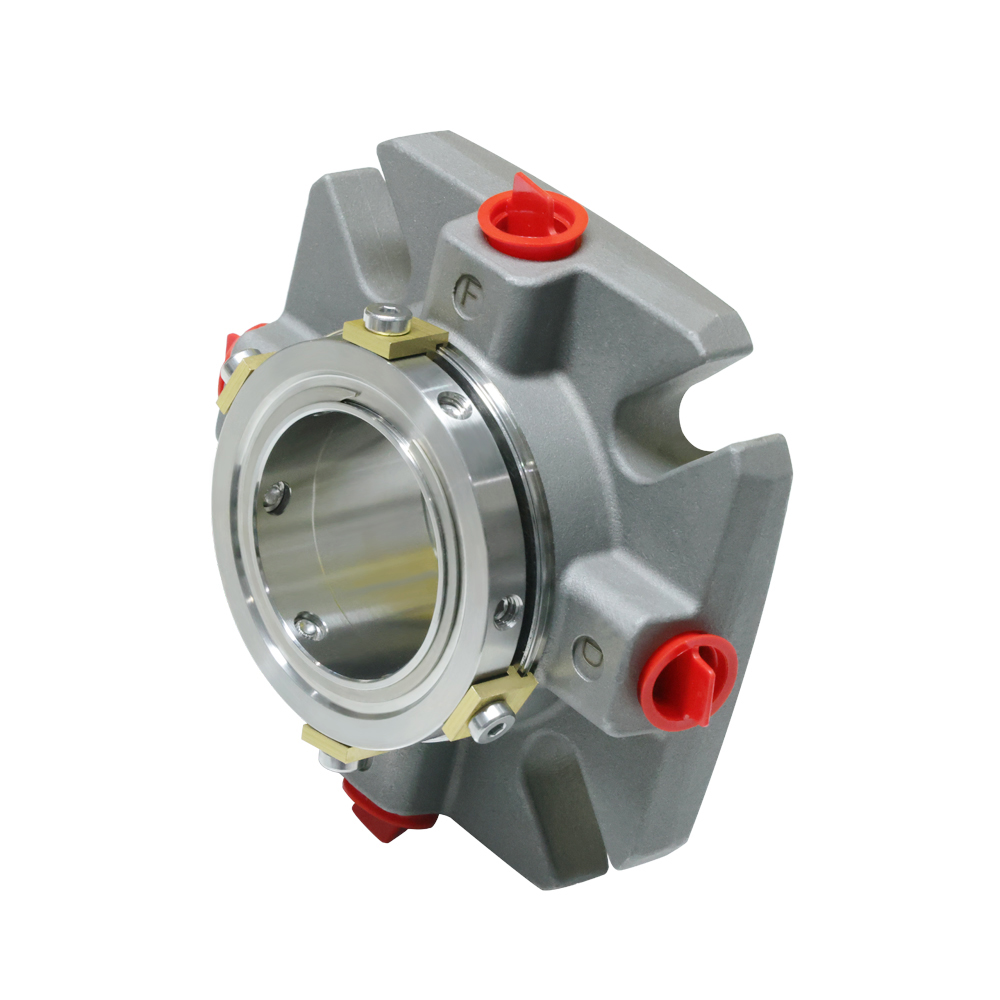

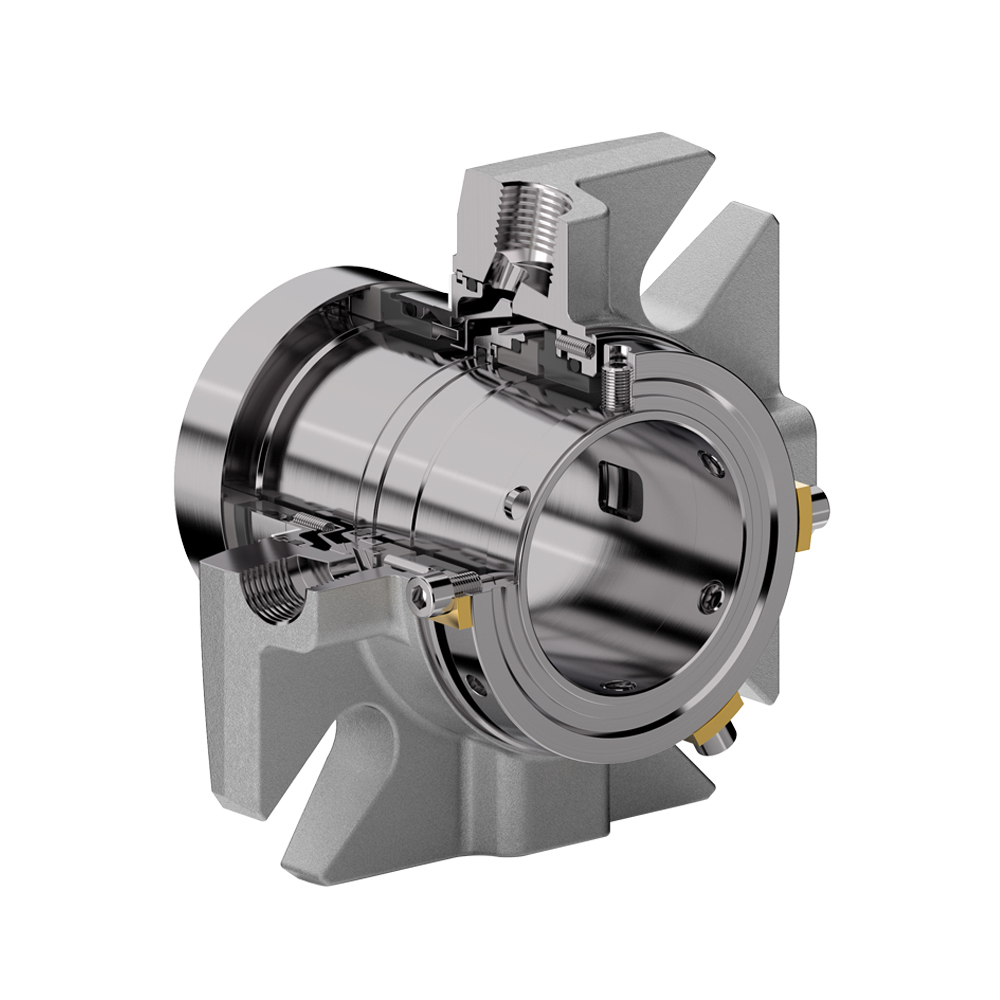

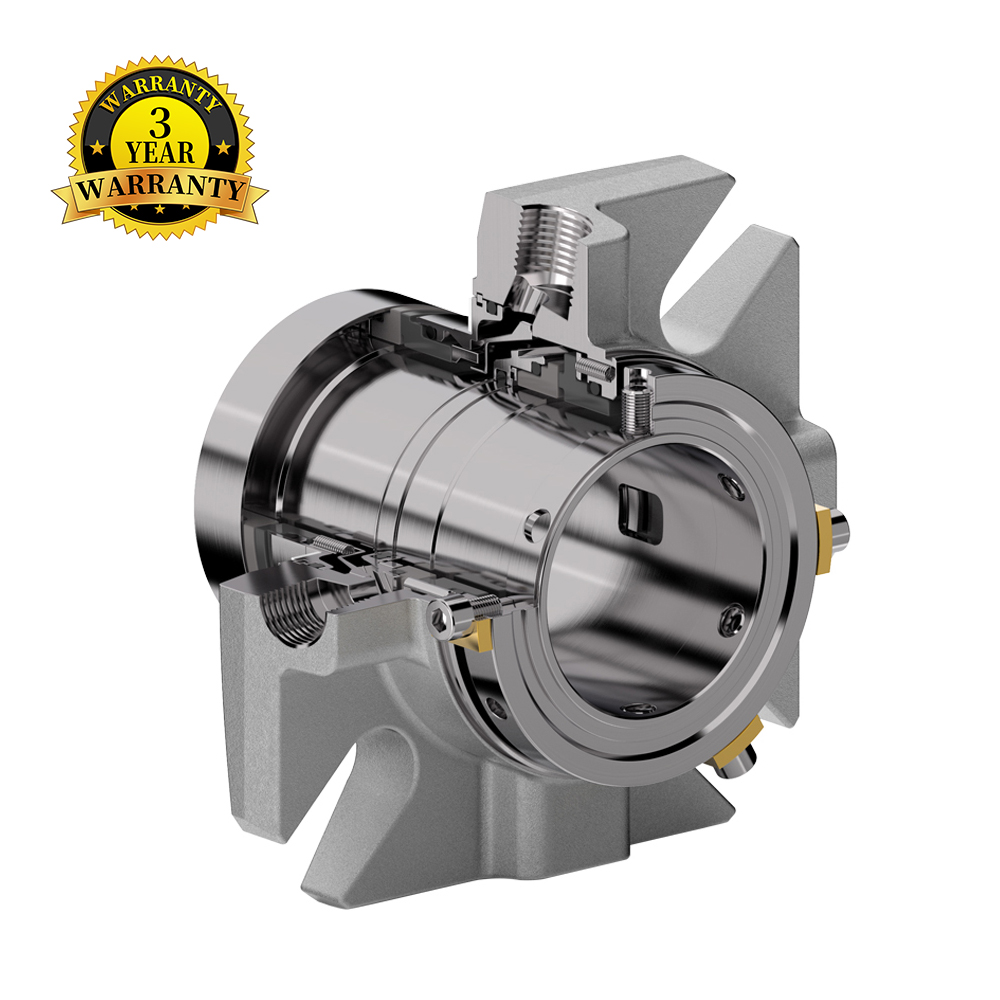

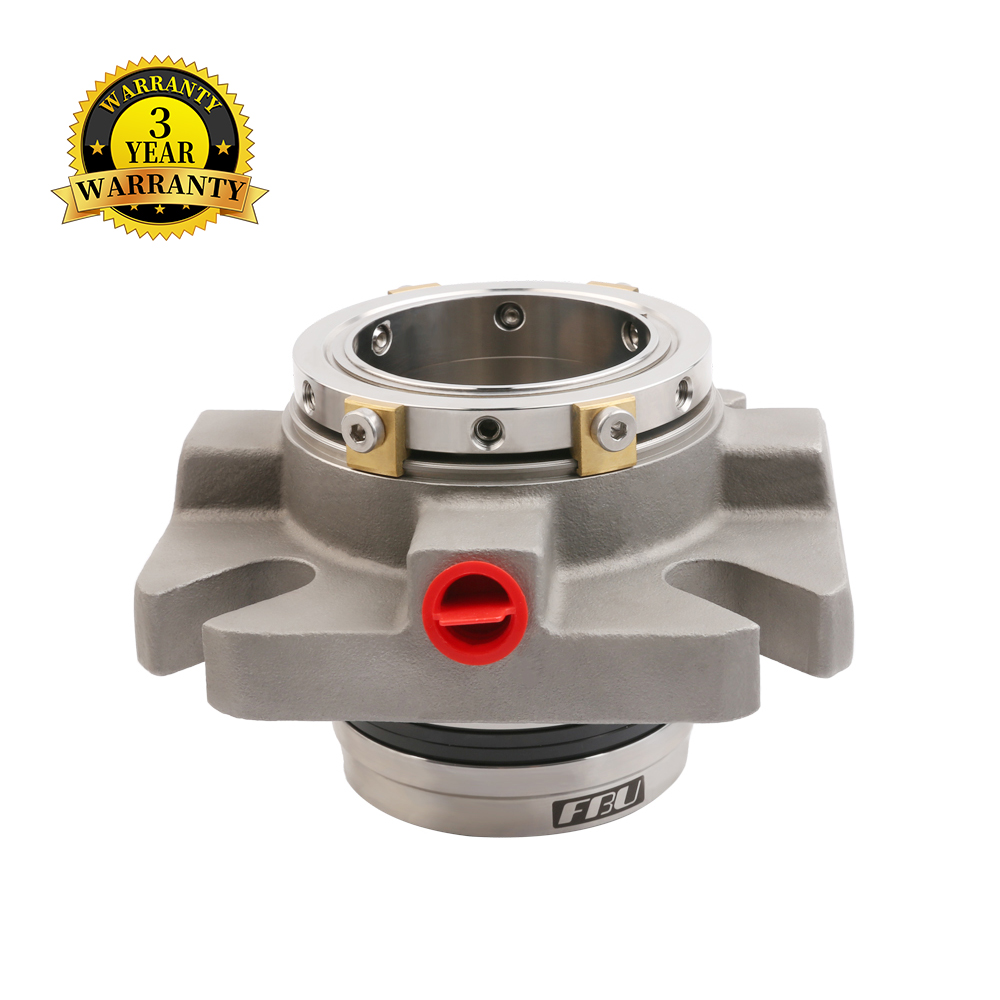

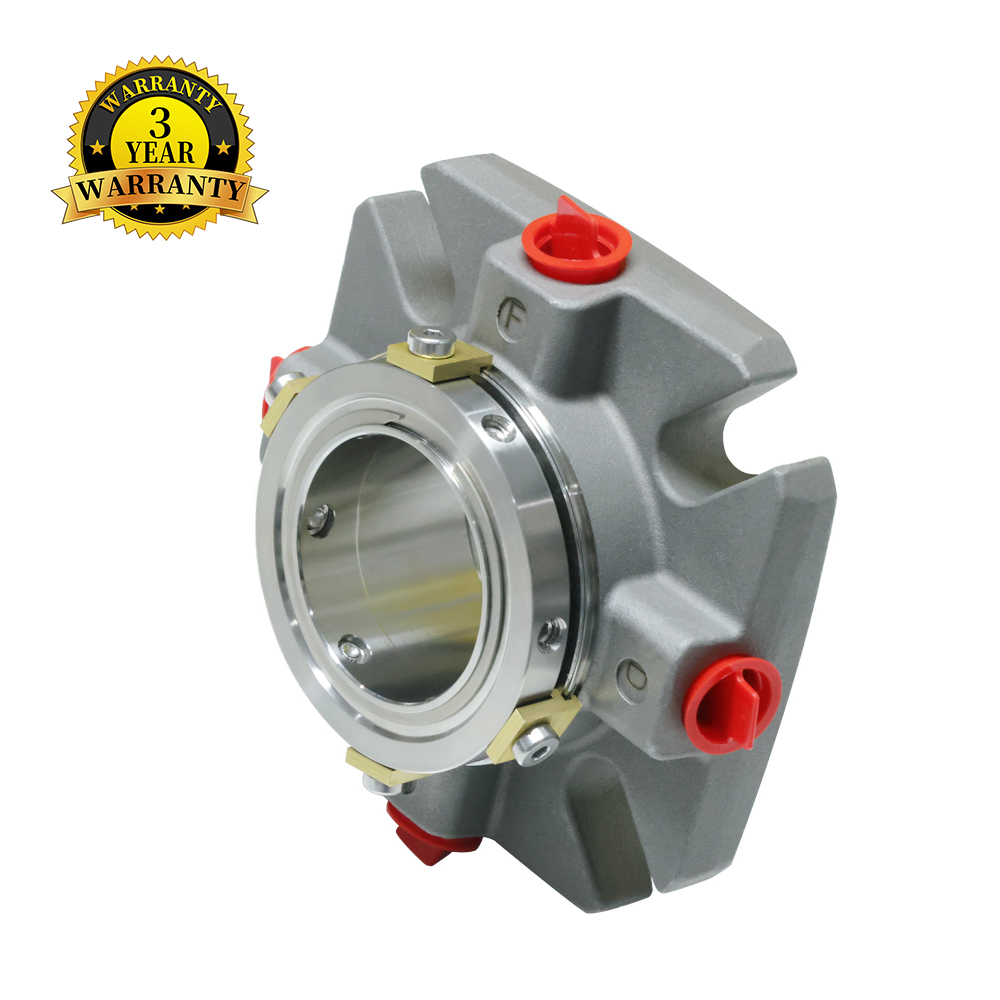

GDM Double Cartridge Mechanical Seal for Chemical Pumps

The Standard Stationary Double Seal Solution for Chemical Pumps
Availability:

Product Description


    Key Features

● Intergrated and Bi-directional diversion, unique pump ring design, excellet barrier fluid circulation.

● High speed limits, up to 220 degree. No seal face drop or displacement.

● Higher pressure limits, up to 25 bar.
● Wet Part in Duplex steel, 904L, Alloy 276, Ti2, Zr-702 available.
● Suitable for API Plan 52/53A/53B/54.
● Can replace 5620P,DMSF CARTEX-DN.


        Specifications

    Operating Conditions
    Temperature -20° C to +160° C
    Pressure 0〜25 Bar
    Speed Up to 25 m/s
    Sealing product  Acid,alkaline, low percentage of pulp, water, oil and other similar media.
    Material Arrangement
    Seal faces SSIC/CARBON/TC
    Rubber EPR/Viton®/Aflas®/Kalrez®
    Springs ALLOY 276
    MetaI 316SS/DUPLEX/ALLOY 276/904L/TI2, ZR-702

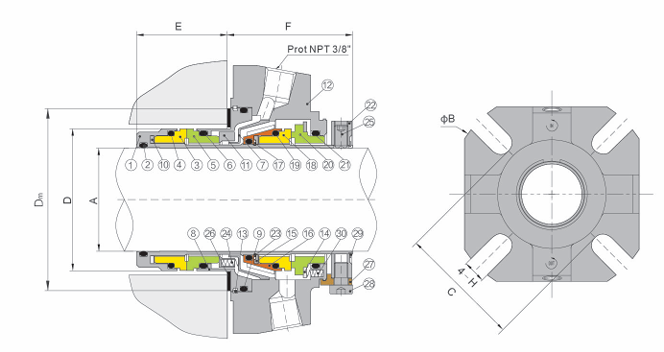

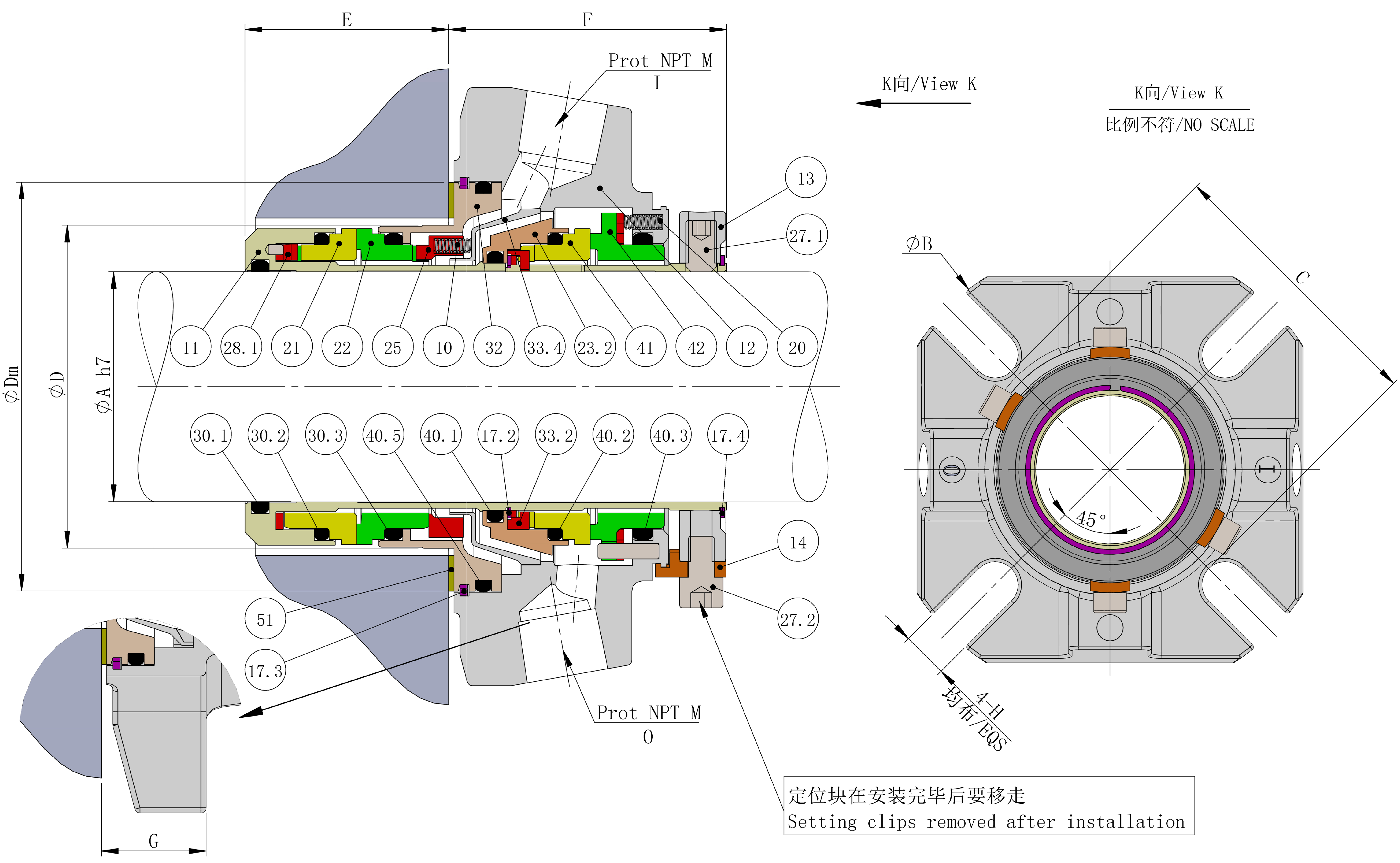

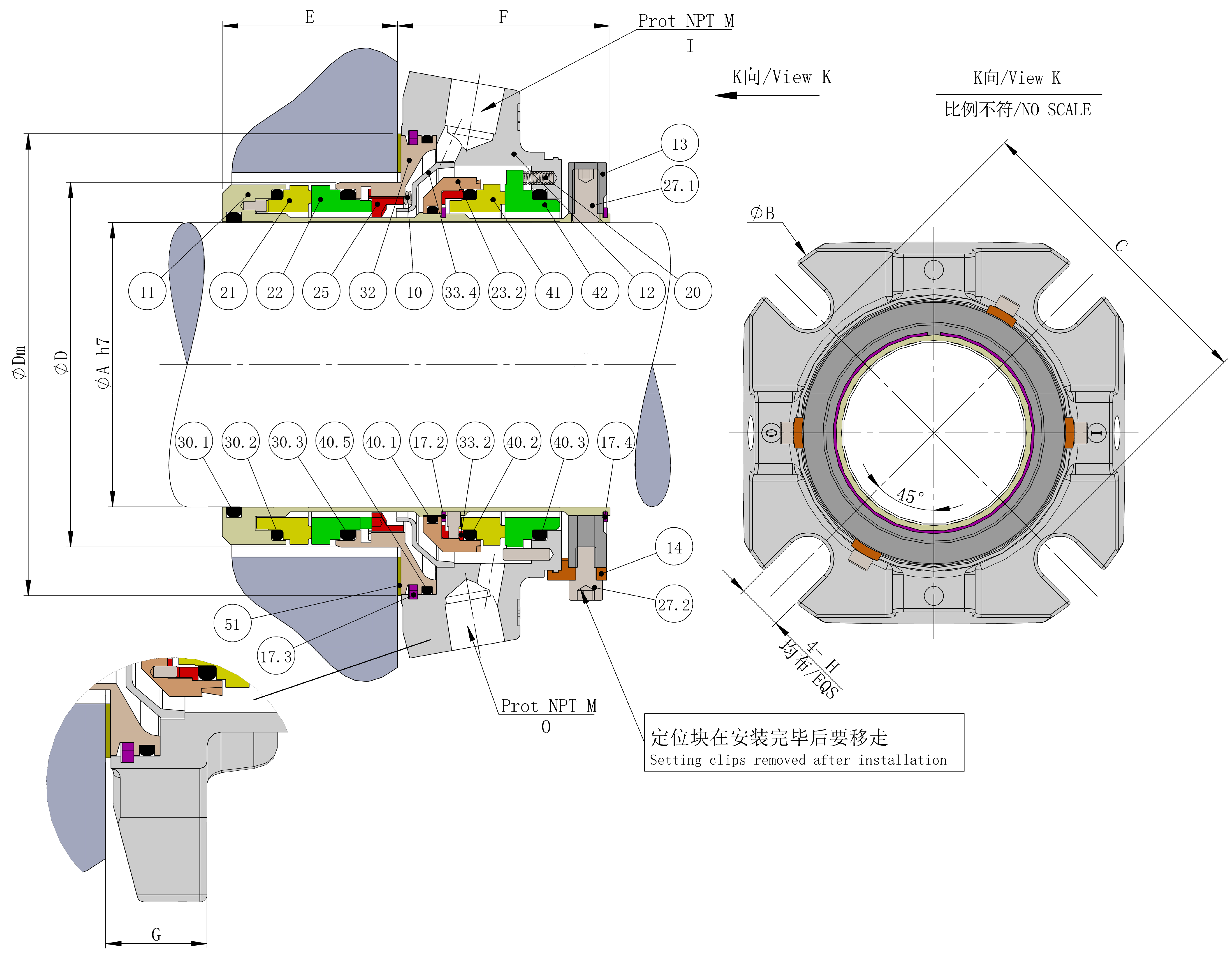

        Assembly Chart

    GDM


        Downloads

    GDM>70mm.pdfGDM ≤70 mm.pdf
