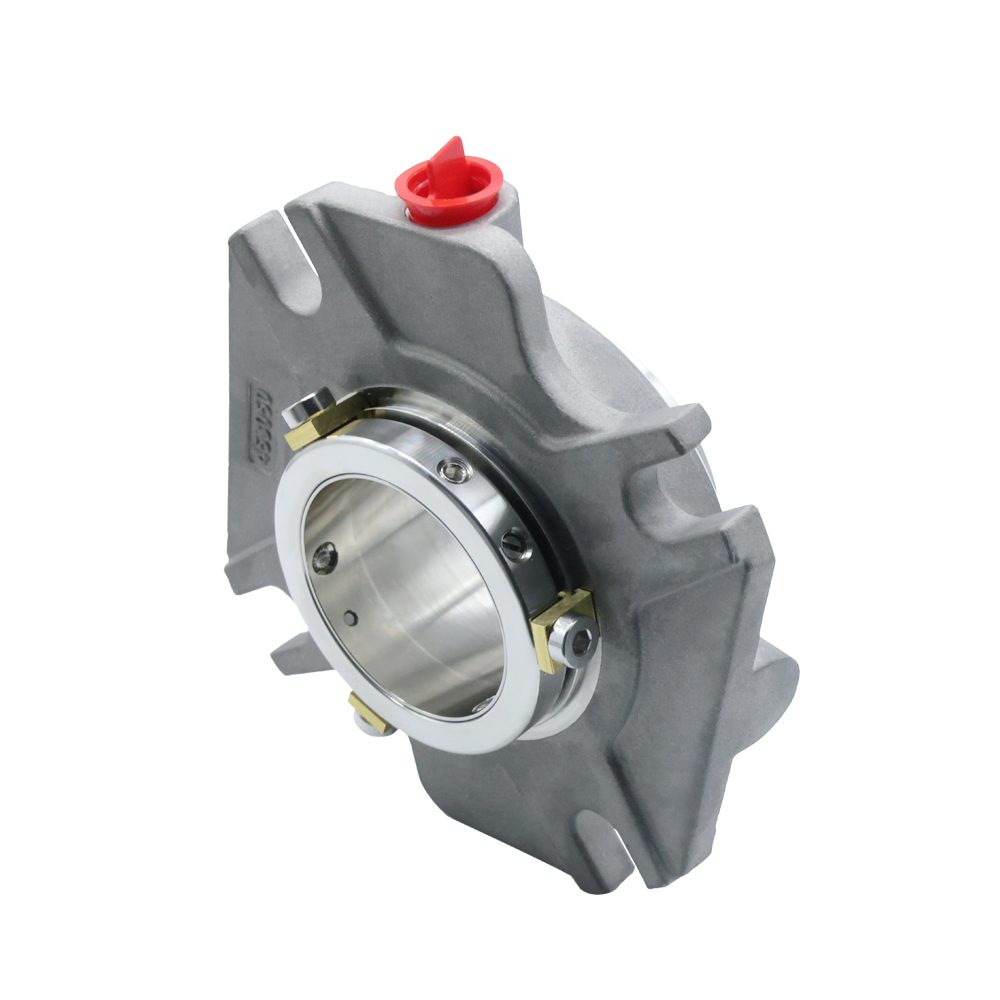

Product Description
TECHNICAL FEATURES
•Rotary pusher cartridge seal.
•Hydraulically balanced seal faces to reduces heat generation, reduces energy consumption, and extends seal life.
•Modular design, standardization of universal components, allows maximum flexibility and delivery performance.
•Multi-Spring Design, springs are placed out of the product media to eliminate clogging and prolong the seal life.
APPLICABLE CHAMBERS TYPE
•Suitable for Sulzer® APP pump.
•Modular cartridge design, provide sealing solutions for general applications.
•Impeller spacer ring is provided.
•Sizes range from 30, 40, 50, 60, 80 and 90.
TYPICAL INDUSTRIAL APPLICATIONS
•Chemical and Petrochemical Industry.
•Oil, Gas and Energy Sector.
•Water Treatment and Environmental Protection Engineering.
•Pharmaceutical and Food & Beverage Industries.
•Hazardous Chemicals and Specialized Industries.
•Marine and Offshore Engineering.
Table Description
RECOMMENDED PIPING PLANS
| Process side | 01, 02, 03, 11, 12, 13, 14, 21, 22, 31, 32, 41 |
PERFORMANCE CAPABILITIES
| Shaft diameter | 30, 40, 50, 60, 80 , 90 |
| Pressure | ≤ 15 bar |
| Temperature | -20 ° C ~ +120 °C |
| Sliding velocity | ≤ 20 m/s |

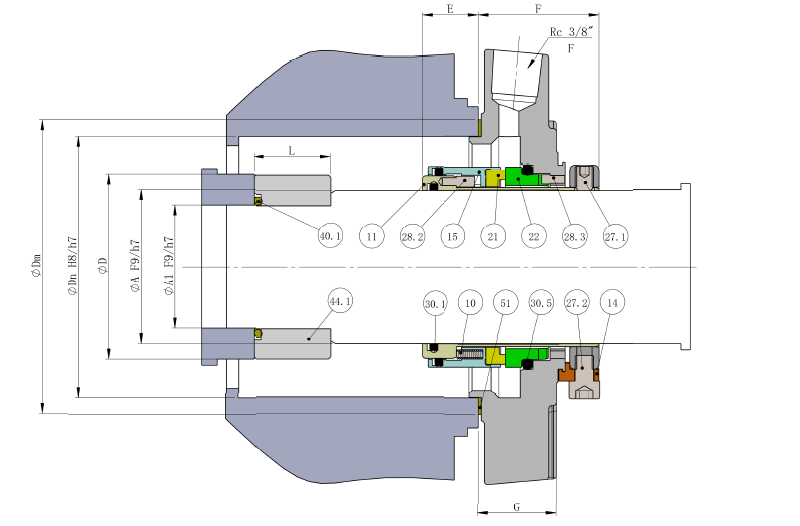

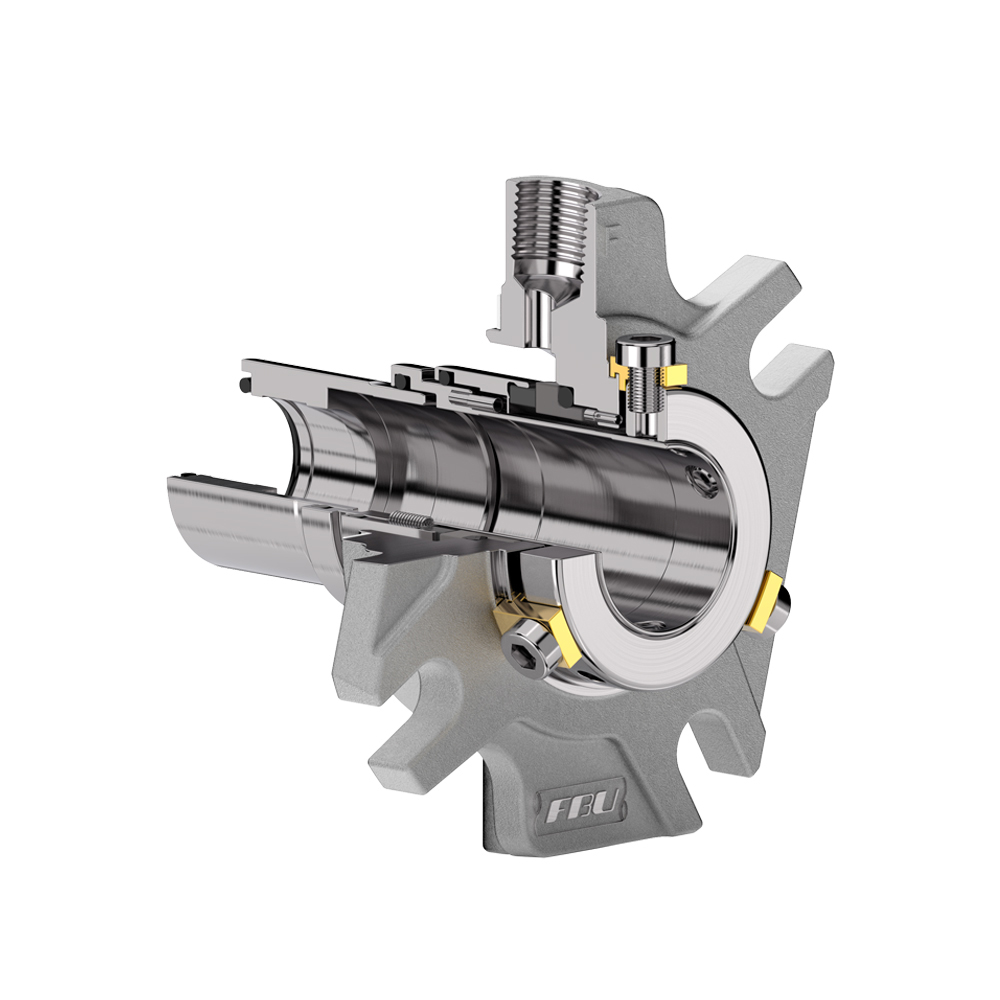

Product Structure Diagram & The comparison chart
| NO. | Name | Material |
| 11 | Shaft Sleeve | 316SS |
| 15 | Rotary Seat | 316SS |
| 21 | Rotary Face | SSIC/TC |
| 22 | Stationary Seat | SSIC/TC |
| 12 | Gland | 316SS |
| 13 | Clamp Ring | 316SS |
| 30.1,30.2 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 10 | Spring | 316SS |
| 30.5,40.1 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 27.3 | Anti-tamper Screws | 316SS |
| 27.1 | Drive Screw | 316SS |
| 14 | Setting Clip | 316SS |
| 27.2 | Clip Screw | 316SS |
| 51 | Gasket | AF1/PTFE |
| 44.1 | Intermediate Sleeve | 316SS |
