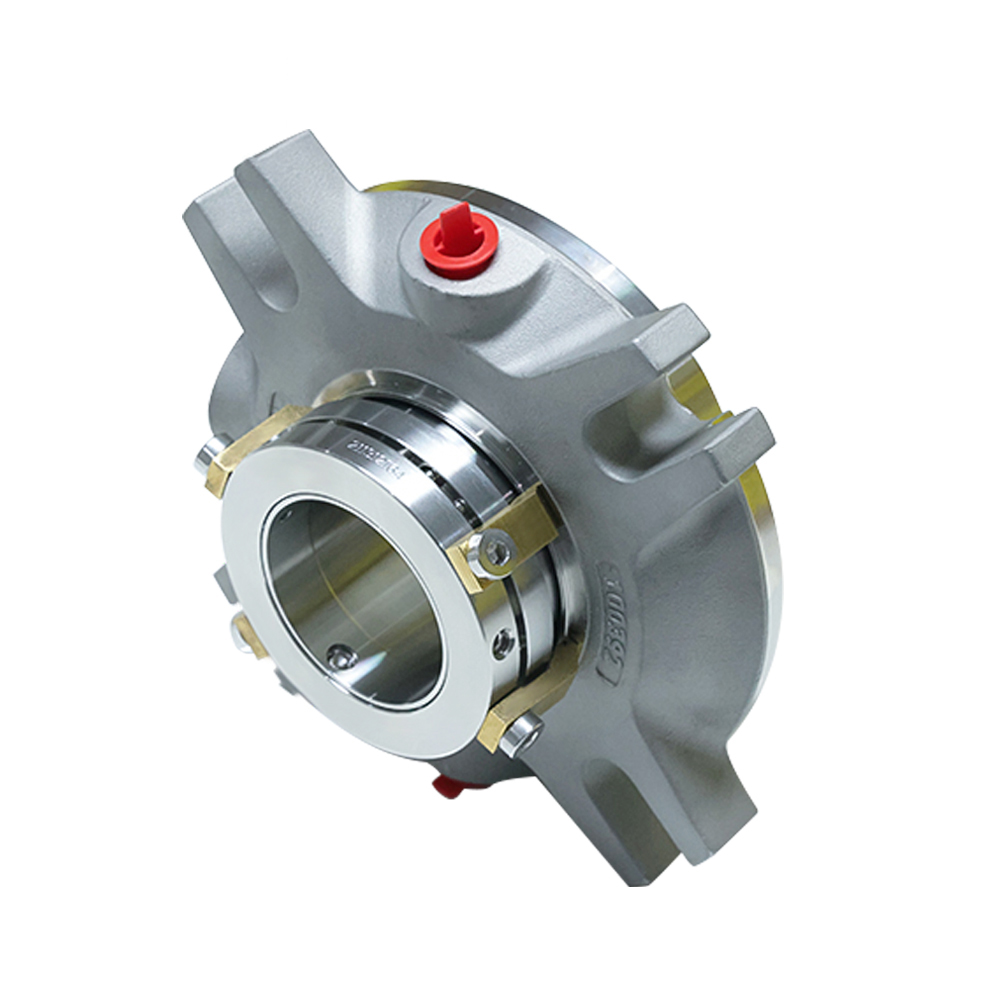

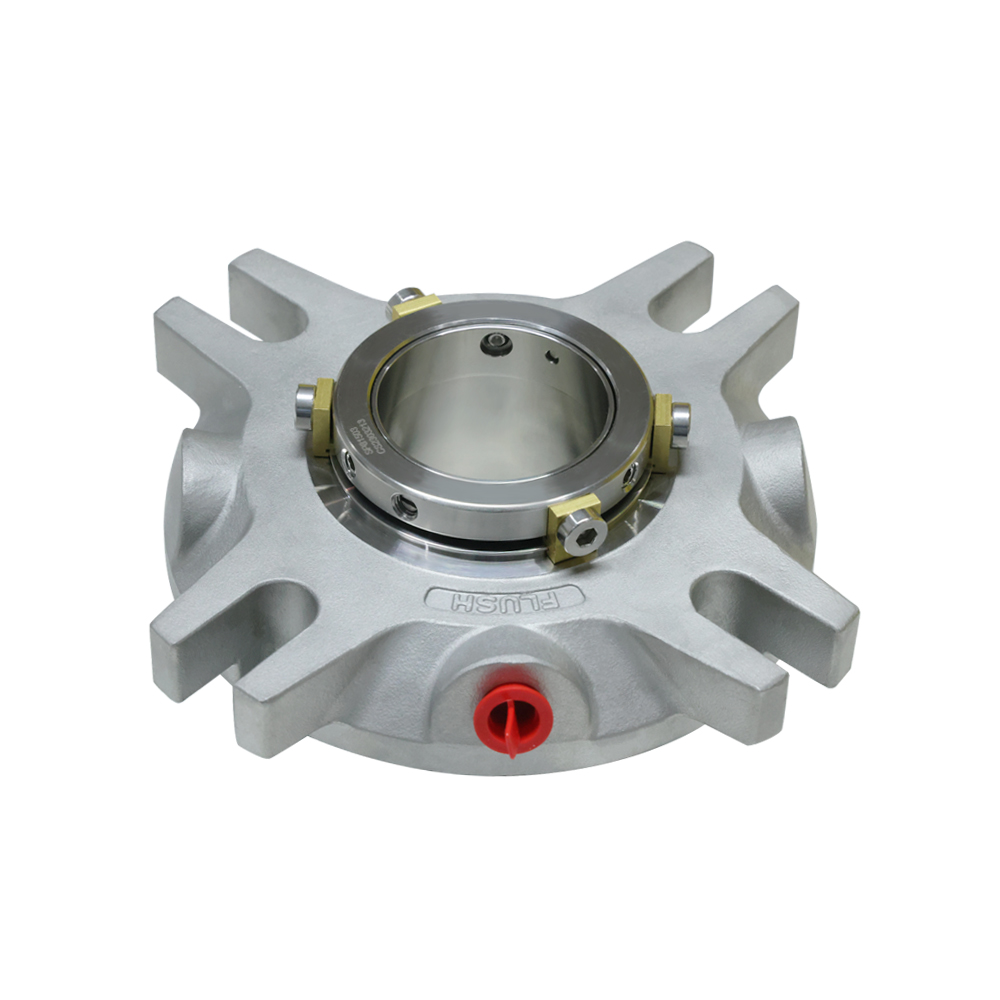

Product Description
TECHNICAL FEATURES
•Rotating and balanced design.
•Rotary pusher cartridge seal.
•Hydraulically balanced seal faces to reduces heat generation, reduces energy consumption, and extends seal life.
•Modular design, standardization of universal components, allows maximum flexibility and delivery performance.
•Multi-Spring Design, springs are placed out of the product media to eliminate clogging and prolong the seal life.
APPLICABLE CHAMBERS TYPE
•Suitable for ANSI standard chambers.
•Complies with ASME B73.1 and B73.2 standard pump chamber dimensions.
•Modular cartridge design, provide sealing solutions for general applications.
•Dimensions range from 1.375 "to 3.625" (34.9mm to 66.67mm).
TYPICAL INDUSTRIAL APPLICATIONS
•Chemical and Petrochemical Industry.
•Oil, Gas and Energy Sector.
•Water Treatment and Environmental Protection Engineering.
•Pharmaceutical and Food & Beverage Industries.
•Hazardous Chemicals and Specialized Industries.
•Marine and Offshore Engineering.
Table Description
RECOMMENDED PIPING PLANS
| Process side | 01, 02, 03, 11, 12, 13, 14, 21, 22, 31, 32, 41 |
PERFORMANCE CAPABILITIES
| Shaft diameter | 1.375 "to 3.625" (34.9mm to 66.67mm) |
| Pressure | ≤ 15 bar |
| Temperature | -20 ° C ~ +120 °C |
| Sliding velocity | ≤ 20 m/s |

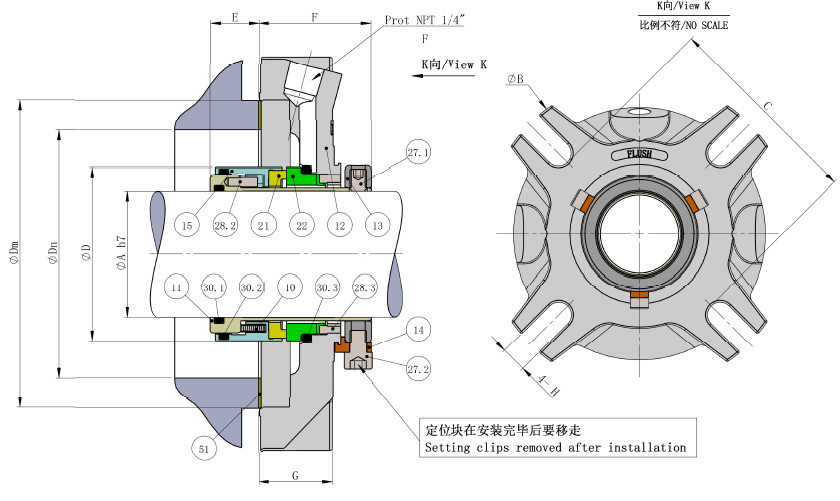

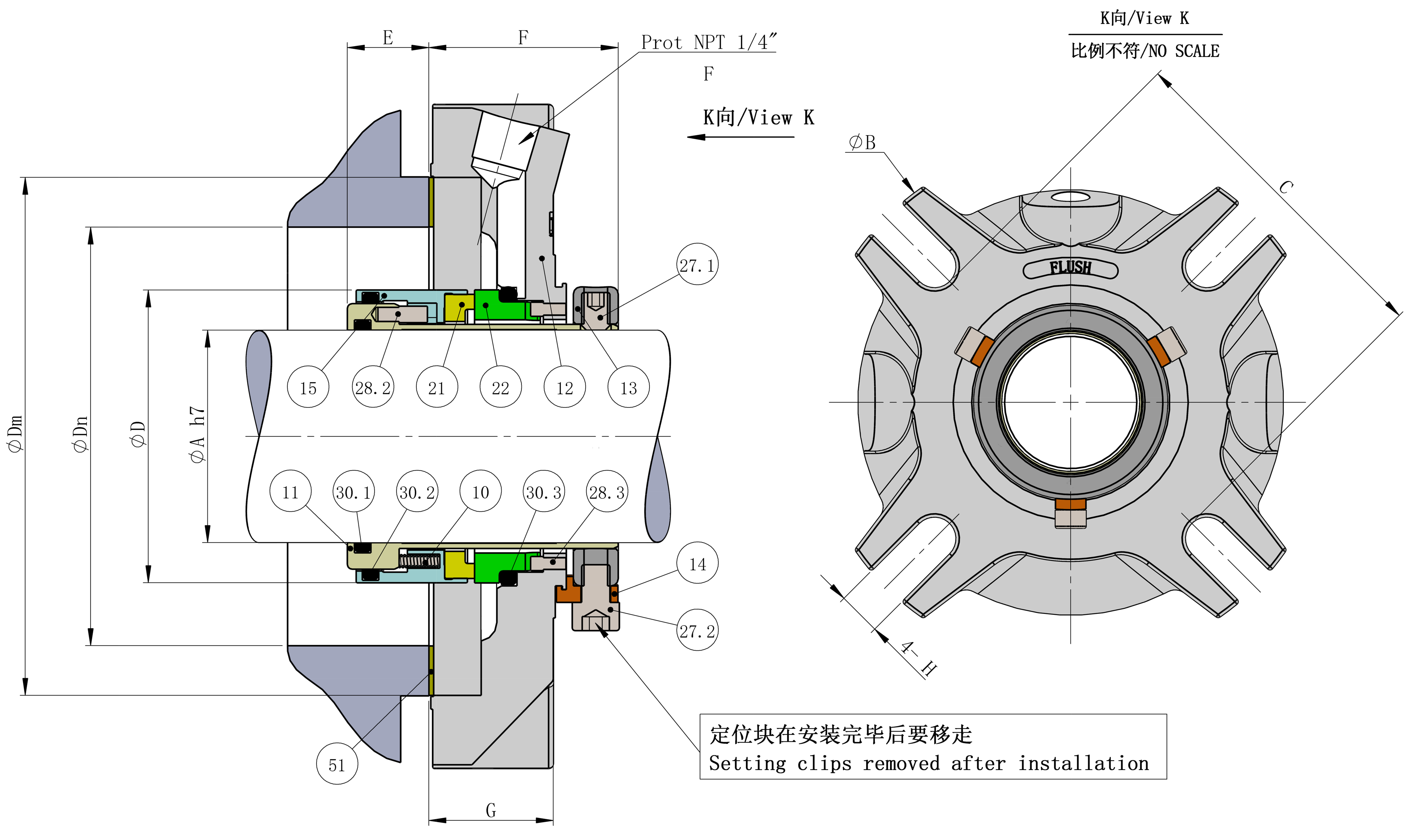

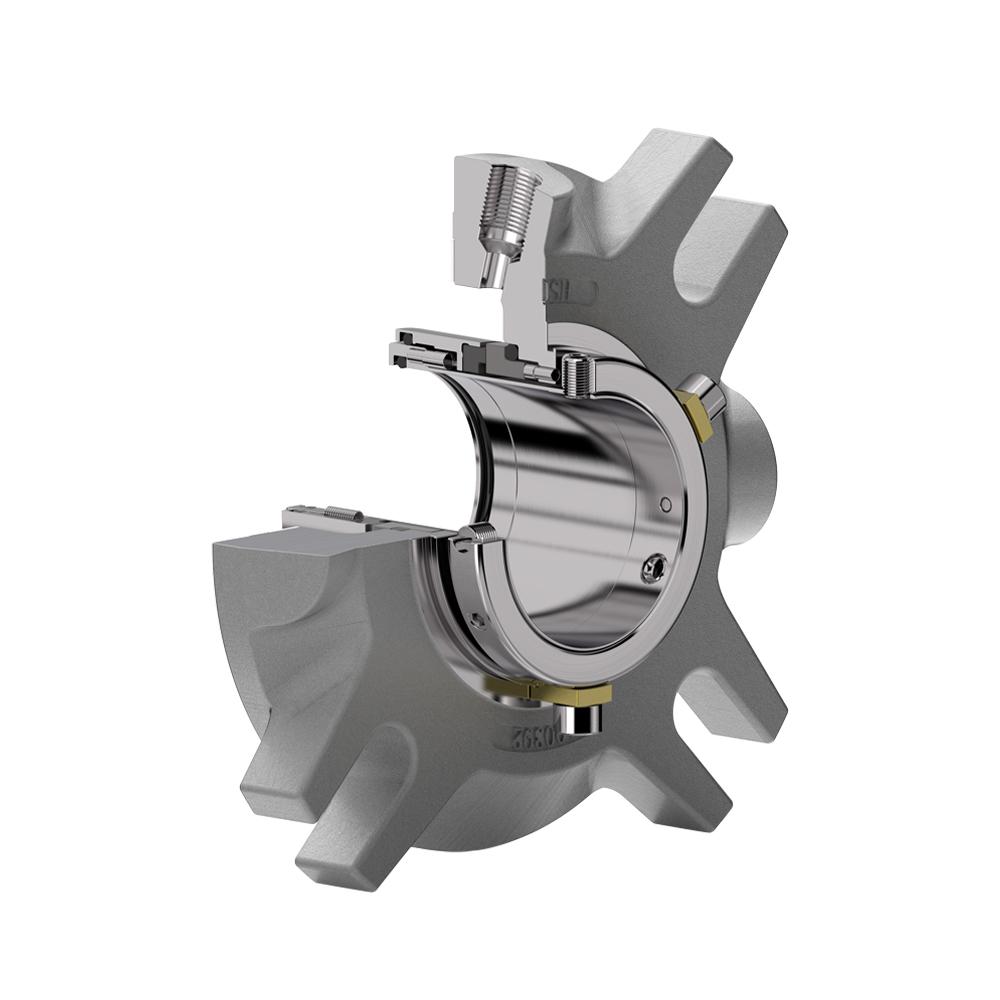

Product Structure Diagram & The comparison chart
| NO. | Name | Material |
| 11 | Shaft Sleeve | 316SS |
| 15 | Rotating Seat | 316SS |
| 21 | Rotary Face | Carbon/SSIC/TC |
| 22 | Stationary Face | SSIC/TC |
| 12 | Gland | 316SS |
| 13 | Clamp Ring | 316SS |
| 30.1,30.2 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 30.3 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 51 | Gasket | PTFE |
| 10 | Spring | Alloy 276 |
| 27.1 | Drive Screw | 316SS |
| 14 | Setting Clip | Brass |
| 27.2 | Clip Screw | 316SS |
| 28.2,28.3 | Pin | 304SS |
