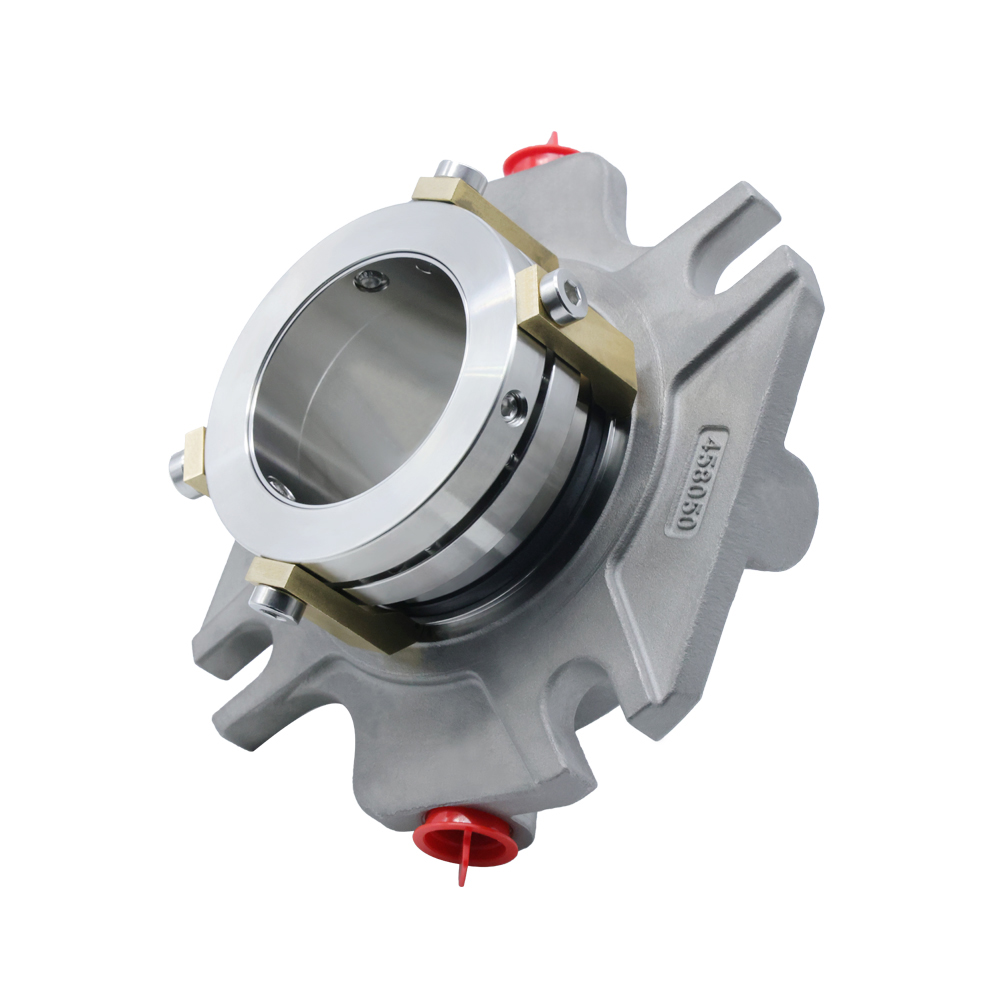

Product Description
TECHNICAL FEATURES
•Rotary pusher cartridge seal with Back-to-back configuration.
•Hydraulically balanced seal faces to reduces heat generation, reduces energy consumption, and extends seal life.
•Modular design, standardization of universal components, allows maximum flexibility and delivery performance.
•Multi-Spring Design, springs are placed out of the product media to eliminate clogging and prolong the seal life.
APPLICABLE CHAMBERS TYPE
•Suitable for Sulzer® APP pump.
•Modular cartridge design, provide sealing solutions for general applications.
•Impeller spacer ring is provided.
•Sizes range from 30, 40, 50, 60, 80 and 90.
TYPICAL INDUSTRIAL APPLICATIONS
•Chemical and Petrochemical Industry.
•Oil, Gas and Energy Sector.
•Water Treatment and Environmental Protection Engineering.
•Pharmaceutical and Food & Beverage Industries.
•Hazardous Chemicals and Specialized Industries.
•Marine and Offshore Engineering.
Table Description
RECOMMENDED PIPING PLANS
| Between seals | 52, 53A, 53B, 53C, 54 |
PERFORMANCE CAPABILITIES
| Shaft diameter | 30, 40, 50, 60, 80,90 |
| Pressure | ≤ 15 bar |
| Temperature | -20 ° C ~ +120 °C |
| Sliding velocity | ≤ 20 m/s |

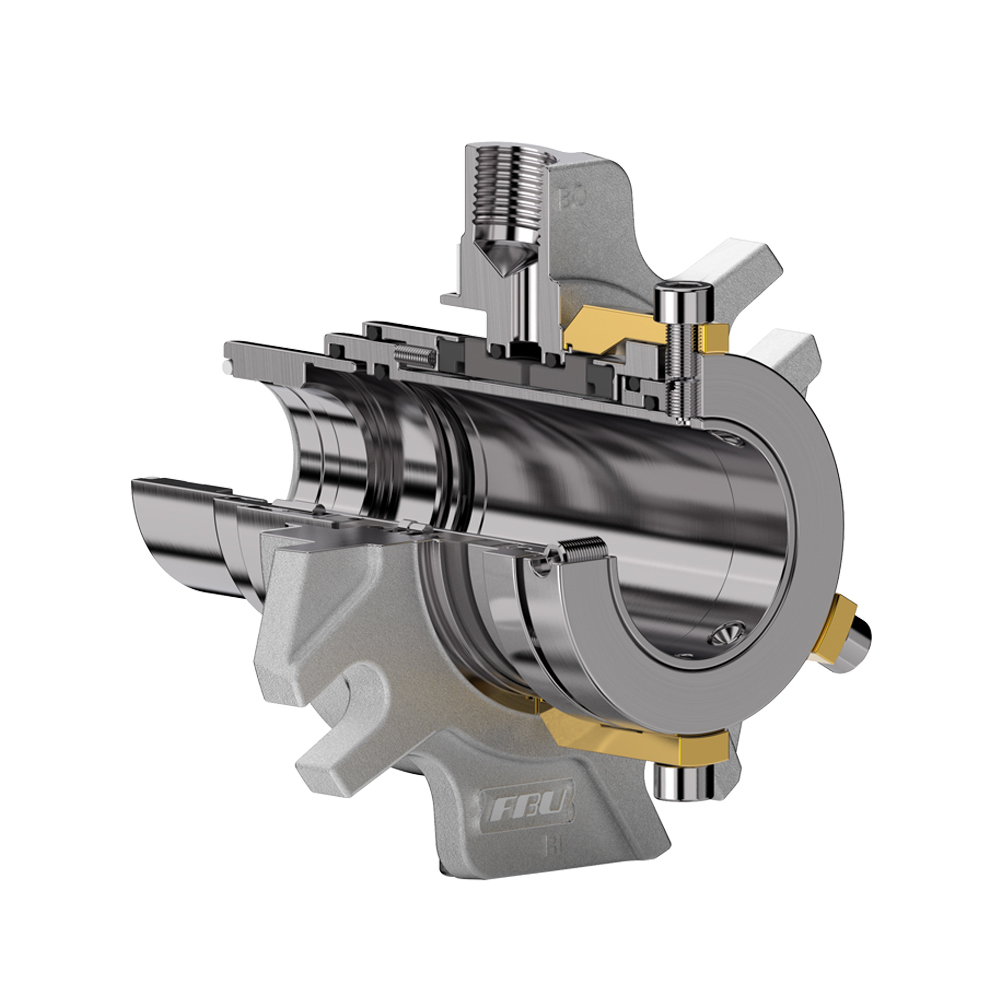

Product Structure Diagram & The comparison chart
| NO. | Name | Material |
| 22 | Stationary Seat | SSIC/TC |
| 21,41 | Rotary Face | SSIC/TC |
| 15 | Rotary Seat | 316SS |
| 35 | External Rotary Seat | 316SS |
| 12 | Gland | 316SS |
| 28.2 | Pin | 316SS |
| 11 | Shaft Sleeve | 316SS |
| 13 | Clamp Ring | 316SS |
| 14 | Setting Clip | 316SS/Cu |
| 27.2 | Clip Screw | 316SS |
| 27.1 | Drive Screw | 316SS |
| 27.3 | Anti-tamper Screws | 316SS |
| 10,20 | Spring | 316SS |
| 30.1,30.2 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 30.3,40.3 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 51 | Gasket | AF1/PTFE |
| 44.1 | Intermediate Sleeve | 316SS |
| 40.2,40.3 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 30.6 | O-Ring | PTFE/FKM/FEP/EPDM |
| 42 | Stationary Seat | SSIC/TC |
