Product Description
TECHNICAL FEATURES

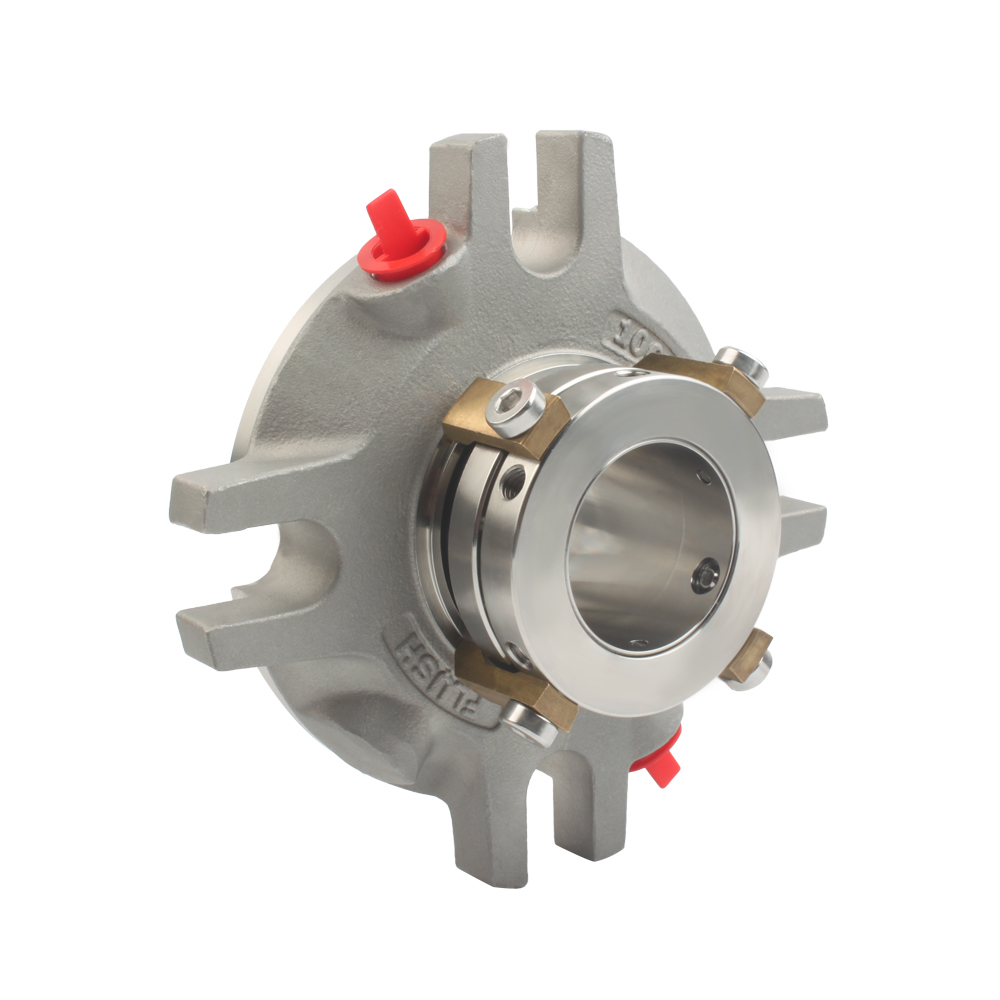

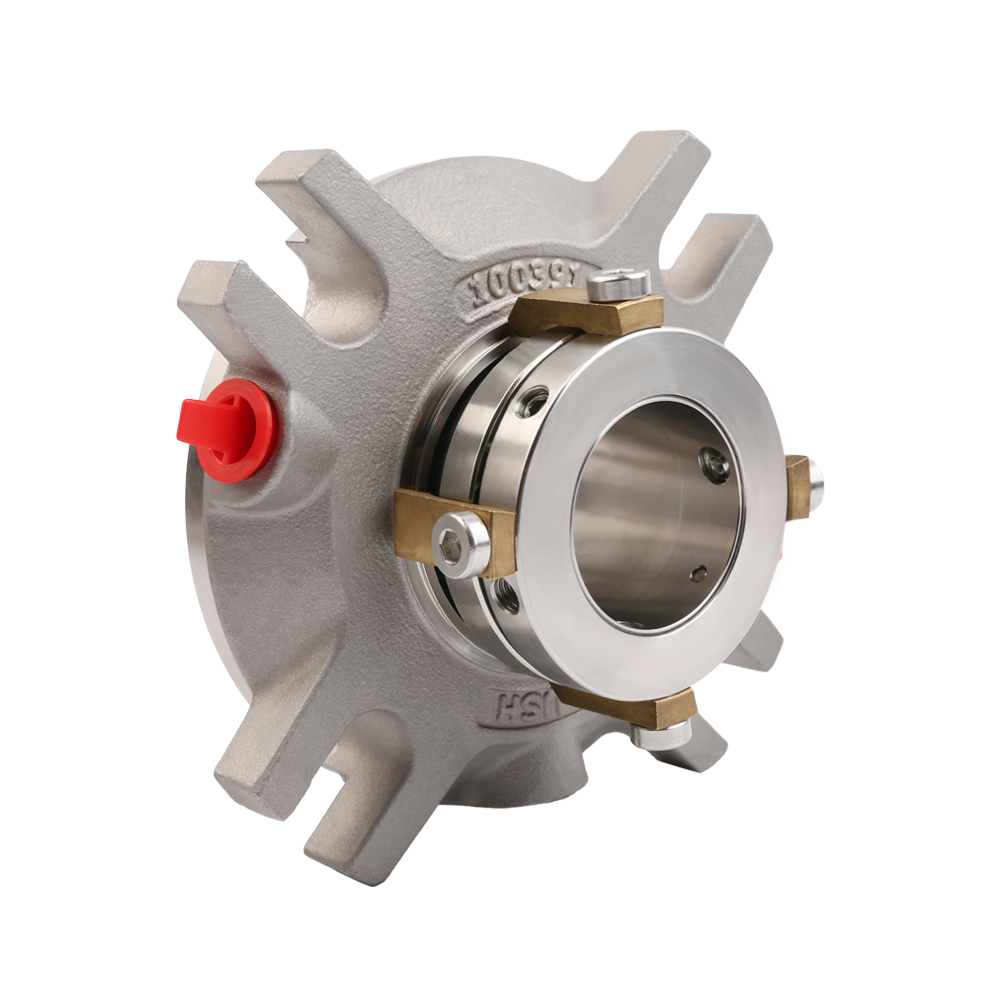

•Rotary pusher cartridge seal with Back-to-back configuration.
•Hydraulically balanced seal faces to reduces heat generation, reduces energy consumption, and extends seal life.
•Modular design, standardization of universal components, allows maximum flexibility and delivery performance.
•Multi-Spring Design, springs are placed out of the product media to eliminate clogging and prolong the seal life.
APPLICABLE CHAMBERS TYPE
•Suitable for ANSI standard chambers.
•Complies with ASME B73.1 and B73.2 standard pump chamber dimensions.
•Modular cartridge design, provide sealing solutions for general applications.
•Dimensions range from 1.375 "to 3.625" (34.9mm to 66.67mm).
TYPICAL INDUSTRIAL APPLICATIONS
•Chemical and Petrochemical Industry
•Oil, Gas and Energy Sector
•Water Treatment and Environmental Protection Engineering
•Pharmaceutical and Food & Beverage Industries
•Hazardous Chemicals and Specialized Industries
•Marine and Offshore Engineering
Table Description
RECOMMENDED PIPING PLANS
| Between seals | 52, 53A, 53B, 53C, 54 |
PERFORMANCE CAPABILITIES
| Shaft diameter | 1.375 "to 3.625" (34.9mm to 66.67mm) |
| Pressure | ≤ 15 bar |
| Temperature | -20 ° C ~ +120 ° |
| Sliding velocity | ≤ 20 m/s |

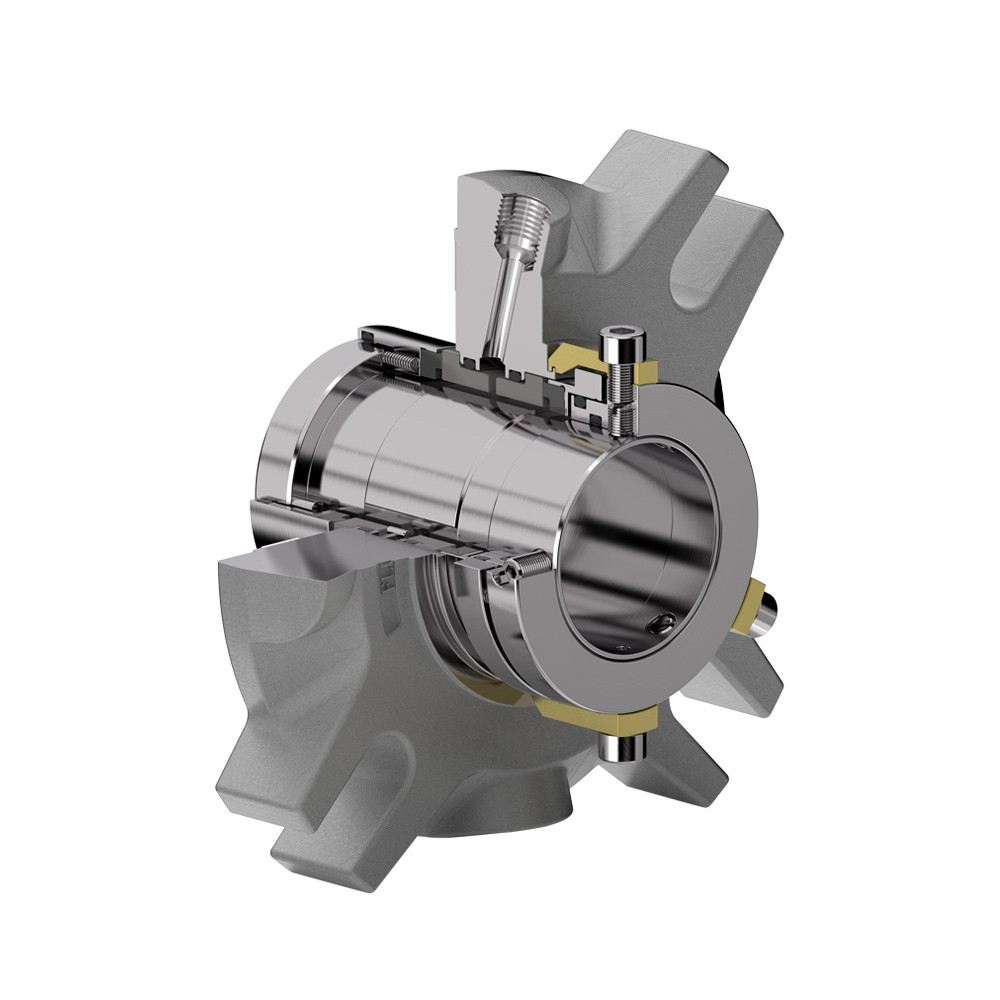

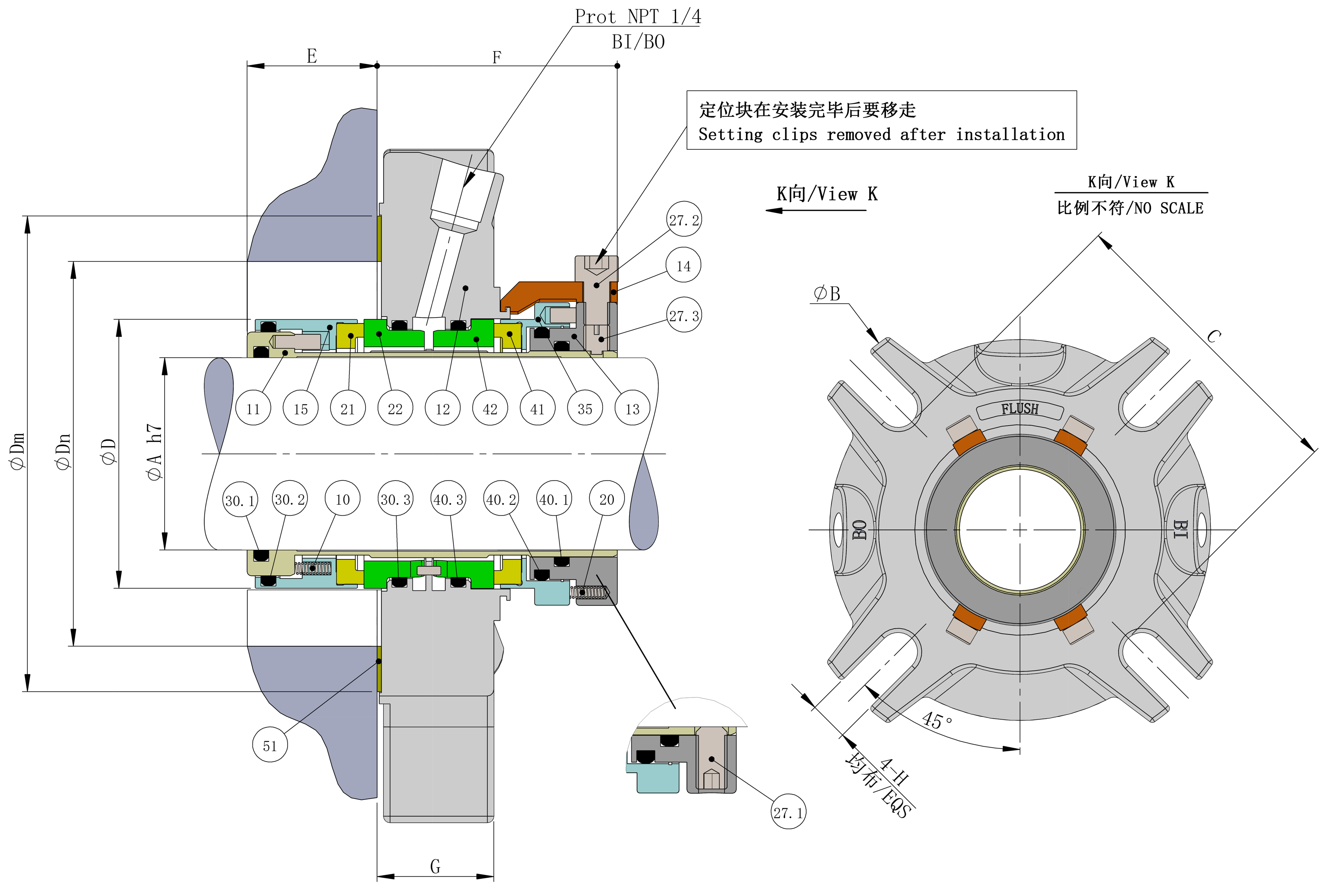

Product Structure Diagram & The comparison chart
| NO. | Name | Material |
| 11 | Shaft Sleeve | 316SS |
| 15 | Internal Rotary Seat | 316SS |
| 21 | Internal Rotary Face | Carbon/SSIC/TC |
| 22 | Internal Stationary Face | SSIC/TC |
| 12 | Gland | 316SS |
| 42 | External Stationary Face | SSIC/TC |
| 41 | External Rotary Face | Carbon/SSIC/TC |
| 35 | External Rotary Seat | 316SS |
| 13 | Clamp Ring | 316SS |
| 30.1,30.2 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 10,20 | Spring | Alloy 276 |
| 30.3,40.3 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 40.2,40.1 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 27.3 | Anti-tamper Screws | 316SS |
| 14 | Setting Clip | Brass |
| 27.2 | Clip Screw | 316SS |
| 27.1 | Drive Screw | 316SS |
| 51 | Gasket | PTFE |
