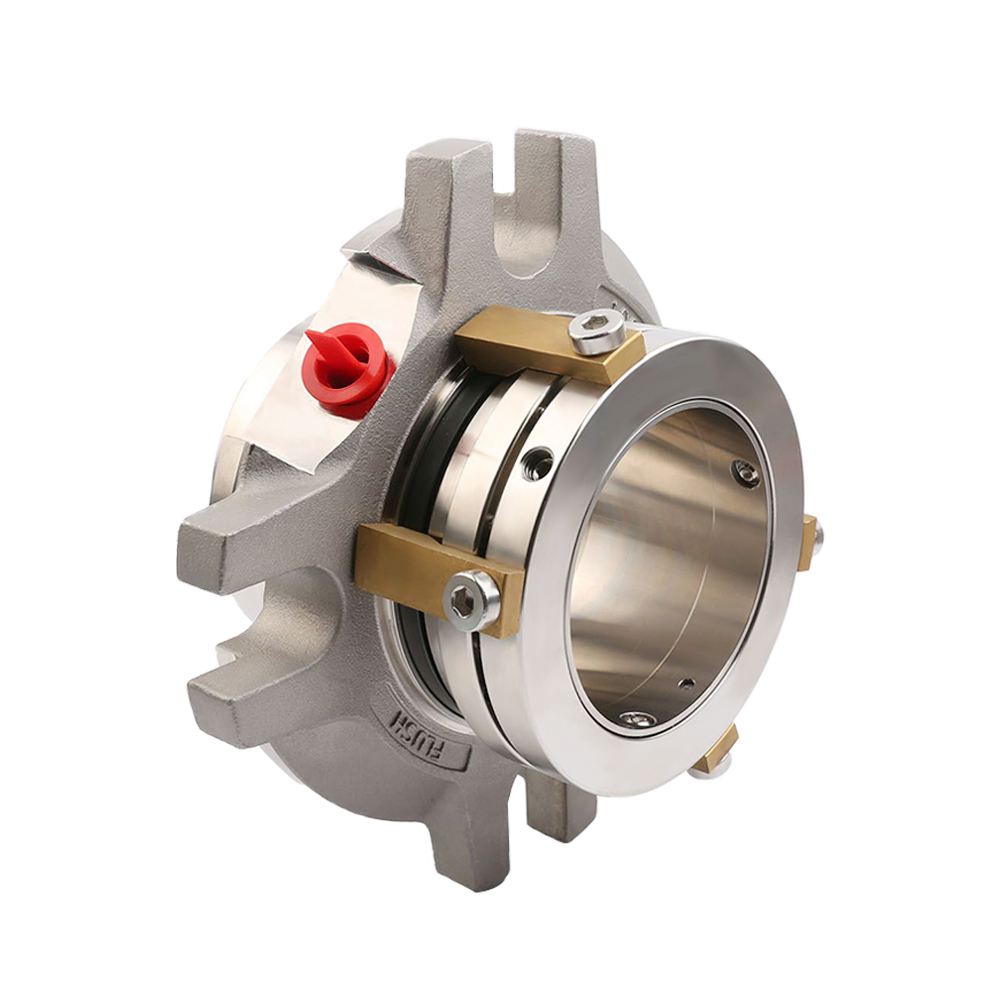

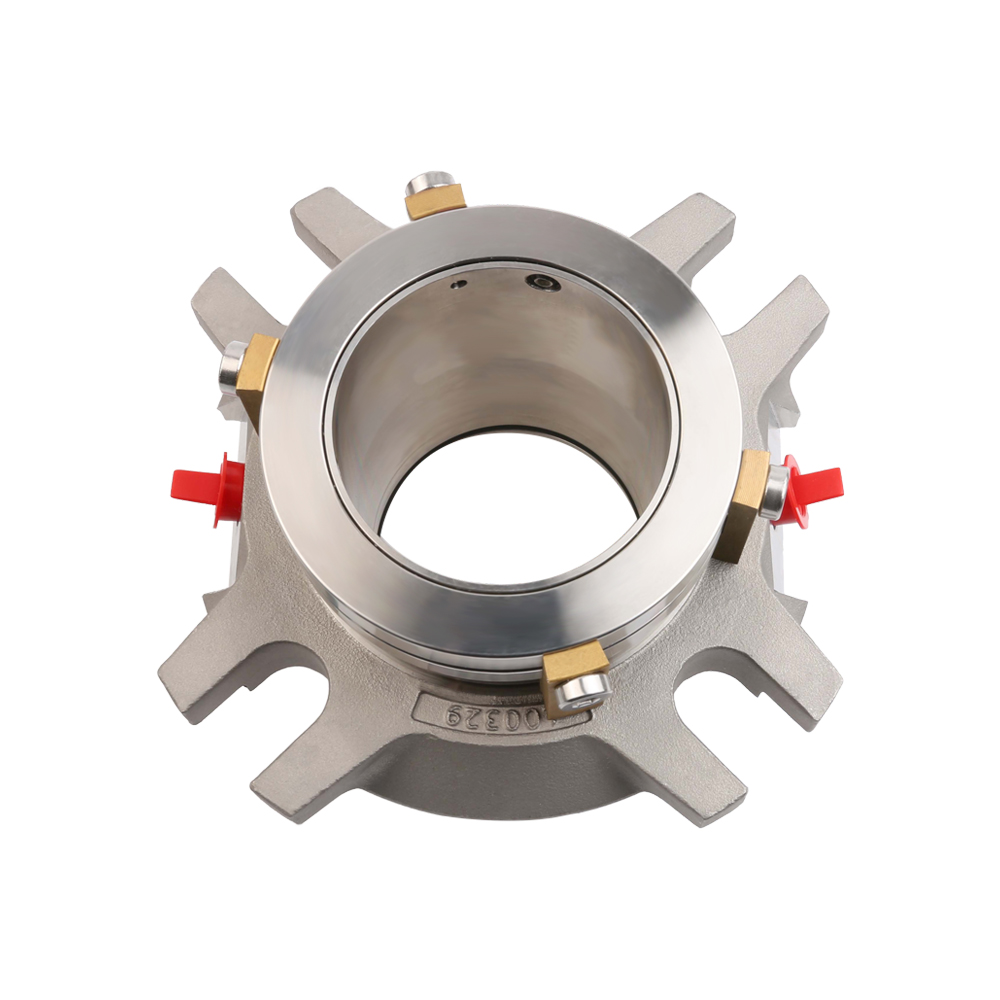

Product Description
TECHNICAL FEATURES
•Rotary pusher cartridge seal with Back-to-back configuration.
•Hydraulically balanced seal faces to reduces heat generation, reduces energy consumption, and extends seal life.
•Modular design, standardization of universal components, allows maximum flexibility and delivery performance.
•Multi-Spring Design, springs are placed out of the product media to eliminate clogging and prolong the seal life.
APPLICABLE CHAMBERS TYPE
•Applicable to ISO2858 standard chambers and other compact chambers.
•Modular cartridge design, provide sealing solutions for general applications.
•Sizes range from 1.000 "to 4.000" (24mm~100mm).
TYPICAL INDUSTRIAL APPLICATIONS
•Chemical and Petrochemical Industry.
•Oil, Gas and Energy Sector.
•Water Treatment and Environmental Protection Engineering.
•Pharmaceutical and Food & Beverage Industries.
•Hazardous Chemicals and Specialized Industries.
•Marine and Offshore Engineering.
Table Description
RECOMMENDED PIPING PLANS
| Between seals | 52, 53A, 53B, 53C, 54 |
PERFORMANCE CAPABILITIES
| Shaft diameter | 1.000 "to 4.000" (24mm~100mm) |
| Pressure | ≤ 15 bar |
| Temperature | -20 ° C ~ +120 °C |
| Sliding velocity | ≤ 20 m/s |

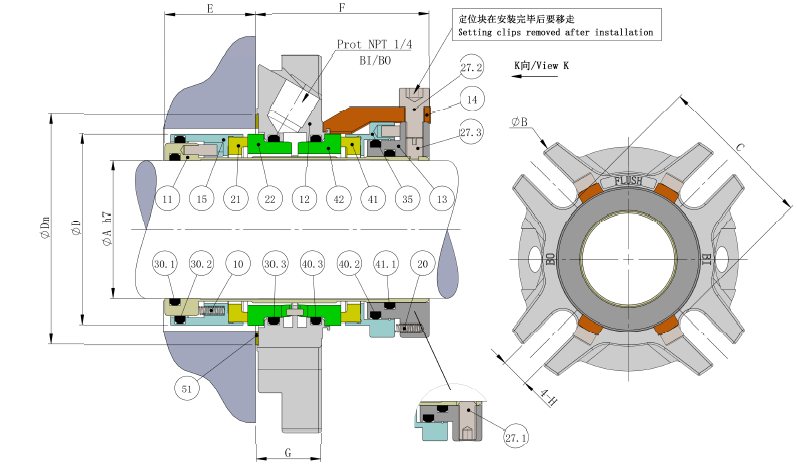

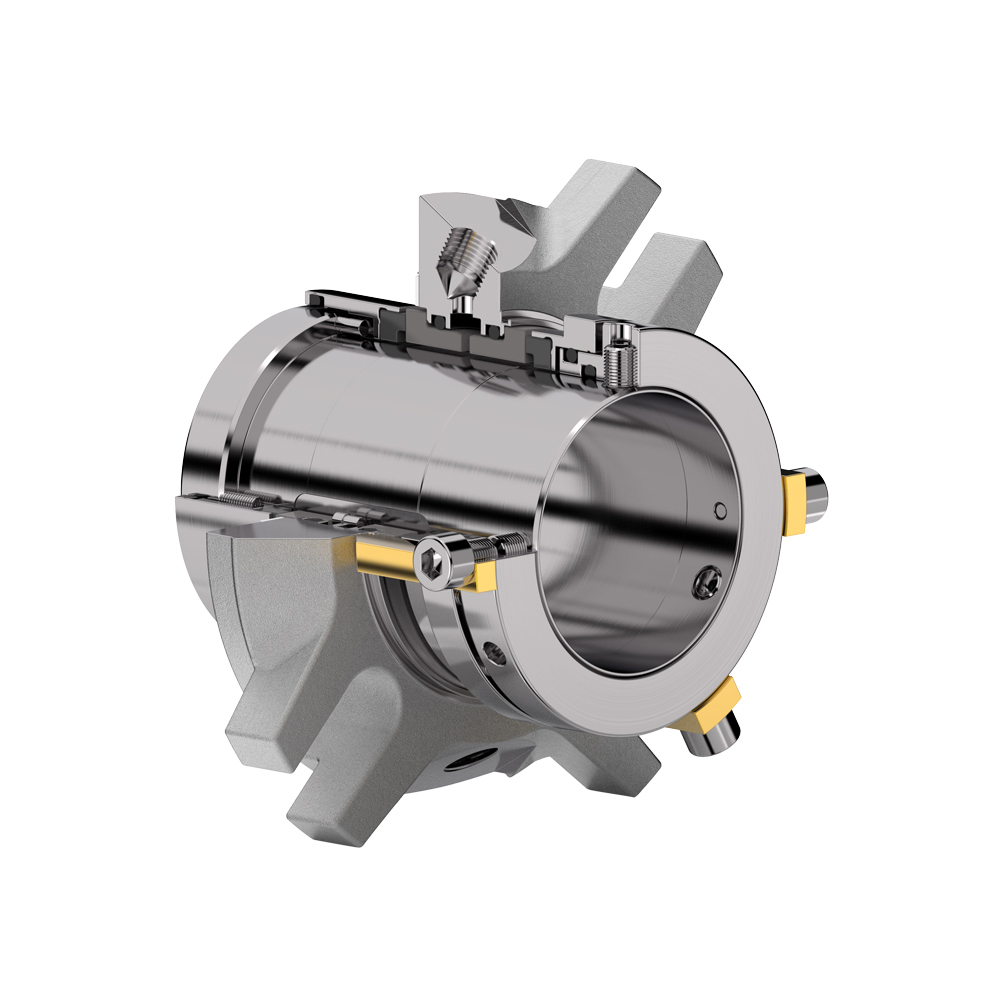

Product Structure Diagram & The comparison chart
| NO. | Name | Material |
| 11 | Shaft Sleeve | 316SS |
| 15 | Internal Rotary Seat | 316SS |
| 21 | Internal Rotary Face | Carbon/SSIC/TC |
| 22 | Internal Stationary Face | SSIC/TC |
| 12 | Gland | 316SS |
| 42 | External Stationary Face | SSIC/TC |
| 41 | External Rotary Face | Carbon/SSIC/TC |
| 35 | External Rotary Seat | 316SS |
| 13 | Clamp Ring | 316SS |
| 30.1,30.2 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 10,20 | Spring | Alloy 276 |
| 30.3,40.3 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 40.2,41.1 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 27.3 | Anti-tamper Screws | 316SS |
| 14 | Setting Clip | Brass |
| 27.2 | Clip Screw | 316SS |
| 27.1 | Drive Screw | 316SS |
| 51 | Gasket | AF1 |
