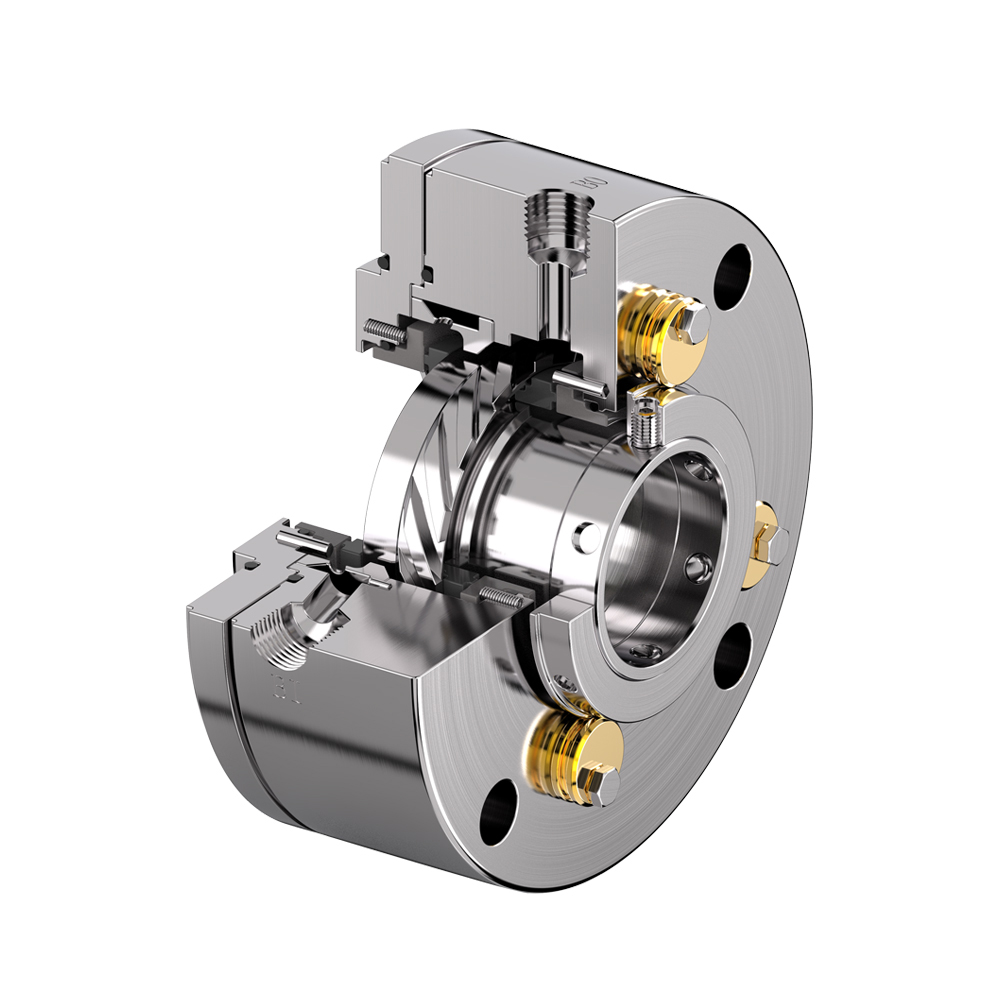

Product Description
Key Features
•Allow for greater axial displacement and radial runout
•Integrated bidirectional flow design, unique pump efficiency ring design, and significant circulation effect
of buffer/isolation liquid.
• The sealing configuration is 3CW-FF,used for layout 3.
• Distributed flushing design,Balanced integrated ring design.
• The structure is simpler and more stable than APOG-FB, making it easier to maintain.
• Supporting API Plan 53A/53B/54.
Specifications
| Key word | APOG-FF Mechanical Seal | |
| Materials | Seal Face | SSIC/TC/CARBON |
| Rubber | EPDM/ FKM /Aflas®/ Kalrez® | |
| Springs | ALLOY 276 | |
| Metal Parts | 316SS/DUPLEX/ALLOY 276/904L | |
| Components | Static ring and dynamic ring | Installed on fixed equipment components and rotating shafts |
| Spring and pressure plate | Provide pressure to ensure tight contact between the static ring and dynamic ring for effective sealing. | |
| Sealing surface lubrication | To reduce friction and heat | |
| Operation Parameters | Temperature | -20°C to +200°C |
| Pressure | ≤40Bar | |
| Linear Speed | ≤30m/s | |
| Sealing product | Petrochemical, Oil ,Gas, water, oil, and other similar media |

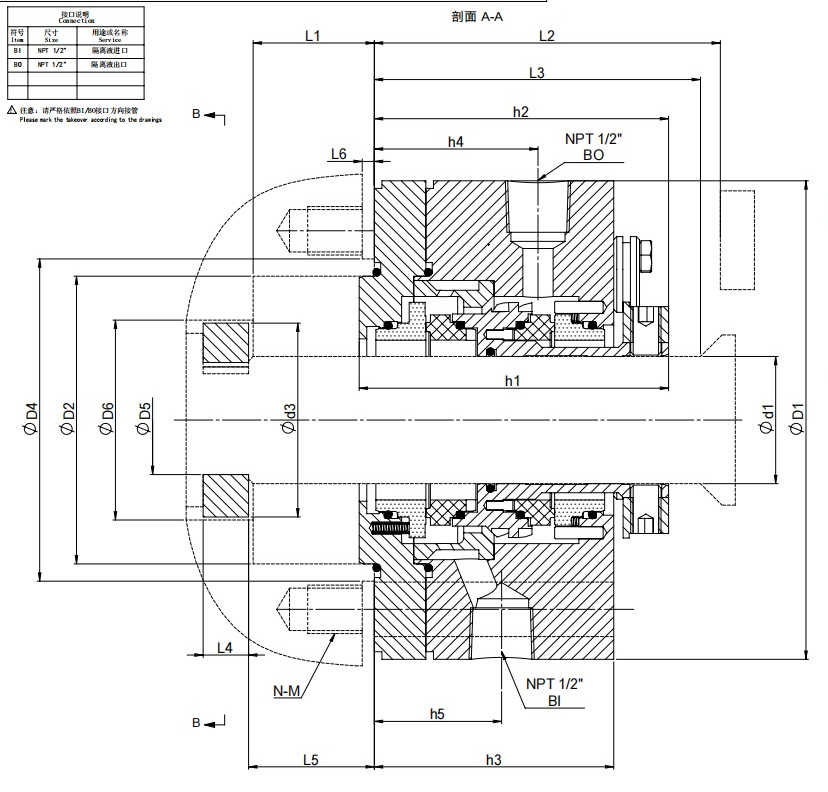

Assembly Chart
