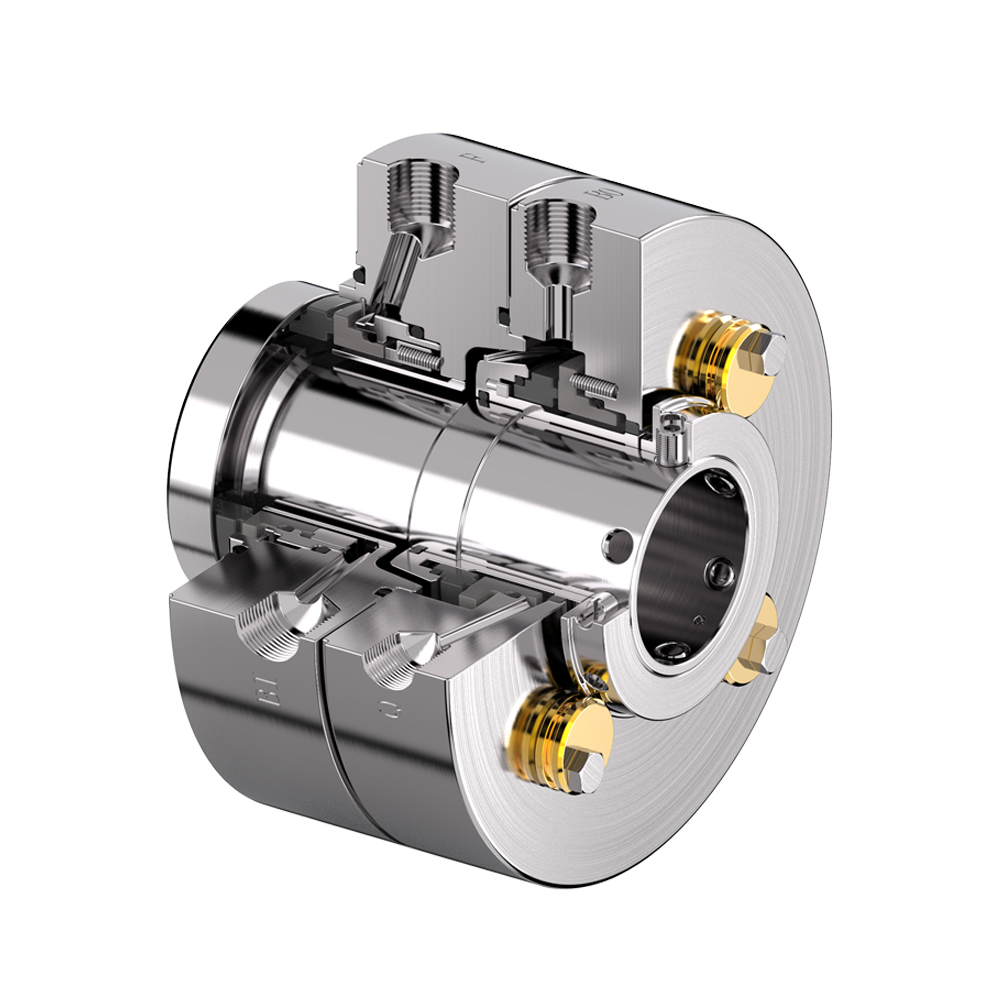

Product Description
Key Features
•The sealing configuration is 3CW-FB, Can also be used as 2CW-CW.
•The inner sealing adopts distributed flushing, which can evenly cool the friction surface.
•The inner sealing adopts a double balanced integral ring design, which can effectively reduce the impact of pressure fluctuations and is suitable for both arrangement 2 and arrangement 3.
•The outer sealing, combined with the Plan 52, provides additional suppression sealing effect, while the Plan 53A/53B/54 maximizes the suppression of high-risk fluid leakage into the atmosphere.
•Well perform under Arrangement 2 or Arrangement 3 operation, containment control or eliminate of process emissions.
•Used for API Plan 52/53A/53B/54/61/62.
Specifications
| Operation Parameters | |
| Temperature | -20°C~ +200°C |
| Pressure | ≤40Bar |
| Linear Speed | ≤30m/s |
| Sealing product | Petrochemical, Oil ,Gas, water, oil, and other similar media |
| Materials | |
| Seal Face | SSIC/TC/CARBON |
| Rubber | EPDM/ FKM /Aflas® / Kalrez® |
| Springs | ALLOY 276 |
| Metal Parts | 316SS/DUPLEX/ALLOY 276/904L |

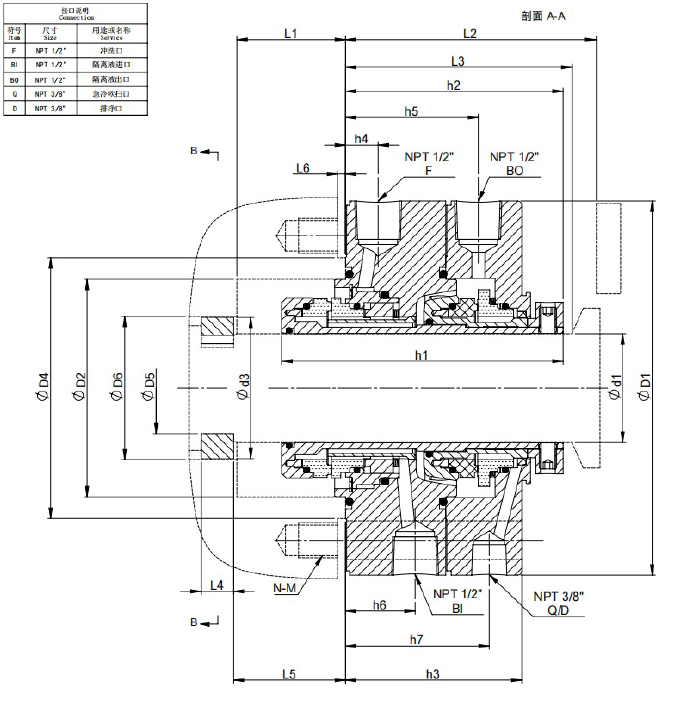

Assembly Chart
