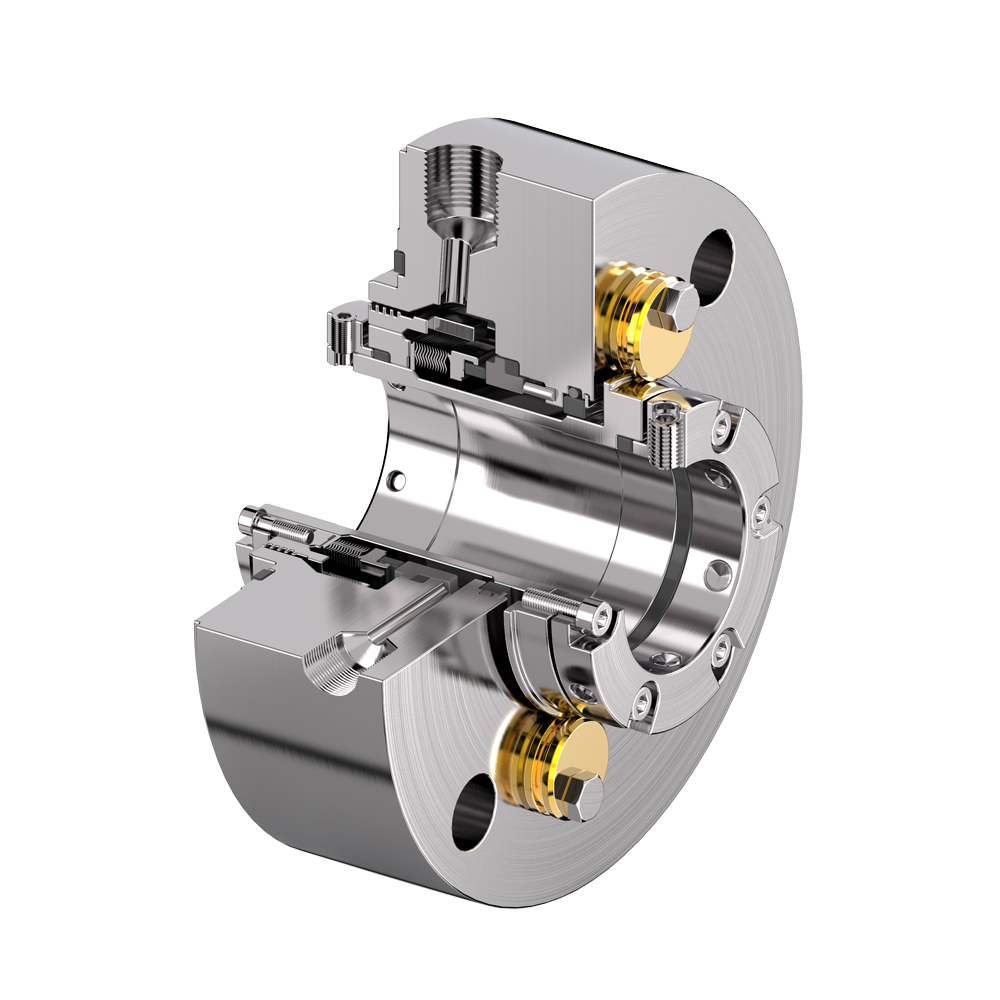

Product Description
Key Features
●Special seal for petroleum and gas chemical pumps that comply with API682standard.
● Balanced integral ring design can better resist pressure fluctuations in the sealing chamber.
● Both the inner and outer sides adopt static ring compensation sealing end face technology.
● Stronger sealing rings, shaft sleeves, and other components.
● Higher pressure limit and temperature limit.
● Innovative distributed flushing design, which uniformly cools the annular surface while flushing away particles accumulated in the annular surface.
● Equipped with uniformly distributed flushing guide rings, which can evenly cool the friction surface.
●Used for API Plan 11/21/31/32/41/61/62.
Specifications
| Operation Parameters | |
| Temperature | -20°C~ +200°C |
| Pressure | ≤40Bar |
| Linear Speed | ≤30m/s |
| Sealing product | Petrochemical, Oil ,Gas, water, oil, and other similar media |
| Materials | |
| Seal Face | SSIC/TC/CARBON |
| Rubber | EPDM/ FKM /Aflas® / Kalrez® |
| Springs | ALLOY 276 |
| Metal Parts | 316SS/DUPLEX/ALLOY 276/904L |

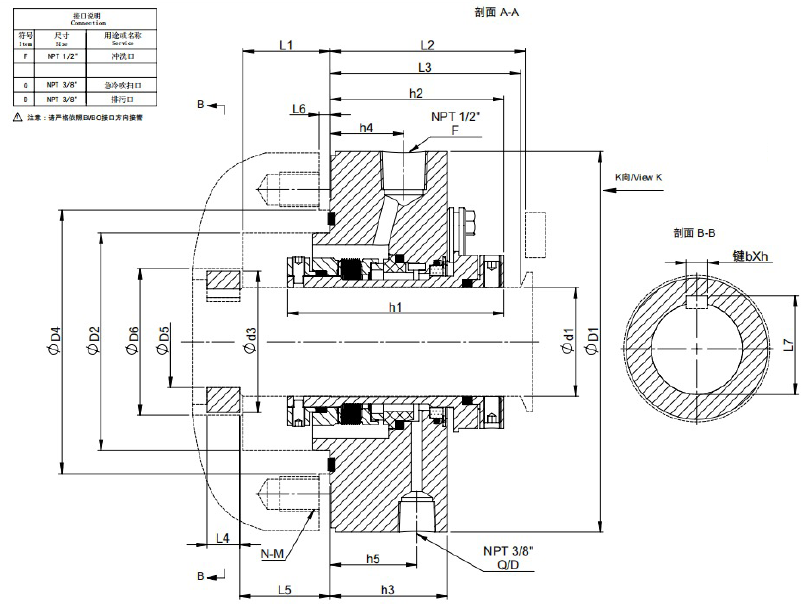

Assembly Chart
