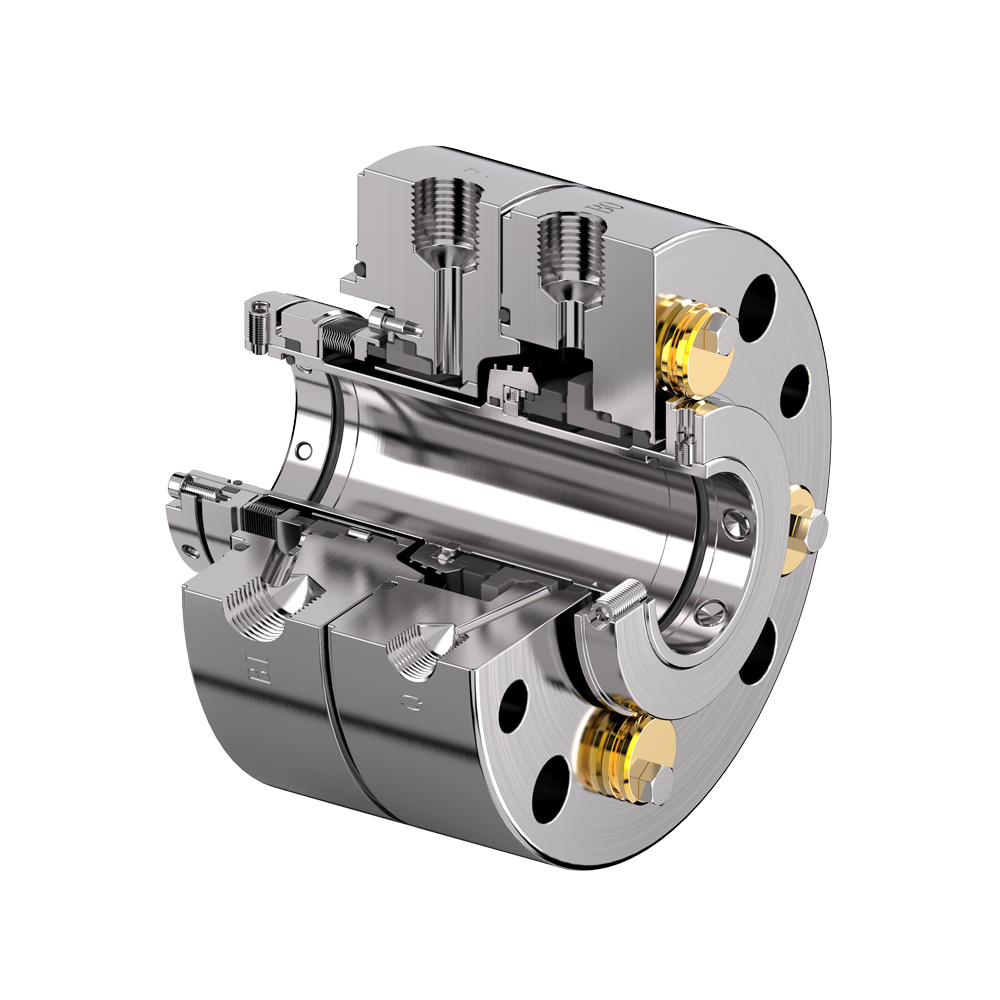

Product Description
Key Features
•The front end is designed with a corrugated pipe, which can withstand higher temperatures of the medium.
•The inner sealing adopts distributed flushing, which can evenly cool the friction surface.
•The inner sealing is suitable for both arrangement 2 and arrangement 3. The arrangement 2 is superior to 3.
•The outer sealing, combined with the Plan 52, provides additional suppression sealing effect, while the Plan 53A/53B/54 maximizes the suppression of high-risk fluid leakage into the atmosphere.
•Efficient pumping scroll design for better circulation effect.
•Used for API Plan 52/53A/53B/54/61/62.
Specifications
| Key word | APOG Mechanical Seal | |
| Materials | Seal Face | SSIC/TC/CARBON |
| Rubber | EPDM/ FKM /Aflas/ Kalrez | |
| Springs | ALLOY 276 | |
| Metal Parts | 316SS/DUPLEX/ALLOY 20/Hast.C276/Titanium/Zirconium etc. | |
| Components | Static ring and dynamic ring | Installed on fixed equipment components and rotating shafts |
| Spring and pressure plate | Provide pressure to ensure tight contact between the static ring and dynamic ring for effective sealing. | |
| Sealing surface lubrication | To reduce friction and heat | |
| Operation Parameters | Temperature | -20°C to +250°C |
| Pressure | ≤40Bar | |
| Linear Speed | ≤30m/s | |
| Sealing product | Petrochemical, Oil ,Gas, water, oil, and other similar media |

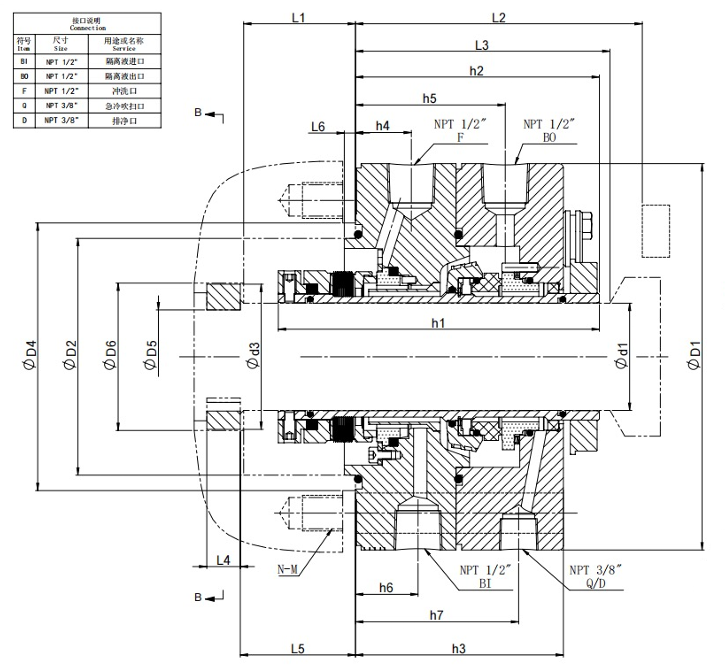

Assembly Chart
