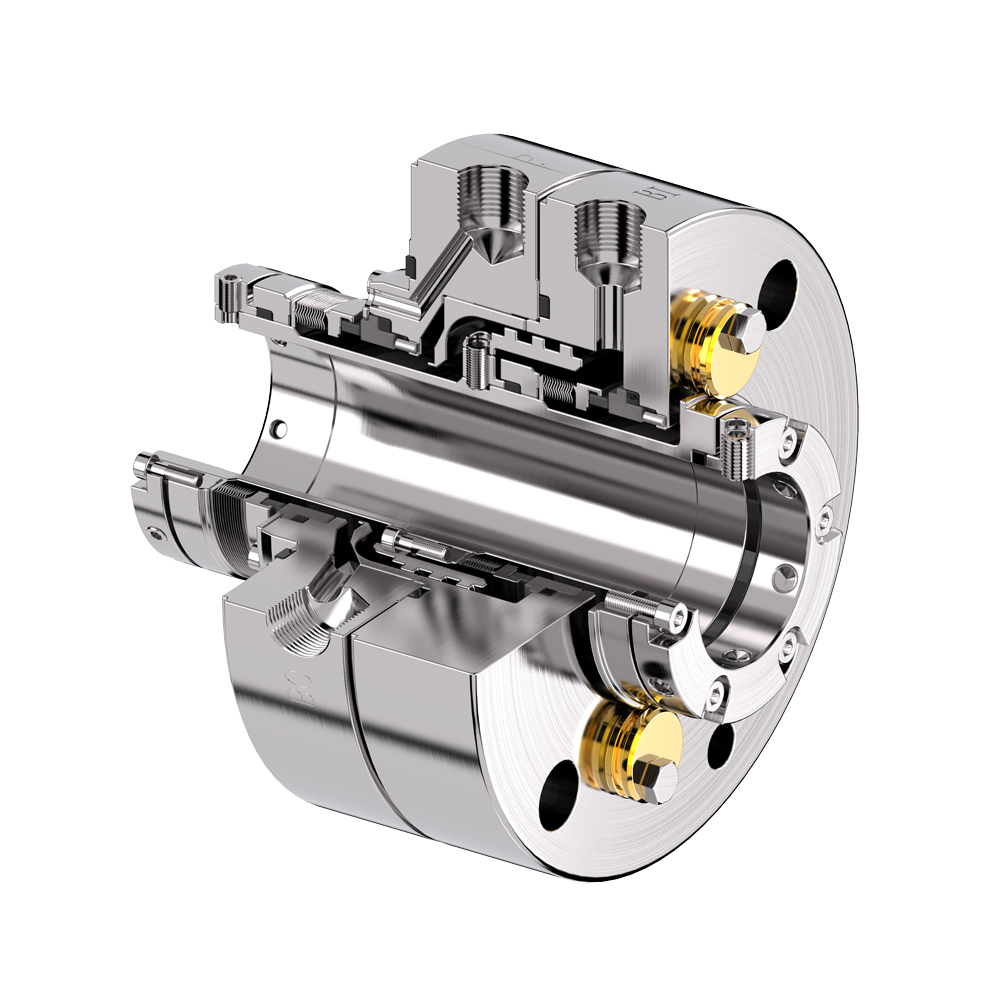

Product Description
Key Features
•The sealing configuration is 3CW-FB, Can also be used as 2CW-CW.
•The inner sealing adopts distributed flushing, which can evenly cool the friction surface.
•The inner sealing adopts a double balanced integral ring design, which can effectively reduce the impact of pressure fluctuations and is suitable for both arrangement 2 and arrangement 3.
•The outer sealing, combined with the Plan 52, provides additional suppression sealing effect, while the Plan 53A/53B/54 maximizes the suppression of high-risk fluid leakage into the atmosphere.
•Well perform under Arrangement 2 or Arrangement 3 operation, containment control or eliminate of process emissions.
•Used for API Plan 52/53A/53B/54.
Specifications
| Key word | APOG-CFB Mechanical Seal | |
| Materials | Seal Face | SSIC/TC/CARBON |
| Rubber | EPDM/ FKM /Aflas®/ Kalrez® | |
| Springs | ALLOY 276 | |
| Metal Parts | 316SS/DUPLEX/ALLOY 276/904L | |
| Components | Static ring and dynamic ring | Installed on fixed equipment components and rotating shafts |
| Spring and pressure plate | Provide pressure to ensure tight contact between the static ring and dynamic ring for effective sealing. | |
| Sealing surface lubrication | To reduce friction and heat | |
| Operation Parameters | Temperature | -20°C to +200°C |
| Pressure | ≤40Bar | |
| Linear Speed | ≤30m/s | |
| Sealing product | Petrochemical, Oil ,Gas, water, oil, and other similar media |

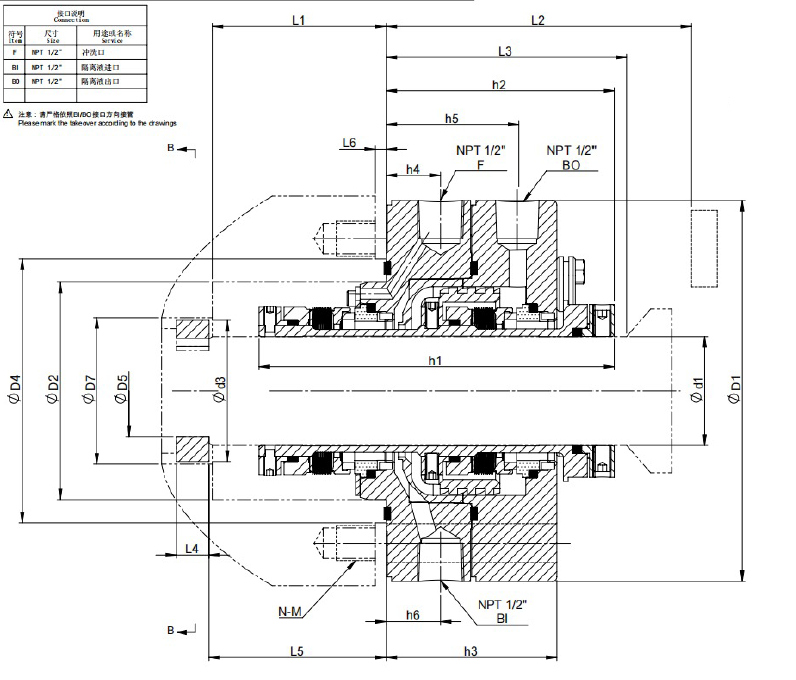

Assembly Chart
