Product Description
Key Features

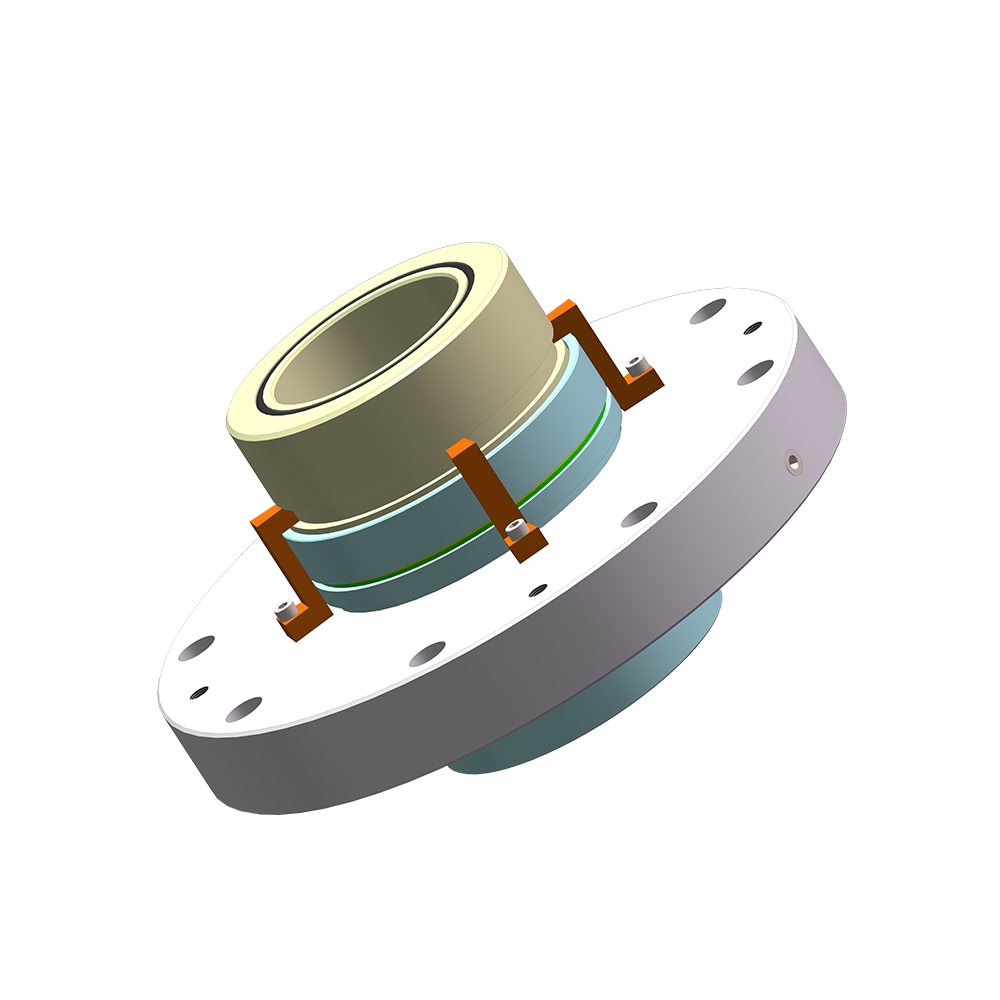

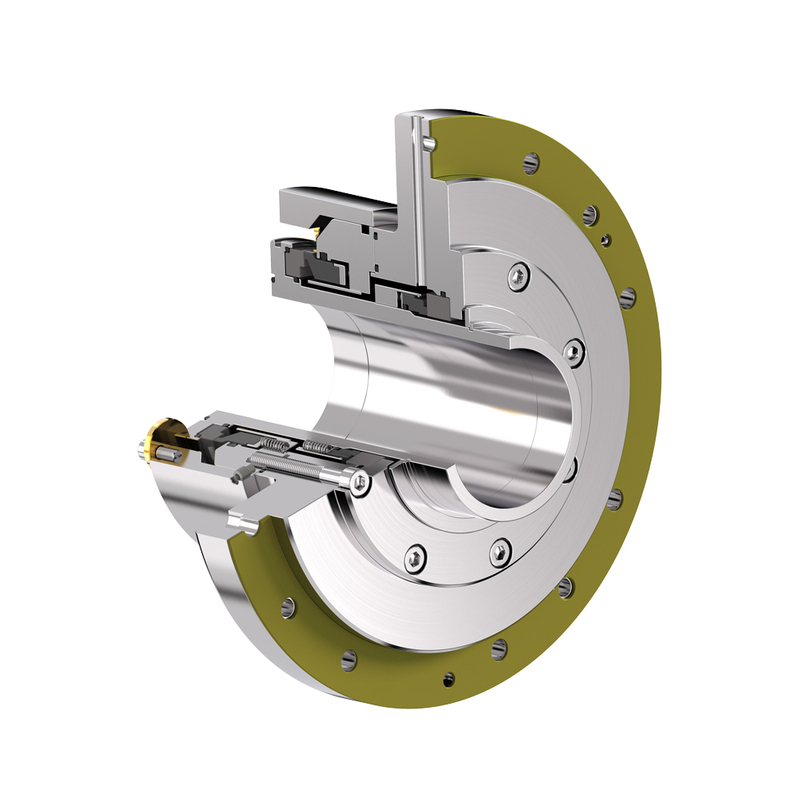

Stationary Pusher Seal, balanced design.
Double seal with multi spring structure, Sliding O-ring design has a large axial displacement.
Larger buffer chamber flushing space, bidirectional flow design, more significant cooling effect.
Shaft diameters of 54,55,70,94,101 etc.
Suitable for Plan 52.53A.54.55.
Specifications
| Key word | 2850 Mechanical Seal | |
| Operation Parameters | Temperature | max 180°C (350°F) |
| Seal water pressure | max 15 bar (215 psi) | |
| Speed | max 30 m/s (90 ft/s) | |
| Seal Face | SiC/SiC (product side) SiC/Carbon (atmosphere side) | |
| Metals | Standard material AlSl 329 ( Titanium, UHB) | |
| Springs | Nimonic steel | |
