Product Description
Key Features
Sets of multi spring structures on the inner and outer sides of the double seal provide more stable spring loads for the two pairs of friction pairs, without affecting each other.
Double balanced design of seal faces.
New type of diversion pipe diversion design, buffering fluid directly to the friction pair.
Sizes can be customized, with shaft diameters ranging from 55 to 220.
Suitable for Plan 52,53A,54,55.
Specifications

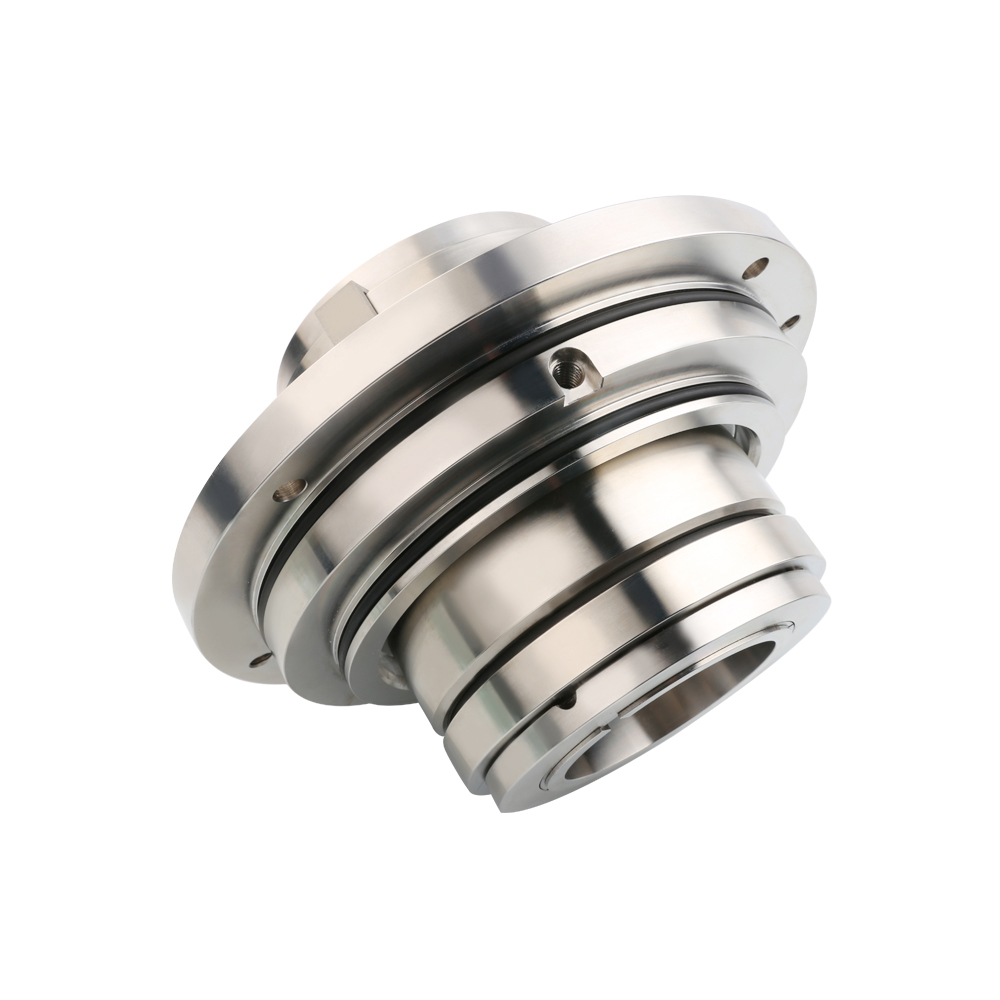

| Key word | 2750 Mechanical Seal | |
| Operation Parameters | Temperature | -20ºC~+140ºC |
| Pressure | 25Bar | |
| Speed | 20 M/S | |
| Seal Face | Silicon carbide(Q12), Carbon(A) | |
| Metals | CrNiMo steel(G),Grade 5A(4T), SMO 654(4U) | |
| Secondary seals | FKM(V), EPDM(E), FFKM(K) | |
