Product Description
Key Features

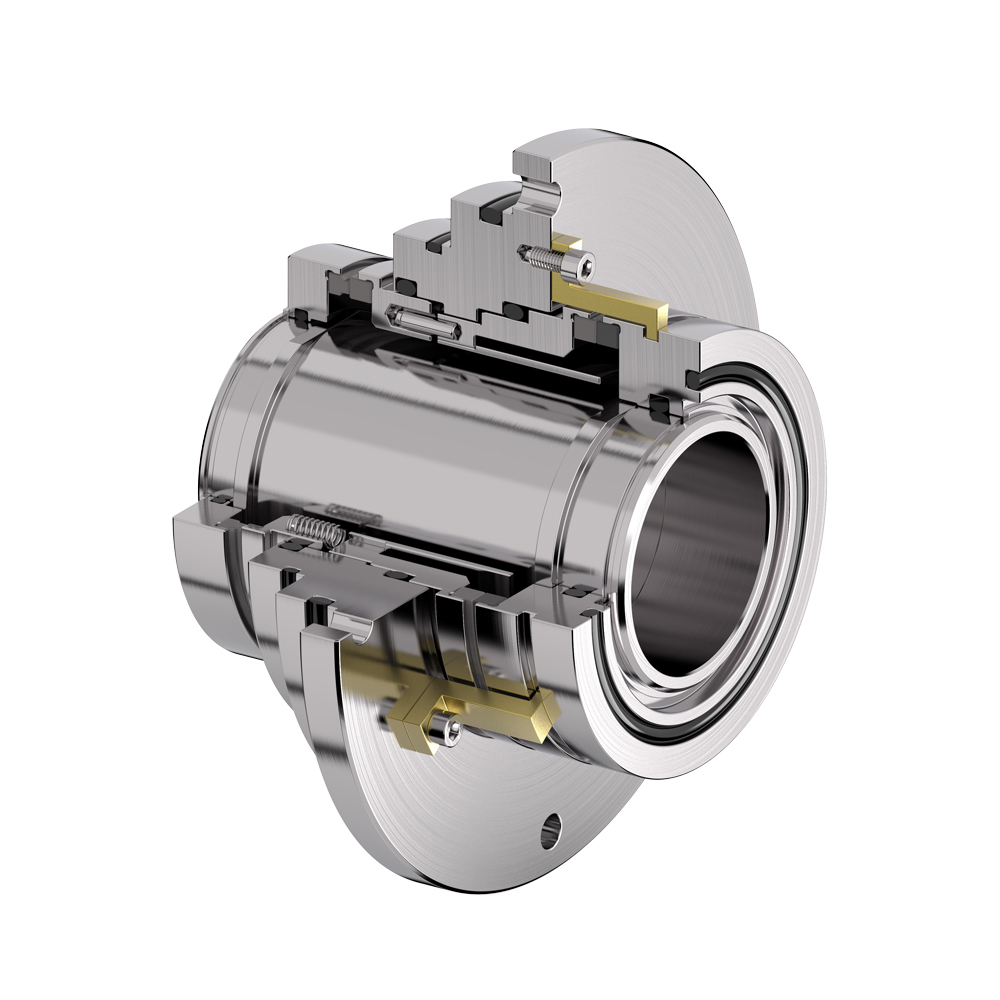

•Stationary Pusher Seal, balanced design.
•Double seal with multi spring structure, Sliding O-ring design has a large axial displacement.
•Larger buffer chamber flushing space, bidirectional flow design, more significant cooling effect.
•Suitable for Plan 52,53A,54,55.
•Ahlstrom R Moduscreen Ahlsorter models of F1 to F5.
•Valmet R models of TL100,TL200,TL300,TL450,TL600 etc.
•Can suitable for Plan 52/53A/54/55.
Specifications
| Key word | 2650 Mechanical Seal | |
| Operation Parameters | Temperature | 40~300 ºC |
| Water Pressure | 215 psi(g)/15 bar(g) | |
| Speed limits | 20 M/S | |
| Seal Face | SiC | |
| Metals | AISI329,UHB,Titanium | |
| Springs | Nickel alloy steel | |
