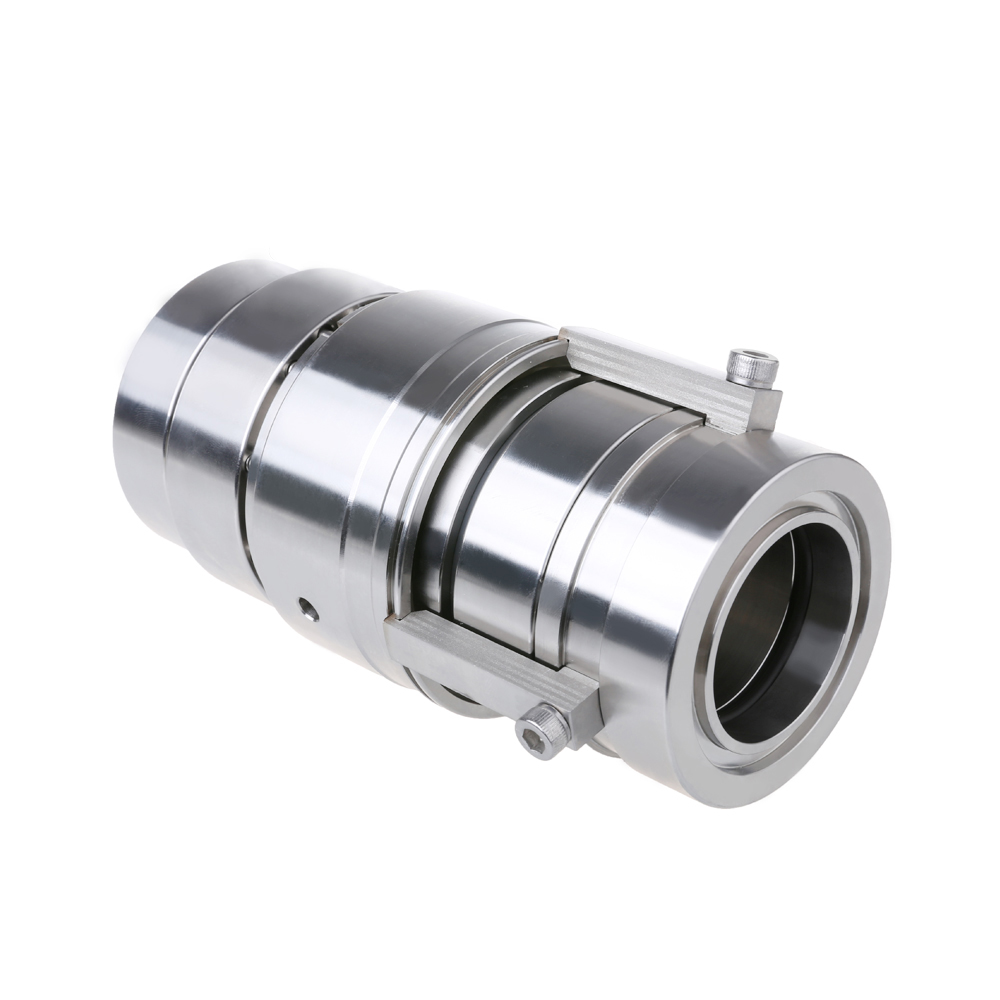

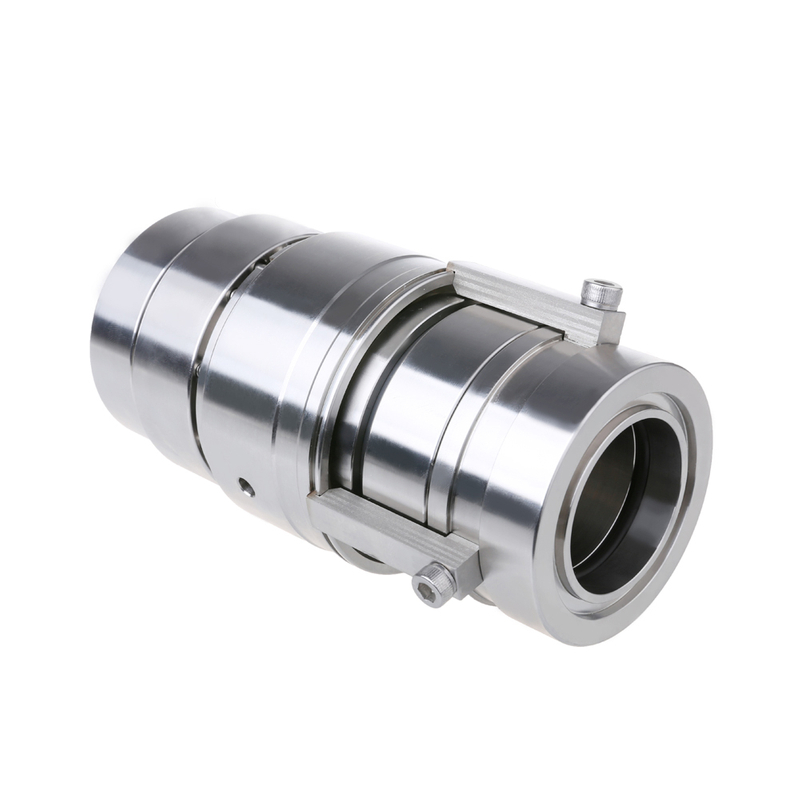

Product Description
Key Features
• Stationary Pusher Seal, balanced design.
• Double seal with multi spring structure, Axial movement does not affect the spring load.
• Suitable for critical applications, both used for top and side mixers, can be used for Plan 52,53A,54.55
• Shaft diameters of 45.58.77.108 etc.
• Can replace Plan 52 53A 54 55.
Specifications
| Key word | 2450 Mechanical Seal | |
| Operation Parameters | Temperature | -20ºC~180ºC, Temperature Mechanical Seal |
| Pressure | Low Pressure, 5.0 MPa, Low Mechanical Seal | |
| Linear Speed | 1500-3000 M/S, General Speed Mechanical Seal | |
| Sealing product | Acid, alkaline, low percentage of pulp, water, oil and other similar media | |
| Materials | Seal Face | Carbon,SiC, SSiC, TC |
| Rubber | EPDM, FKM,FFKM,Chemraz | |
| Springs | EN 1.4436 (AISI 316) | |
| Metal Parts | EN 1.4436/1.4460 (AISI 316/329) | |
