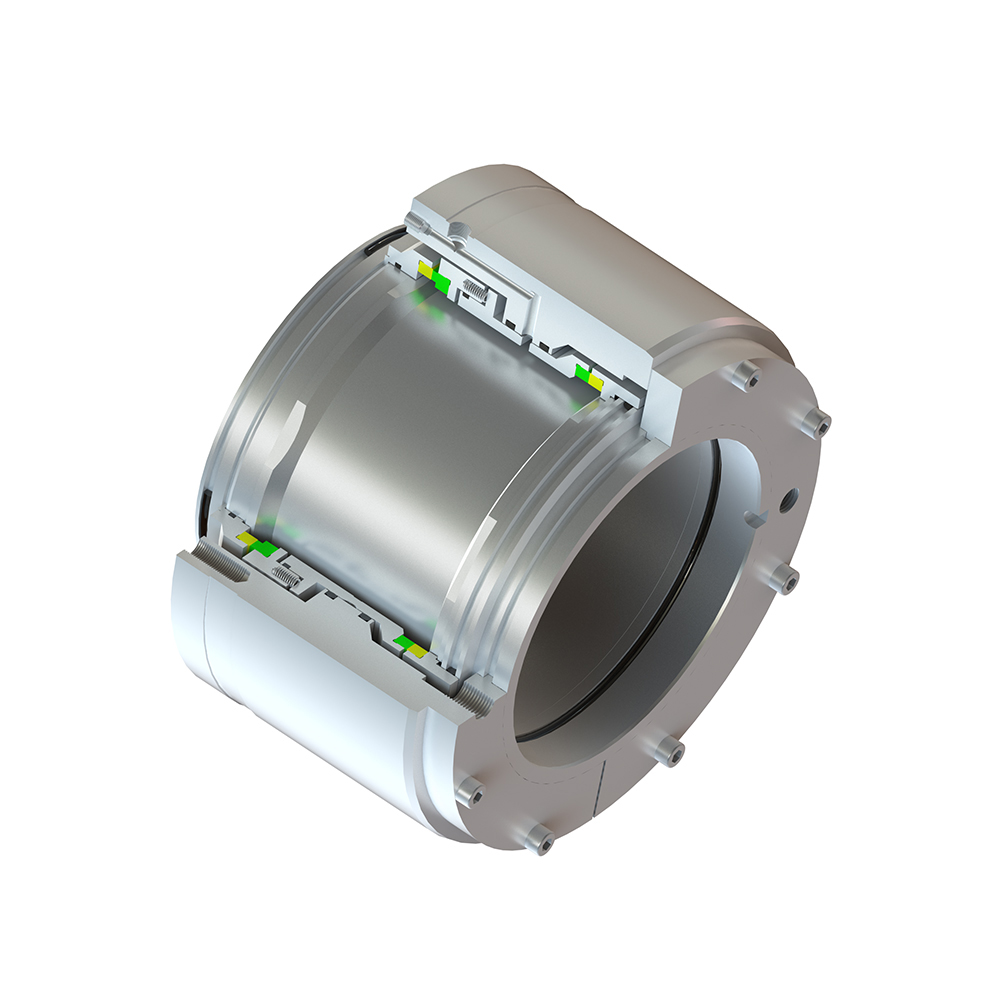

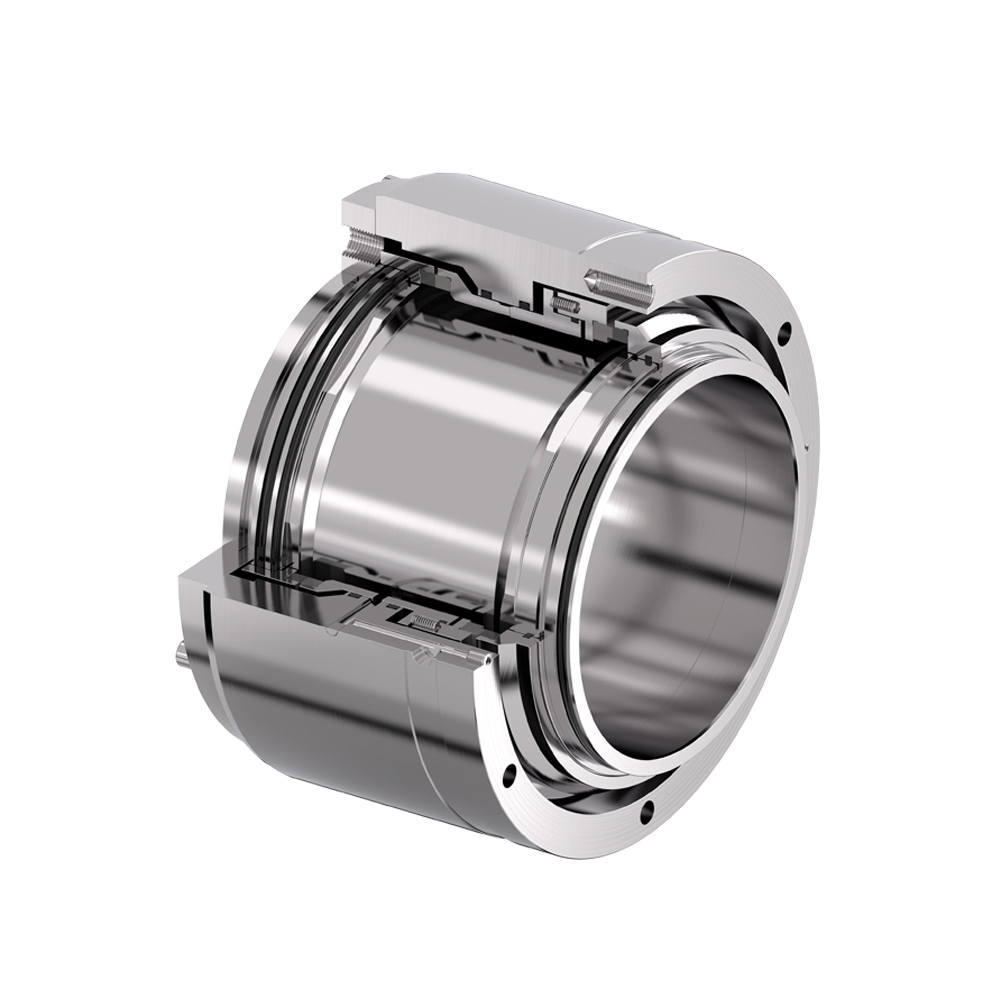

Product Description
Key Features
Stationary Pusher Seal, balanced design.
Double seal with multi spring structure, the spring is placed in the atmosphereand does not come into contact with the medium or buffer solution, greatly reducing the risk of spring failure and improving the sealing life.
Larger buffer chamber flushing space, bidirectional flow design, more significant cooling effect.
Suitable for Plan 52.53A.54.55.
Models of JC01,JC02,JC03,JC04.
Specifications
| Key word | 2295 Mechanical Seal | |
| Operation Parameters | Temperature | 356°F/180°C max |
| Seal water pressure | 220 psig/15 barg | |
| Speed | 4.000 fpm/20 m·s-1 max | |
| Seal Face | SiC/SiC (product side) SiC/Carbon (atmosphere side) | |
| Metals | Standard material AlSl 329/AlSl 316 (Titanium, Alloy 20) | |
| Springs | Nimonic | |
