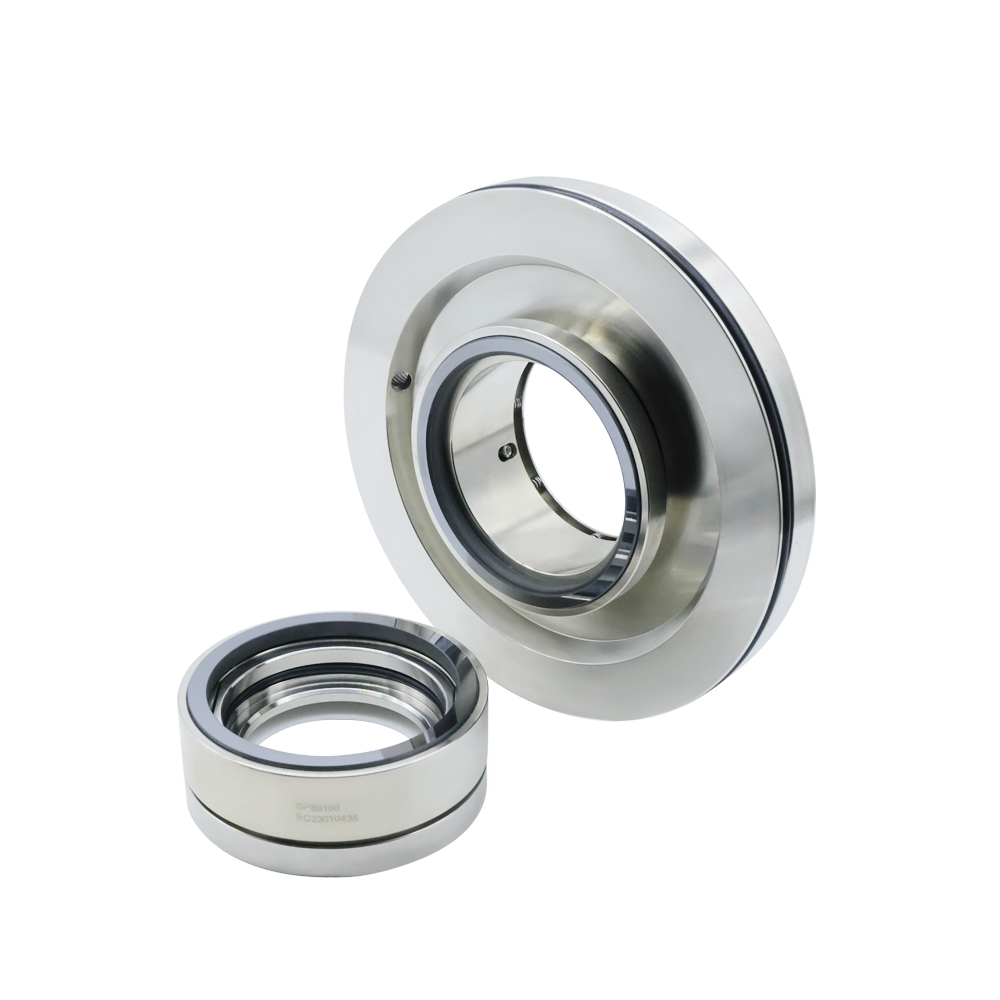

Product Description
TECHNICAL FEATURES
•Stationary compensating seal end face with balanced design, ensuring stable operation even under pressure fluctuations.
•Multi-spring compensation structure: the spring is not used for stationary ring positioning, delivering stable spring compensation performance.
•Modular design with standardized universal components, facilitating reduced maintenance costs.
•The spring is not in contact with the medium, ensuring a long service life of the mechanical seal.
•Positioned by the shaft shoulder for easy installation, which reduces the risk of human error. No measurement is required during installation.
•Inlaid ring surface structure: the seal ring has no drive pin, avoiding seal face rupture during startup.
•Seal installation does not require removing the backplate; the seal is fixed with a single bolt to ensure fast and trouble-free installation.
PRODUCT DESCRIPTION
Dimensions Compliant with Andritz ACP Pumps, Covering Shaft Diameters Including 33,43,53,60,70,85,115.
TYPICAL INDUSTRIAL APPLICATIONS
The 2233 Series is a mechanical seal specifically designed for clean and lubricating fluids, such as water, various types of oils, solvents, and raw materials [consistency < 2%]. It is typically used in pumps of paper mills, cardboard mills, and power plants. This seal is exclusively engineered for Andritz's ACP Series pumps.
Table Description
Recommended Piping Plans
| Process side | 01, 02, 03, 11, 12, 13, 21, 22 | |
Performance Capabilities
| Pressure | ≤ 15 bar | |
| Temperature | -20 ° C ~+ 120 °C | |
| Sliding velocity | ≤ 20 m/s | |
| Material Options | 316SS, Duplex Steel, etc. | |
| Suitable Media | Water, various types of oils,solvents, pulp, and other media | |

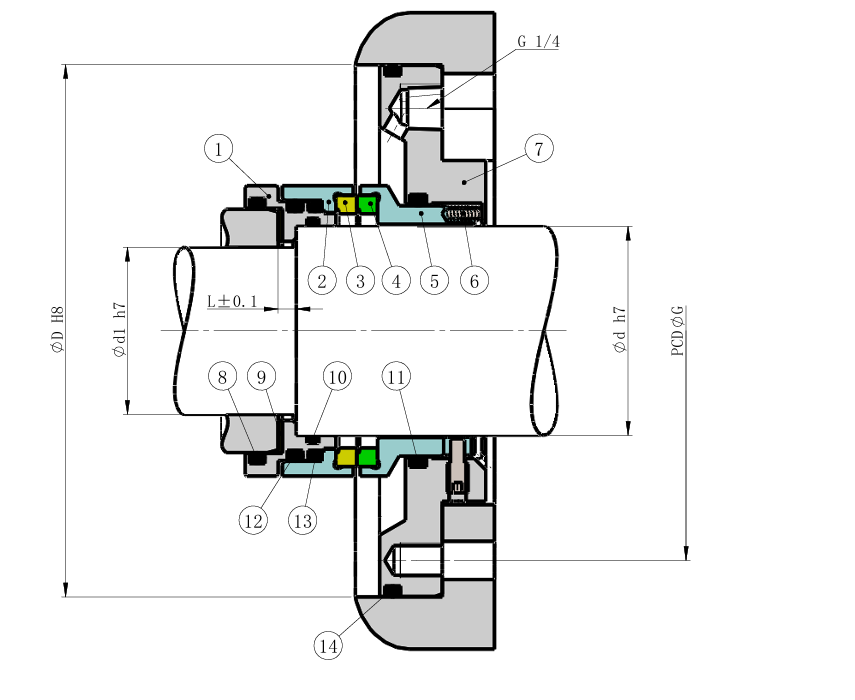

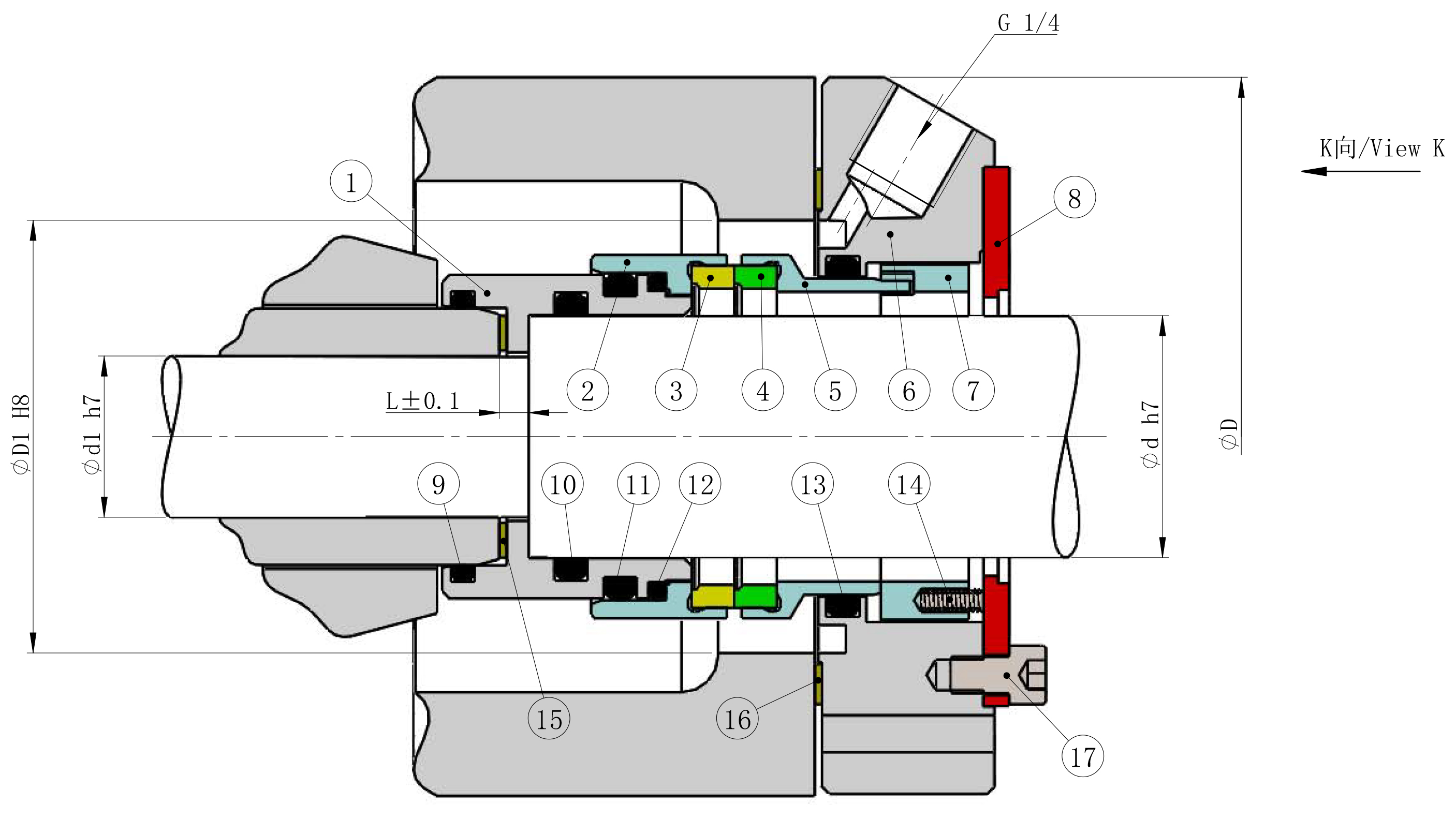

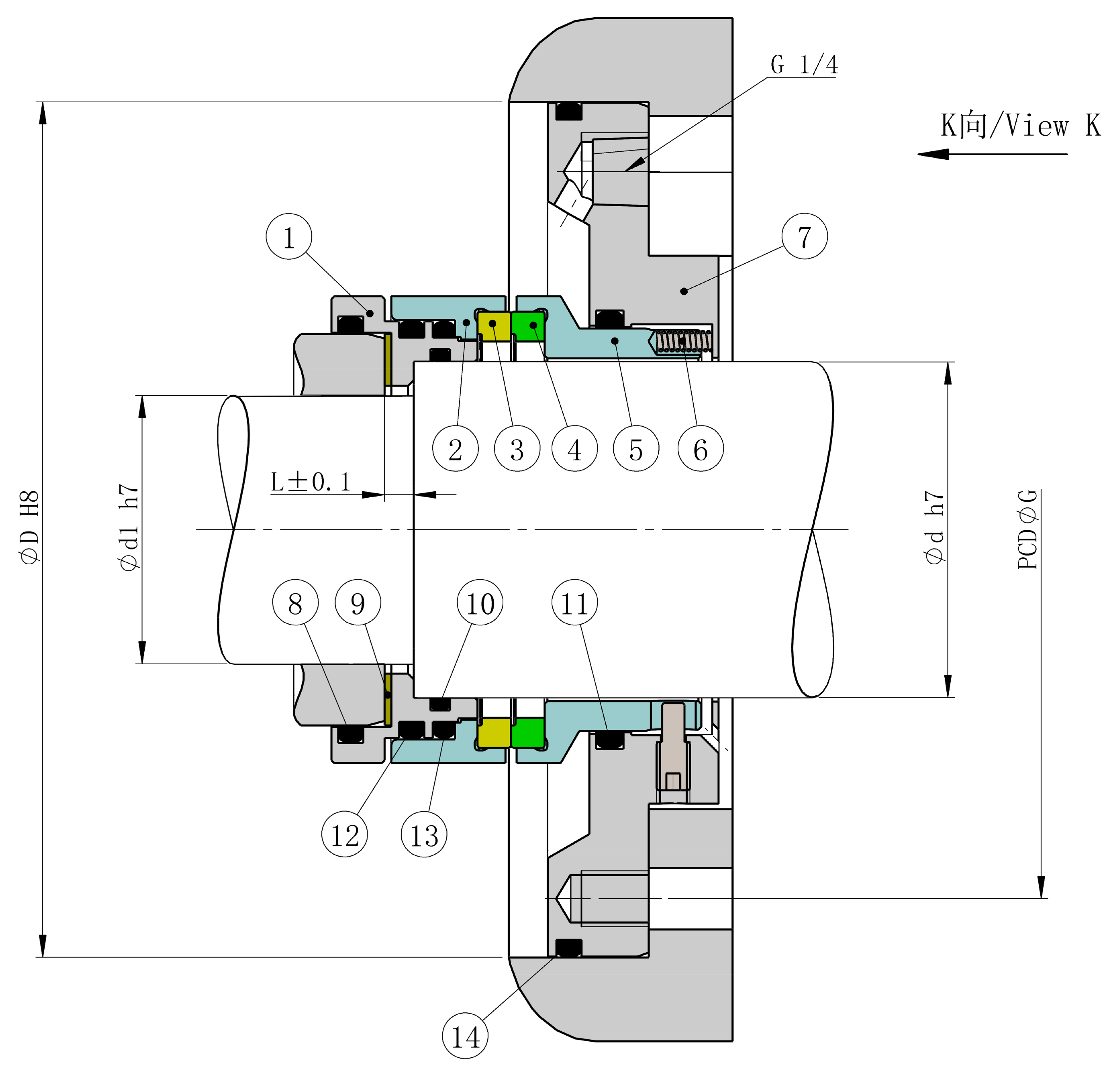

Product Structure Diagram & The comparison chart of standard material
| NO. | Name | Material |
| 1 | Limit Sleeve | 316SS |
| 2 | Rotating Seat | 316SS |
| 3 | Rotary Face | SSIC/RBSIC |
| 4 | Stationary Face | SSIC/RBSIC |
| 5 | Stationary Seat | 316SS |
| 6 | Gland | 316SS |
| 7 | Spring Plate | 316SS |
| 8 | Spring Plate | 316SS |
| 9,10,11 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 12,13 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 14 | Spring | 316SS |
| 15 | Gasket | PTFE |
| 16 | Gasket | AF1 |
| 17 | Clip Screw | 316SS |
| NO. | Name | Material |
| 1 | Limit Sleeve | 316SS |
| 2 | Rotating Seat | 316SS |
| 3 | Rotary Face | SSIC/RBSIC |
| 4 | Stationary Face | SSIC/RBSIC |
| 5 | Stationary Seat | 316SS |
| 6 | Spring | 316SS |
| 7 | Gland | 316SS |
| 8 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 9 | Gasket | PTFE |
| 10 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 11 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 12 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 13 | O-Ring | EPR/Viton/Aflas/Kalrez |
| 14 | O-Ring | EPR/Viton/Aflas/Kalrez |
