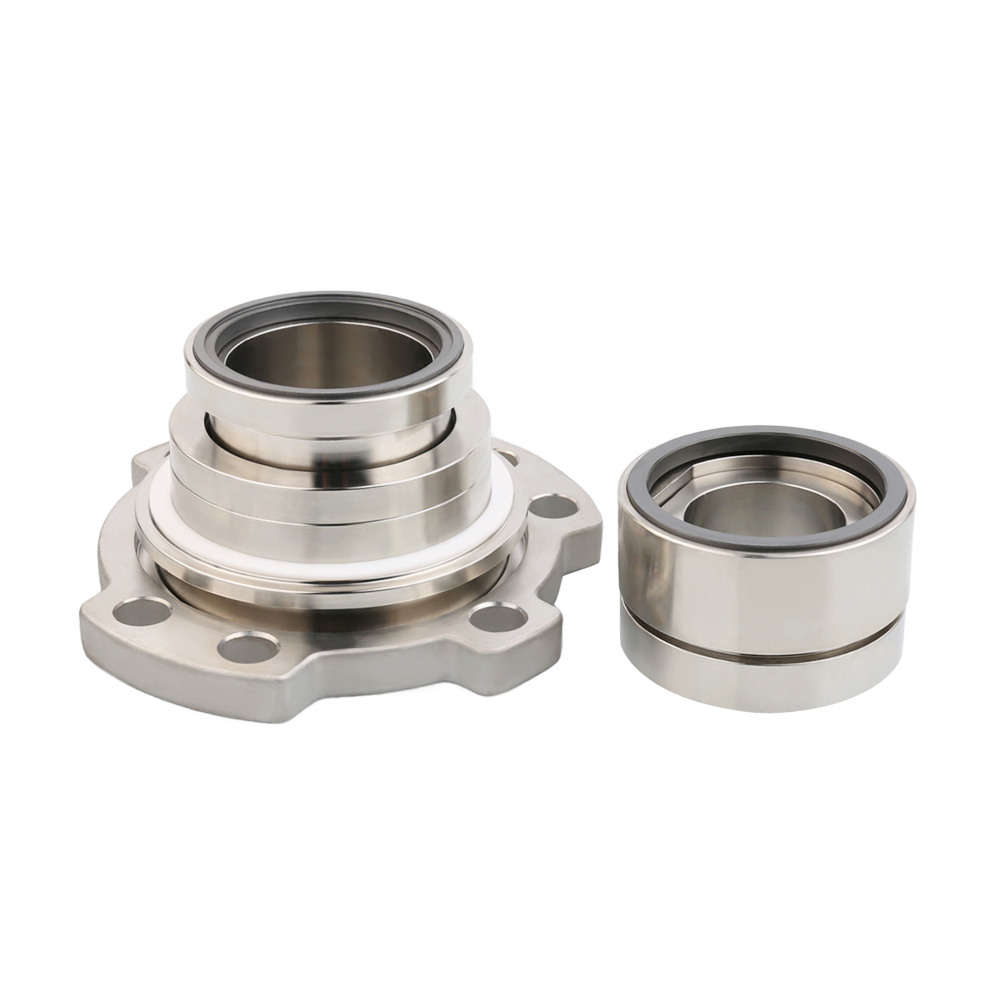

Product Description
The 2210 series is a special seal designed specifically for cleaning and lubricating fluids, such as water, different types of oils, solvents, and raw materials [viscosity<2%]. It is commonly used in pumps in paper mills, cardboard mills, and power plants. It is specifically designed for the Sulzer® APP and APT series pumps.
Key Features
● Balanced design - undisturbed operation even with sudden pressure shocks.
● Spring located in the stationary body of the seal - shaft misalignment does not pump up the spring or wear out the O-ring.
● Installation against the shaft shoulder - easy installation reduces risk of human error. No measurements required for installation.
● Modular design, suitable for general working conditions, without flushing holes.
● Sealing ring flushing requires the use of flushing holes on the Sulzer® pump cover, which can be used for Plan 1, 2, 11, 12, 13, 21, 22
● Dimensions comply with Sulzer® App pumps, including shaft diameters of 30, 40, 50, 60, 80, 90, etc.
● Suitable for Sulzer® APP chamber
● Can replace SE1.
Specifications
| Key word | 2210 Mechanical Seal | |
| Operation Parameters | Temperature | 40ºC~300ºC |
| Pressure | ≤25 Bar | |
| Linear Speed | ≤ 25 m/s | |
| Sealing product | Acid, alkaline, low percentage of pulp, water, oil and other similar media | |
| Materials | Seal Face | Carbon,SiC, SSiC, TC |
| Rubber | EPDM, FKM,FFKM,Chemraz | |
| Springs | Nimonic steel | |
| Metal Parts | AISI 329 (standard), titanium, UHB | |

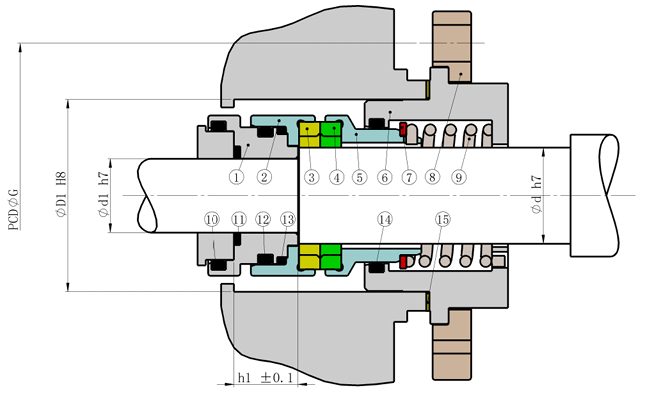

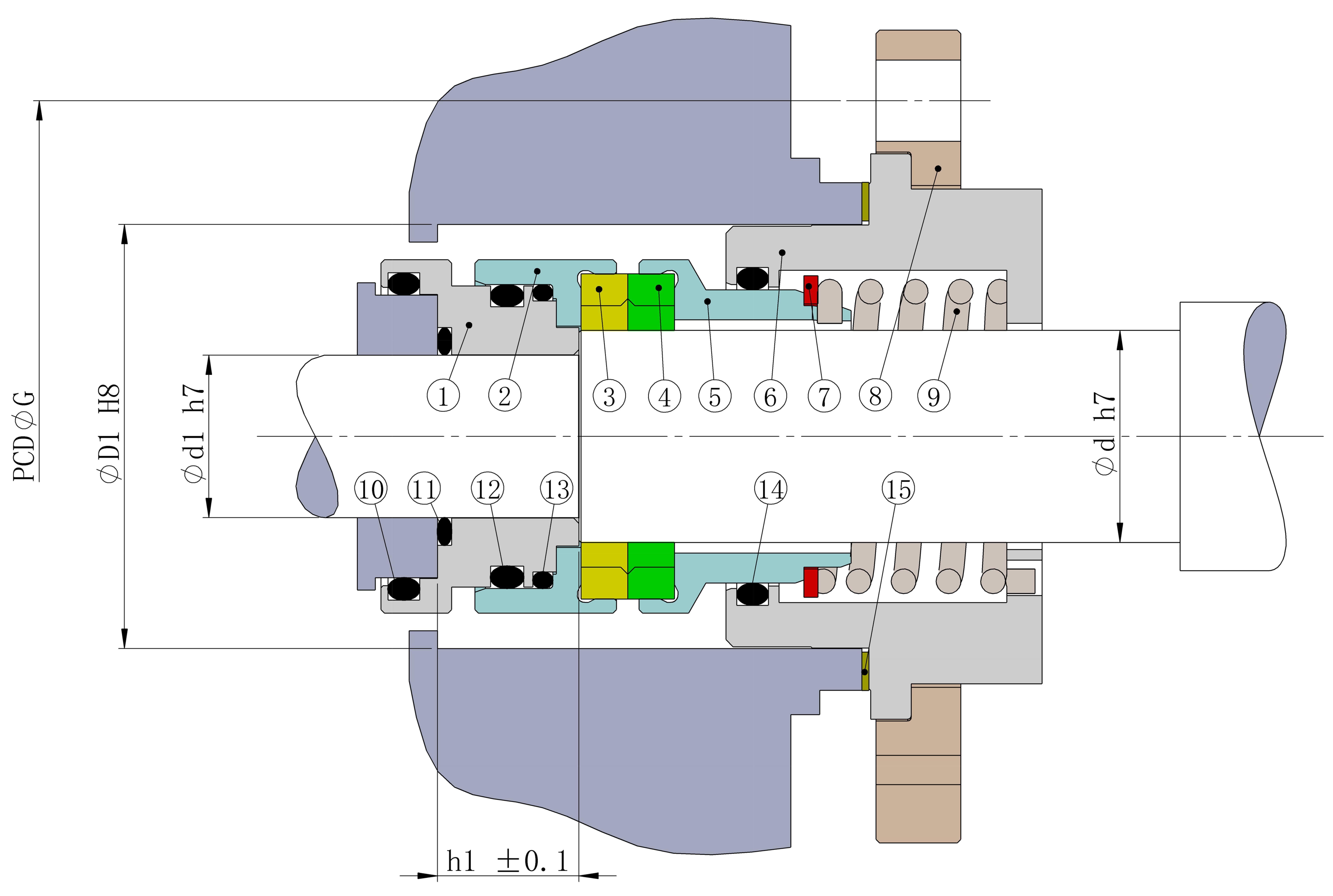

Assembly Chart
