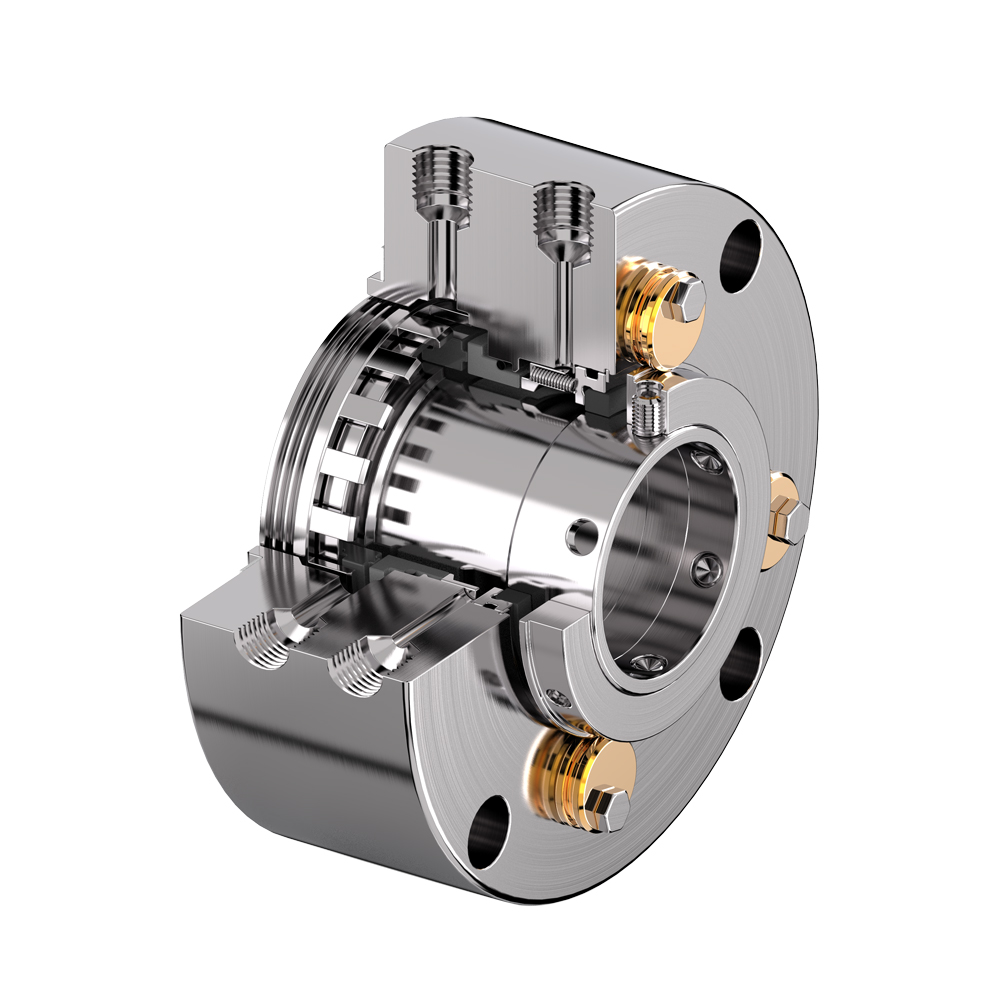

1CW-FX API682 Cartridge Mechanical Seal APOG23-FXP for Oil and Gas Pump

Single Cartridge Seal for API610 to suit Oil, Gas & Petrochemical Industies
Availability:

Product Description


    Key Features

• The sealing configuration is 1CW-FX, Contacting single wet seal with a fixed throttle bushing.
• Balanced integral ring design can better resist pressure fluctuations in the sealing chamber.
• Stationary pusher cartridge seal design.

• Efficient pump efficiency ring design for better circulation effect.

• Maze shaped throttling design provides better isolation from high-temperature media.

• Combined with the 23 scheme heat exchanger, the maximum medium temperature can reach 260 ℃.

• Equipped with Quench and Drain environmental ports.

• Robust sealing rings, shaft sleeves, and other components.
Used for API Plan 23.


    Specifications


Operation Parameters
Temperature -20°C~ +200°C
Pressure ≤40Bar
Linear Speed ≤30m/s
Sealing product Petrochemical, Oil ,Gas, water, oil, and other similar media


Materials
Seal Face SSIC/TC/CARBON
Rubber EPDM/ FKM /Aflas® / Kalrez®
Springs ALLOY 276
Metal Parts 316SS/DUPLEX/ALLOY 276/904L

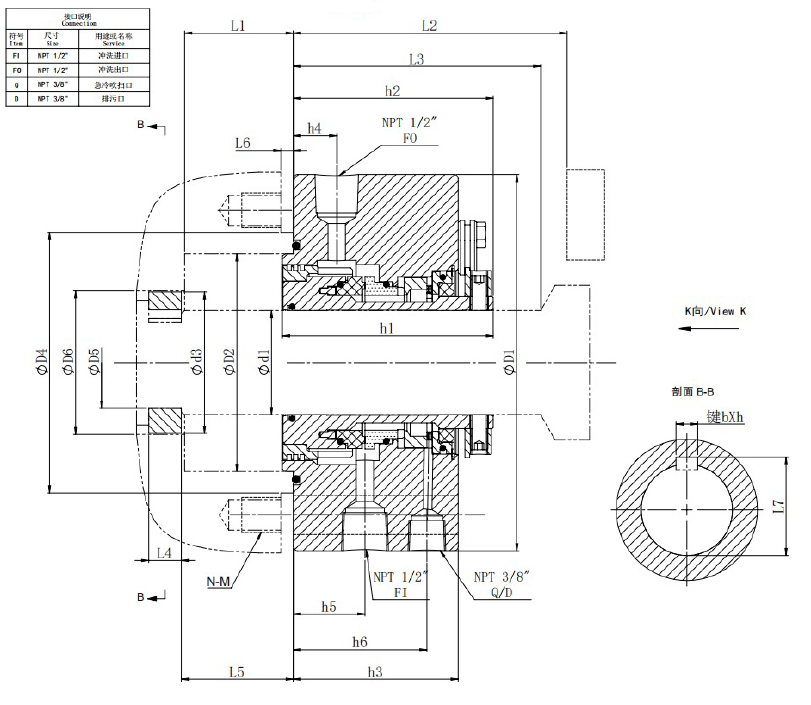

    Assembly Chart


APOG23-FX


    Downloads

APOG23-FX.pdf
