1CW-FL API682 Cartridge Mechanical Seal APOG-FLP for Oil and Gas Pump

Single Cartridge Seal for API610 to suit Oil, Gas & Petrochemical Industies
Availability:

Product Description


    Key Features

• Innovative distributed flushing design, which uniformly cools the annular surface while flushing away particles accumulated in the annular surface.
• Equipped with uniformly distributed flushing guide rings, which can evenly cool the friction surface.
Used for API Plan 11/21/31/32/41/61/62.


        Specifications

    Key word APOG-FLP Mechanical Seal
    Materials Seal Face SSIC/TC/CARBON
    Rubber EPDM/ FKM /Aflas®/ Kalrez®
    Springs ALLOY 276
    Metal Parts 316SS/DUPLEX/ALLOY 276/904L
    Components Static ring and dynamic ring Installed on fixed equipment components and rotating shafts
    Spring and pressure plate Provide pressure to ensure tight contact between the static ring and dynamic ring for effective sealing.
    Sealing surface lubrication To reduce friction and heat
    Operation Parameters Temperature -20°C to +200°C
    Pressure ≤40Bar
    Linear Speed ≤30m/s
    Sealing product Petrochemical, Oil ,Gas, water, oil, and other similar media

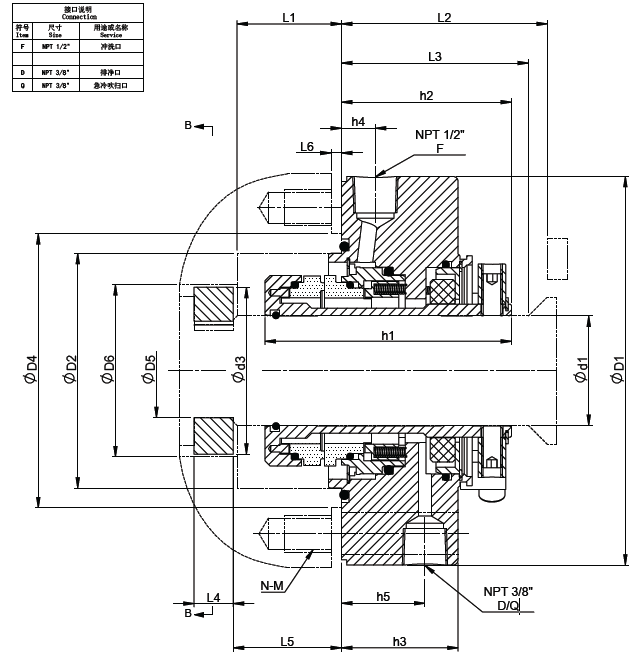

        Assembly Chart

    APOG-FLP

        Downloads

    APOG-FLP 图纸.pdf
